How the High Lift Pallet Truck Optimizes Ergonomics and Efficiency in Modern Material Handling？

2026-06-25 0 Leave me a message

In high-throughput logistics, manufacturing, and warehousing environments, shifting materials efficiently across the floor is only half the battle. Workers frequently face the strain of bending down to lift goods from standard pallets or reaching up to load production lines. While traditional manual pallet jacks excel at flat transportation, they offer zero vertical assistance. Conversely, full-scale stackers and forklifts can be too bulky and costly for localized tasks. This technical article explores how the High Lift Pallet Truck engineered by Shengyu balances horizontal transport with vertical scissor-lift capabilities.

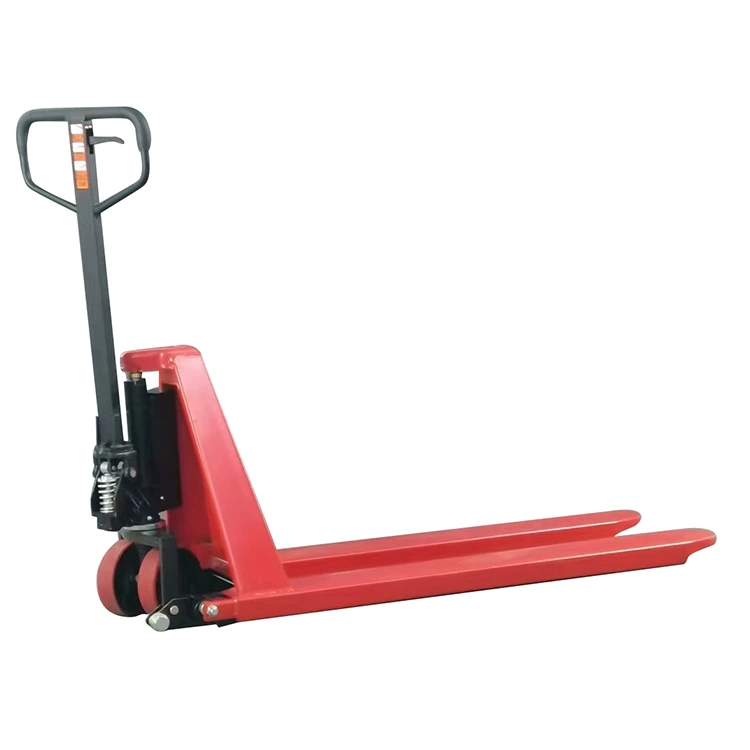

High Lift Pallet Truck

1. The Ergonomic and Operational Gaps in Traditional Pallet Moving

In low-to-medium throughput facilities, ground-level horizontal material transport has long relied on standard hand pallet jacks. These units are affordable, highly maneuverable, and require no battery charging infrastructure. However, their structural limits become obvious the moment a payload needs to be lifted higher than a few inches off the floor.

When operators are tasked with manually unloading components onto a conveyor belt, feeding raw materials into production lines, or organizing inventory on mid-tier retail shelves, they are forced into a repetitive cycle of bending, lifting, and twisting. This long-term repetitive physical strain cuts down overall operational productivity, and greatly increases the risk of occupational musculoskeletal injuries for frontline warehouse workers.

The Shengyu High Lift Pallet Truck bridges this critical operational gap perfectly. Combining the flexible mobile advantage of ordinary manual pallet jacks and the vertical lifting function of adjustable lift tables, this integrated handling equipment allows operators to lift heavy palletized loads to an ergonomic working height up to 800 mm. This core design eliminates unnecessary manual lifting movements, turning labor-intensive loading and unloading work into efficient and low-fatigue daily operations.

2. Mechanical Architecture: The Scissor-Mechanism Matrix

The overall outer frame of the High Lift Pallet Truck keeps the compact and flexible structure of traditional pallet jacks, while its core vertical lifting performance depends on the heavy-duty integrated scissor lifting assembly installed under the cargo forks.

• Reinforced Steel Chassis & Forks: The whole chassis and cargo forks are welded by high-tensile structural steel, which can withstand long-term alternating vertical impact pressure without chassis torsion, fork bending or structural deformation. Two mainstream fork widths including 550mm and 685mm are available to match global standard and narrow customized pallets.

• Dual Scissor Support Assembly: Driven by hydraulic power, the cross scissor support legs expand vertically stably. The symmetrical mechanical structure keeps the cargo gravity center always vertical and balanced during the whole lifting process, avoiding cargo tilting and shifting caused by unbalanced stress.

• Automatic Anti-Tip Stabilizers: High-height lifting brings potential tipping risks. Once the fork lifting height reaches 420mm, the built-in automatic stabilizers will extend outwards and lock tightly with the ground synchronously. The locked support legs fix the whole equipment firmly on the ground, achieving reliable mechanical braking and completely preventing rollover or sliding accidents during high-position operation.

3. Hydraulic Intelligence: Dual-Stage Lifting and Descent Regulators

The stability and labor-saving performance of scissor lift pallet trucks are mainly determined by the built-in hydraulic control system. Different from ordinary single-speed hydraulic cylinders on the market, Shengyu High Lift Pallet Trucks adopt dual-stage intelligent hydraulic valve sets to realize adaptive lifting and constant-speed descending.

Adaptive Quick-Lift Hydraulic Valve

The hydraulic system supports automatic load sensing switching. When the load is less than 150kg (empty truck or light cargo), the system activates quick-lift mode, which shortens hydraulic stroke and reduces manual pumping times, greatly improving no-load handling efficiency. When the cargo weight exceeds 150kg, the system automatically switches to high-pressure stable lifting mode, increasing hydraulic output torque. Operators can lift the maximum 1500kg heavy load effortlessly without extra physical strength.

Constant-Speed Controlled Descent System

Sudden rapid descent of heavy loads will lead to cargo damage, equipment impact and on-site safety hazards. Equipped with pressure-compensated constant-speed descent valves, the hydraulic system can automatically adjust oil flow according to real-time load changes. Whether the pallet truck is empty or fully loaded with 1500kg cargo, the forks maintain a steady and uniform descending speed, realizing safe and shock-free cargo landing.

4. Technical Specifications and Model Engineering Configurations

Shengyu launches two mainstream models of SLP15 series High Lift Pallet Trucks to adapt to different warehouse aisle widths and pallet specifications. All products comply with European safety standards, with unified load capacity and lifting height, and differentiated fork size design. The detailed parameter comparison is shown in the table below.

Product Parameter Blueprint

Engineering Performance Metric	Model SLP15-550 Configuration	Model SLP15-685 Configuration
Rated Load Capacity Maximum	1500 kg (Auto-regulating threshold)	1500 kg (Auto-regulating threshold)
Overall Structural Width	550 mm (Ideal for narrow pallets)	685 mm (Optimized for standard pallets)
Nominal Fork Length	1100 mm baseline length	1200 mm baseline length
Minimum Lowered Fork Height	85 mm ground-clearance entry	85 mm ground-clearance entry
Maximum Hydraulic Lift Height	800 mm full vertical extension	800 mm full vertical extension
Net Equipment Dead Weight	120 kg total mass	125 kg total mass
Chassis Boundary Dimensions	1520 mm × 550 mm × 1200 mm	1520 mm × 685 mm × 1200 mm
Quick-Lift Trigger Threshold	150 kg internal pressure shift	150 kg internal pressure shift
Stabilizer Deployment Height	420 mm automatic floor lock	420 mm automatic floor lock
Certification Compliances	Verified under TUV CE and GS criteria	Verified under TUV CE and GS criteria

5. Multi-Scenario Industrial and Retail Applications

Integrating horizontal cargo transportation and fixed-height vertical lifting functions, Shengyu High Lift Pallet Trucks cover most medium and light-duty intralogistics scenarios, filling the gap between manual pallet jacks and large forklifts perfectly. Core applicable scenarios are listed as follows:

• Assembly Line Component Feeding: The pallet truck can be pushed to fixed workstations flexibly, and the cargo height can be adjusted to match assembly line tables. Workers can directly slide materials without bending or lifting manually, improving assembly efficiency and reducing labor injuries.

• Warehouse Mid-Tier Shelf Stacking: It supports safe stacking and sorting of goods within 800mm shelf height. Warehouses do not need to start large forklifts for small-batch inventory sorting, cutting equipment use cost and aisle occupancy.

• Delivery Truck Loading & Unloading: It cooperates with container trucks and logistics vans to realize height matching between truck carriage and ground, realizing efficient and damage-free loading and unloading of palletized goods.

• Retail Stockroom Replenishment: With compact overall size and flexible steering performance, it adapts to narrow retail store aisles. Staff can complete shelf replenishment directly without occupying customer passages.

• Logistics Material Sorting Buffers: Used as mobile lifting buffer stations in logistics sorting centers, realizing unified height adjustment for cargo sorting and transfer.

6. Preventative Maintenance and Longevity Management Guidelines

Though all pallet trucks adopt heavy-duty wear-resistant steel and industrial-grade hydraulic components, standardized regular maintenance can effectively prolong service life and keep daily operation safe and stable. We formulate targeted maintenance rules for global users:

• Hydraulic System Quarterly Inspection: Check hydraulic oil level and cylinder sealing condition every 3 months. Only dedicated anti-wear hydraulic oil is allowed for replacement; timely replace aging sealing rings once oil leakage occurs to avoid pressure loss and lifting failure.

• Regular Lubrication for Scissor Pivots: Add heavy-duty lithium-based grease to all scissor mechanism pivot pins and bearings every month, reducing metal friction and ensuring smooth lifting and descending without stuck points.

• Weekly Stabilizer Function Test: Manually lift forks to 420mm every week to check whether stabilizers extend and lock in place normally. Keep brake pads clean without oil contamination to guarantee reliable anti-slip and anti-tip performance.

• Daily Wheel Debris Cleaning: Clean wrapping plastic films, packing belts and ground sundries on steering wheels and front rollers every day to prevent wheel jamming and partial tire wear.

7. Frequently Asked Questions (FAQ)

Is this manual High Lift Pallet Truck suitable for long-distance cargo transportation?

This equipment is designed for short-distance transfer and fixed-height lifting within workshops and warehouses. It focuses on lifting ergonomics rather than long-distance transportation. For long-distance cross-warehouse cargo handling, we recommend matching our standard manual pallet jacks together to form a complete handling solution.

Can the maximum lifting height be customized beyond 800mm?

The standard maximum lifting height is fixed at 800mm for safety stability. For special scenarios requiring higher lifting height, our engineering team can provide customized reinforced scissor structure solutions with higher load safety factor upon request.

Does the equipment need daily charging or external power supply?

This is a fully manual hydraulic pallet truck with no motor or battery equipped. It requires no charging, no external power supply and no later electricity cost, which is more cost-effective and suitable for explosion-proof workshops and warehouses with strict power management requirements.

What is the warranty policy for overseas bulk orders?

We provide 2-year whole-machine warranty and lifetime paid after-sales spare parts supply for all exported pallet trucks. Wearing parts such as hydraulic seals and walking wheels can be supplied at factory preferential prices to support long-term overseas customer operation.

Conclusion

With 20 years of professional lifting equipment manufacturing and export experience, Shengyu High Lift Pallet Truck have passed authoritative TUV CE and GS safety certifications, complying with EU unified safety standards. We support standard model bulk orders and non-standard OEM size customization, with stable production capacity and professional overseas after-sales service system. To get detailed product catalog, competitive bulk quotation and professional intralogistics equipment matching suggestions, contact us now.
