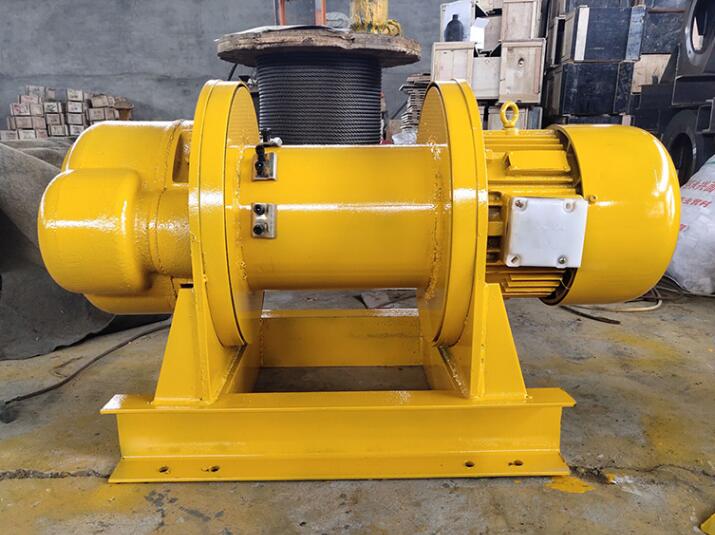

5T Electric Winch

The 5t electric winch features the same appearance and structure as the 1t, 2t and 3t models. The core differences fall into three categories: overall machine weight, matched motor power and rated lifting capacity. All units are designed for 380V industrial power supply, and explosion-proof customization is offered for the full product line.

Advantages of 5T Electric Winch

1.Rated 5-ton load capacity with powerful driving force and stable lifting performance, suitable for heavy-duty scenarios such as construction sites and mine shafts.

2.Designed for standard 380V industrial voltage with reasonably matched motor power, 5T Electric Winch features low operating noise and sensitive braking response.

3.Compact overall structure with uniform appearance across the whole series and well-balanced dead weight, enabling easy installation and relocation.

4.Explosion-proof customization available for special hazardous working conditions; wear-resistant drum prevents wire rope tangling, delivering long service life and low failure rate.

Technical Parameters of Electric Winch

Installation Method of Steel Wire Rope for Electric Winch

1.Inspect the steel wire rope of 5T Electric Winch before installation to eliminate damage including broken wires, rust and twists; remove burrs and debris from the drum grooves.

2.Embed the rope end into the drum pressing plate groove, install two or more sets of pressing plates and tighten bolts to firmly lock the rope terminal.

3.Wind the rope by rotating the drum at low speed to ensure the steel wire rope is closely arranged in layers, avoiding rope overlapping, extrusion and deviation.

4.Reserve more than three circles of steel wire rope as safety margin at the drum end to prevent rope end slippage and failure under load.

5.Thread the steel wire rope through the guide pulley and lifting hook, adopt no less than three rope clamps for uniform tightening and control the installation spacing properly.

6.Conduct no-load trial run after assembly to check rope jamming and abnormal noise faults, verify the sensitivity of brake and limit devices. Formal hoisting construction can only start after confirming uniform stress on the steel wire rope.

About Shengyu

Hebei Shengyu Lifting Machinery has mass production capacity for electric winches of multiple specifications. Relying on standardized mass production lines, we guarantee efficient supply and greatly shorten customers’ delivery lead time, so clients do not need to wait long for order scheduling and shipment.

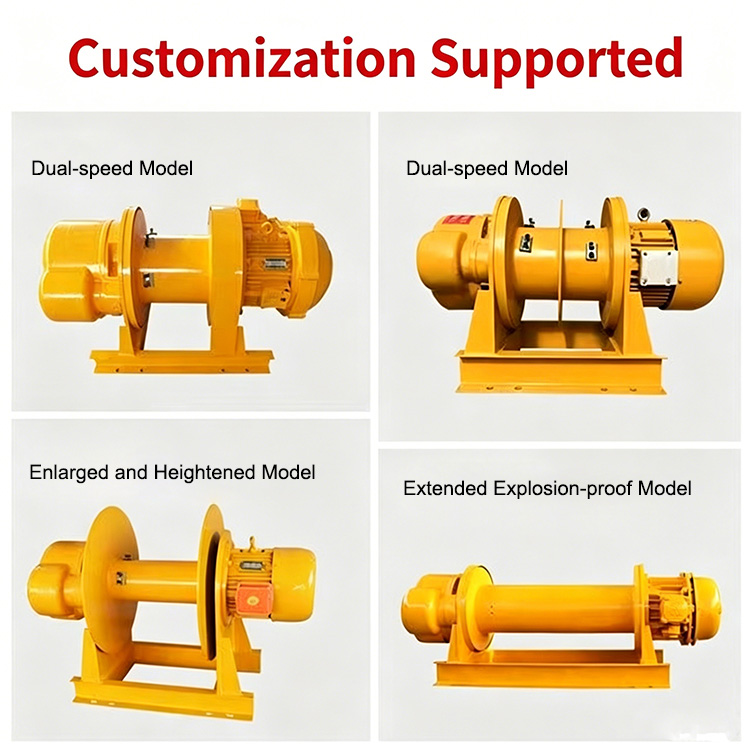

Custom non-standard solutions are available for our equipment. We can manufacture special models for various working conditions as required, including double-drum, multi-drum, two-speed variable and explosion-proof winches, to meet diverse demands of different hoisting construction operations.
