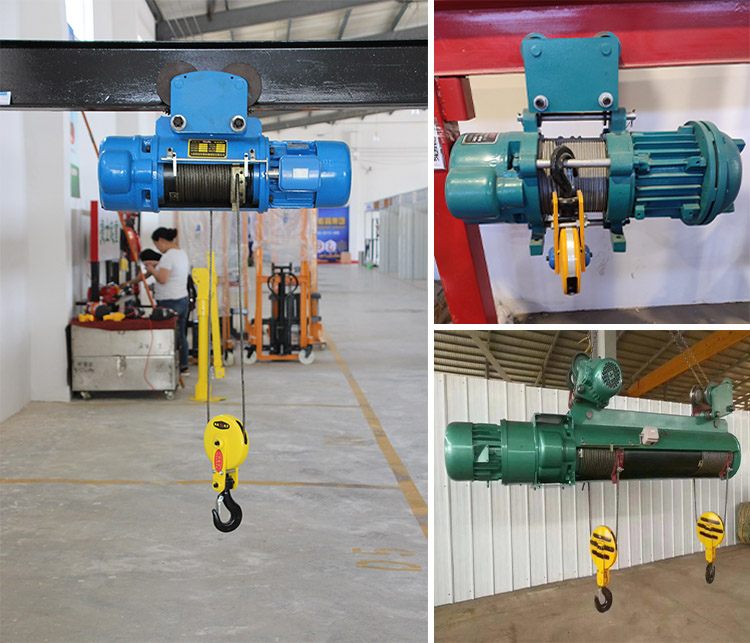

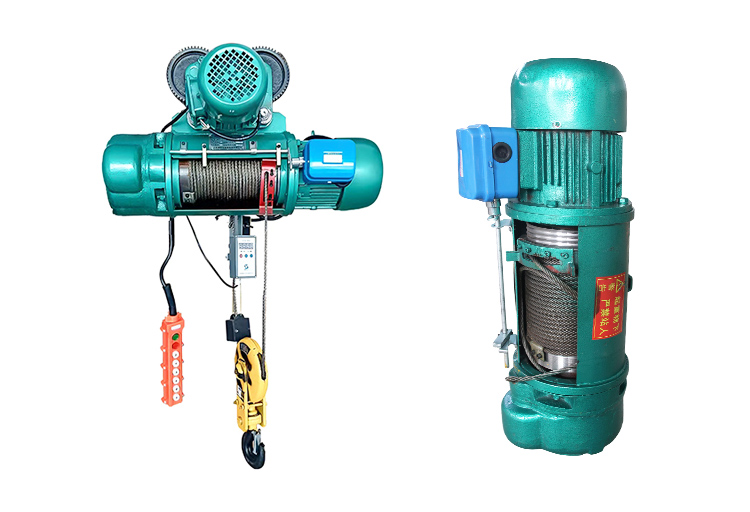

CD1 Electric Hoist

The main features of the CD1 electric hoist are its reasonable structure, small size, light weight, and simple operation. It can be installed in a fixed position or mounted on a trolley for use with single beam, bridge, gantry, or I-beam structures. The standard lifting speed of this hoist is 8m/min, but customization is also possible. Usually used at 380V 50HZ or 220V 60 HZ volage. It is a working class of M3 and is typically used in environments ranging from -20℃ to +40℃, with humidity ≤85% and altitude ≤1000m. For use in flammable, explosive, or corrosive environments, a custom-made explosion-proof version is required.

Advantages

1. The CD1 electric hoist operates in a single-speed mode., simple structure, few malfunctions, easy maintenance, suitable for routine hoisting.

2. Selectable tonnage and lifting height, customizable, smooth operation, impact resistant, and long service life.

3. Power-off self-locking for enhanced safety and reliability.

4. High versatility: Can be used for personal purposes or with I-beams for trolleys, offering flexible installation.

5. Easy maintenance: All components are interchangeable and easy to replace.

Product parameters

Installation and Usage Instructions

1. Careful Inspection Before Installation:

The CD1 electric hoist and accessories should be complete and in good condition. The I-beam should be level.

The distance between the wheel flange and the rail should be 3-5mm.

The power supply should be three-phase 380V.

2.Installation Steps (Taking a trolley-type hoist as an example): Remove one of the traveling wheels, place the hoist in the appropriate position on the rail, and re-tighten the wheel bolts. Adjust the wheel flange gap to 3-5mm. Ensure the upper limit distance is ≥50mm from the coil, and leave ≥2 turns of safety rope at the lower limit. After installation, conduct 2-3 no-load tests.

Operation and Use:

Overloading, oblique pulling, and personnel standing under the CD1 electric hoist are strictly prohibited. Start and stop smoothly and evenly.

Packaging: Wooden crates or cardboard boxes lined with foam and waterproof membrane to prevent moisture and damage during transportation.

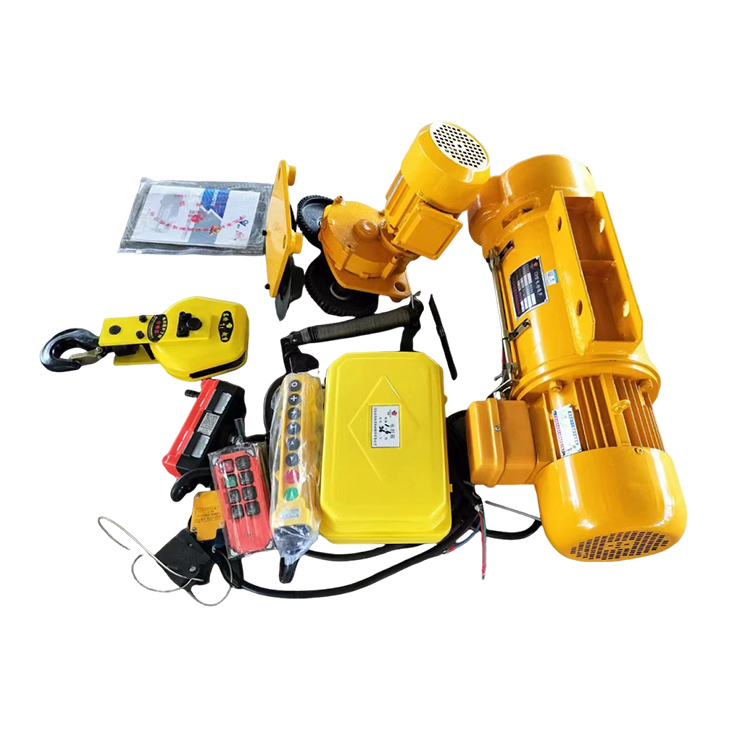

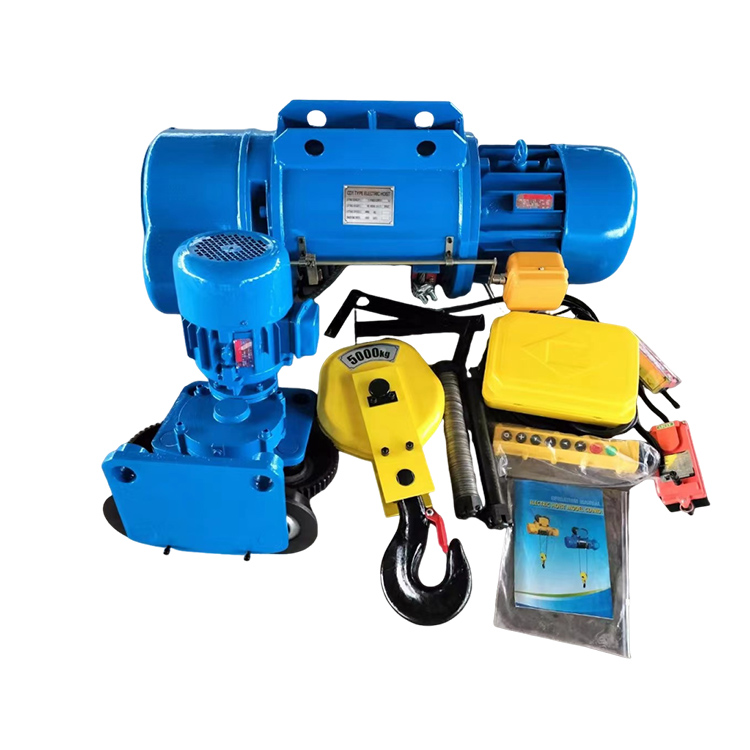

Each hoist comes with an instruction manual, certificate of conformity, etc.

Custom labels and logos can be customized according to customer needs.
