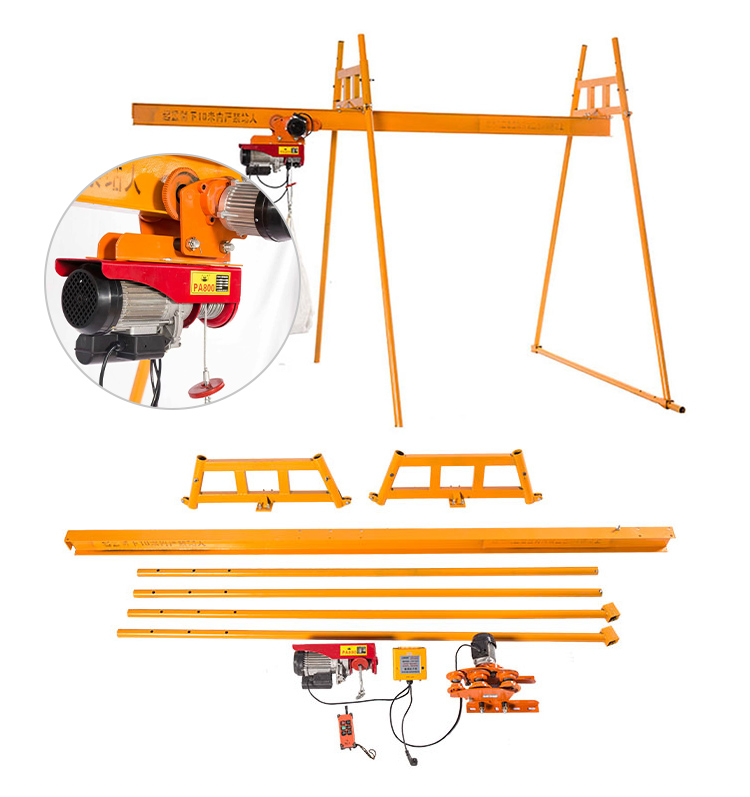

Straight Slide Feeding Crane

Product Details

Stable structure: The frame design provides a solid overall structure and ensures basic stability for the equipment.

Height adjustment hole: The machine body is equipped with a height adjustment hole, which can flexibly adjust the height of the equipment according to the working scenario and adapt to the needs of different floors.

Tight fasteners: High-specification bolts and fasteners are used to ensure tight connections between components, improving the equipment's load-bearing capacity and anti-shaking ability.

Pipe insertion position (counterweight pipe to be provided by user): Reserved pipe insertion position to facilitate user to add counterweight pipes themselves, ensuring balance and safety during equipment operation.

Thickened I-beam rails: The straight slide feeding crane uses thickened I-beam rails, which make the straight-slide operation more stable, wear-resistant and deformation-resistant, and extend the service life of the equipment.

Robust and stable: Key parts are reinforced with welding and strengthening design, making the whole machine structurally robust and ensuring safe and reliable hoisting operations.

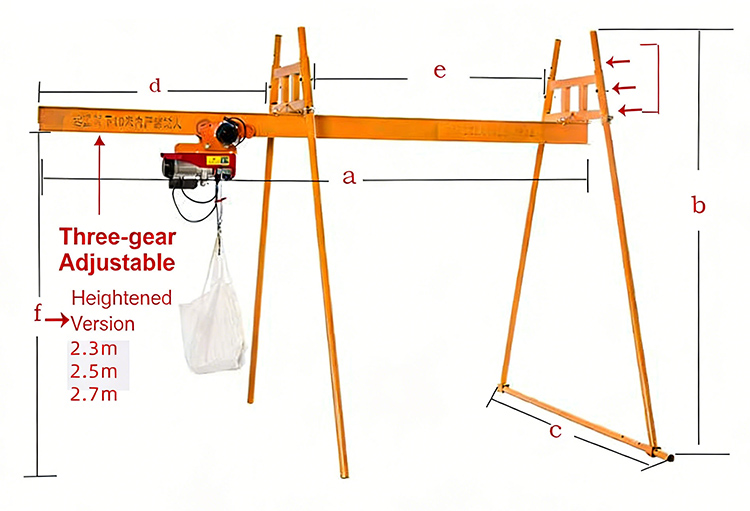

Outdoor Four-Post Hanging Rail Hoist(Electric Heightened Version Dimensions)

Pre-operation inspection of the straight slide feeding crane: Check the overall structure, fasteners, wire ropes and pulleys to ensure they are intact and free from any looseness, wear or breakage.

Counterweight installation: Add counterweight pipes (provided by the user) at the pipe penetration points on the columns to ensure the stability of the equipment's center of gravity and prevent tipping.

Power connection: Connect to 220V power supply, check that the wiring connection is secure, and confirm that the emergency stop switch is functioning properly.

No-load test run: Operate the lifting and horizontal sliding functions under no-load conditions to test whether the motor, carriage, and braking system are stable and free of abnormal noise.

Cargo securing: Evenly and securely bind the cargo to be hoisted, with the hook attachment point centered, avoiding unbalanced loading or oblique hoisting.

Lifting operation: Using a remote control/wired switch, first control the smooth lifting of the goods, and then slide them horizontally along the I-beam rail to the target position.

Safety monitoring: Observe the operating status throughout the operation, overloading is strictly prohibited, and press the emergency stop button immediately if any abnormal noise or abnormality is detected.

Post-operation clean up: Return the equipment to its initial position, disconnect the main power supply, clean the site, and keep records of equipment cleaning and maintenance.

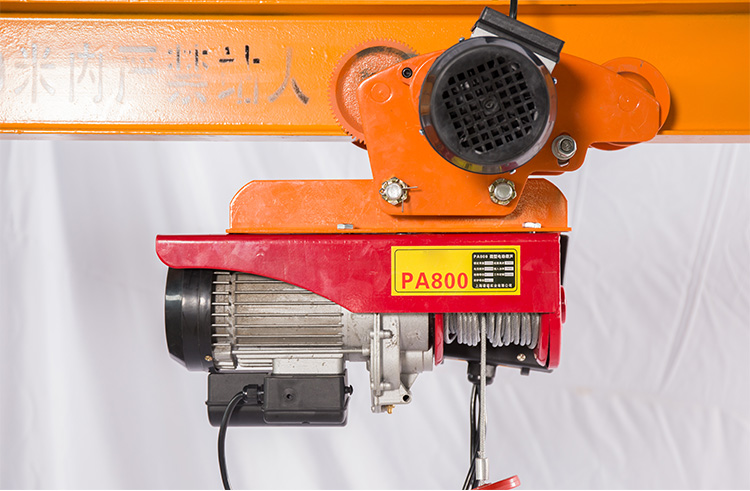

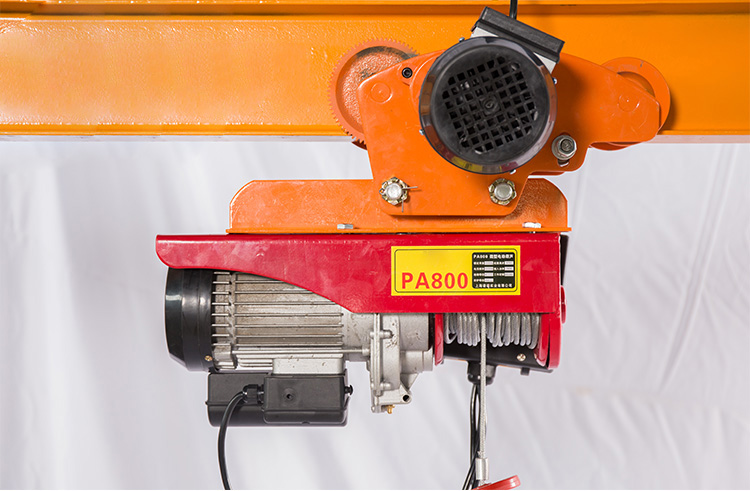

This straight slide feeding crane is equipped with a 220V mini electric hoist and an electric trolley, allowing it to move left and right on I-beams. It can be operated wired or wirelessly, and is simple and convenient to use. Hebei Baiyi Lifting Equipment Factory specializes in producing various cranes. For purchase or inquiries, please call our order hotline: 15133220087 (WeChat ID is the same), or email: kate@syhoist.com. Welcome to contact us!
