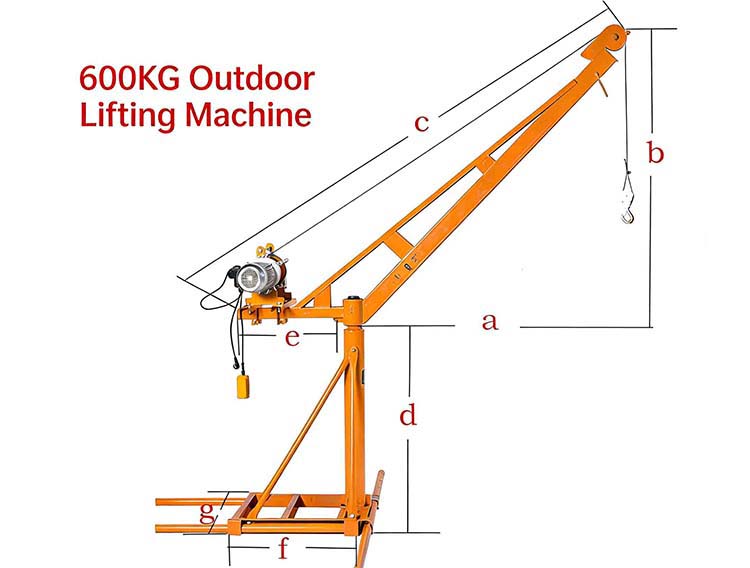

600 kg Outdoor Mini Crane

Core advantages

Adopting a dual pulley anti-skid design and dual bearings to ensure rotational stability;Thickening the base to achieve even weight distribution; 220V high-efficiency electric lifting system;Detachable bracket supports quick assembly by a single person; And a portable design that saves space.

Double pulley configuration:This 600 kg outdoor mini crane can enhance the load-bearing capacity, accurately fix the steel wire rope, and effectively prevent slipping,And enhance operational security.

Built in dual bearing structure:Significantly improve overall stability and durability,Realize 360 degree free rotation,The operation is smoother and more reliable.

Thickened and enlarged base:The counterweight block made of thickened steel is easy to install,Make the whole machine more stable and highly portable during the lifting process.

Efficient electric lifting system:Equipped with electric hoist and micro electric hoist,Compatible with 220V power supply,Efficient, safe, and controllable lifting operations can be achieved.

Detachable bracket design:It can be assembled by a single person,Small storage space occupation, convenient for transportation and storage.

Core Installation Process

The core installation process of 600 kg outdoor mini crane is extremely simple. The key steps include:Align the base, install an upright boom, add sufficient balance weights, and thread steel wire ropes.The entire installation process only requires 5 steps, as follows:

1. Select an installation location: Find a flat, hard cement or solid ground (avoid soft mud), away from potholes and power lines, and leave sufficient operating space.

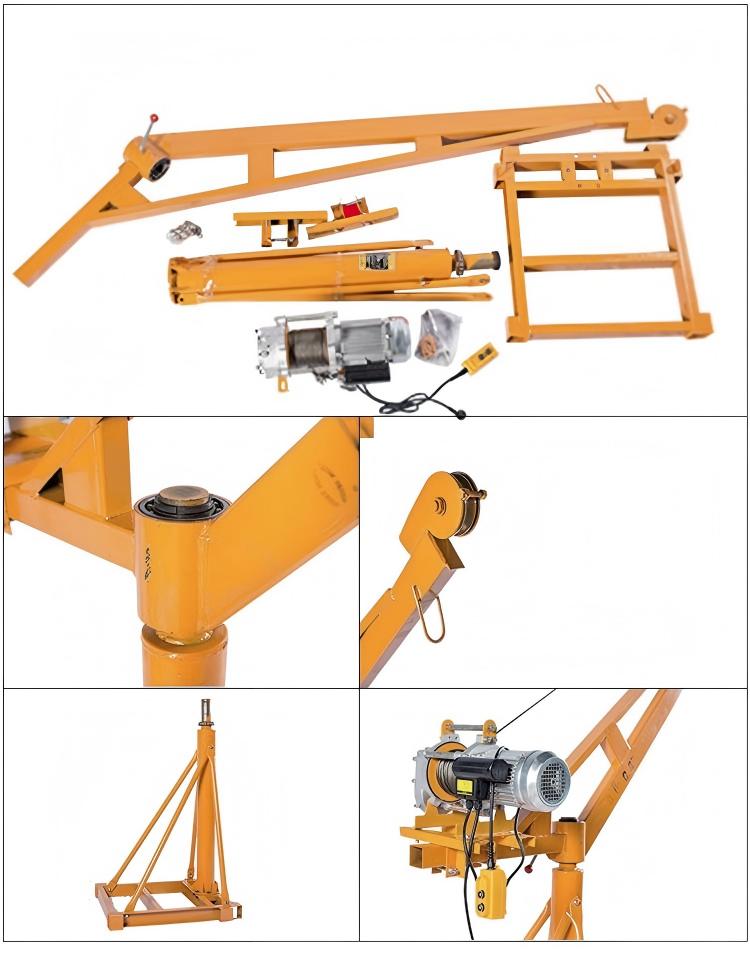

2. Install the base and column: Unfold the machine and place the base frame flat on the ground; vertically erect the column in the center of the base, aligning it with the holes, and tighten it with screws and bolts (for some models, the base and column are welded together, requiring no assembly).

3.Install the boom and connecting rod:Install the boom onto the flange and bearing at the top of the column; Connect the boom to the column through a connecting rod, and tighten the screws and pins to ensure fixation.

4. Install the motor and thread the wires:Fix the electric hoist onto the motor base at the end of the boom, align it with the preset hole position, and tighten the screw; Wiring operation: The steel wire rope is led out from the motor drum, passed through the top pulley and end pulley of the crane arm in sequence, and finally fixed at the hook connection point to ensure that the steel wire rope is not stuck and wrapped neatly.

5.Install counterweights and test equipment:Insert the counterweight block and counterweight tube into the counterweight hole of the base, turn on the power, and perform a no-load test: gently press the lifting button to check the motor operation status, the sensitivity of the upper and lower limit switches, and whether the boom rotation is smooth.After the installation of the 600kg outdoor micro crane is completed, a trial lifting is required: lift the heavy object (about half of the rated load) to a height of 10-20 centimeters above the ground, confirm that it runs smoothly without shaking or abnormal noise, and then put it into formal use.

Hebei Baiyi Lifting Equipment Factory produces reliable and easy-to-operate 600 kg outdoor mini crane. For product specifications, accurate quotes, installation guidance, or after-sales support, please feel free tocontact us.
