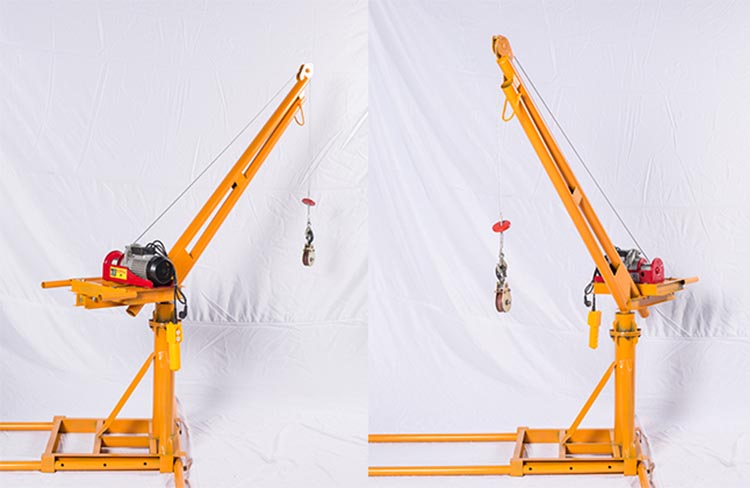

500 kg Construction Crane

Hebei Baiyi suggests that users consult with sales personnel before purchasing a 500 kg construction crane to understand the function and features of each component. This will ensure a more informed purchase.

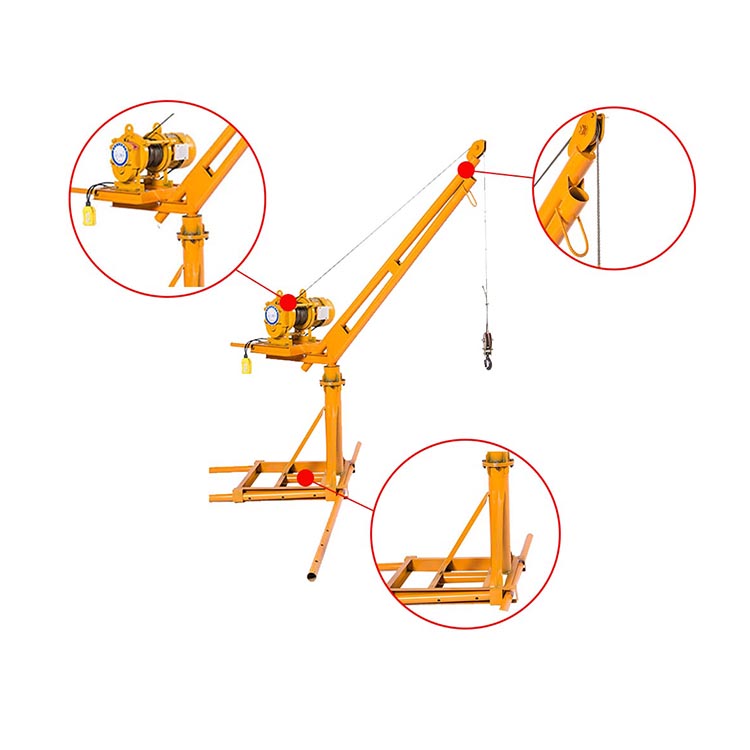

I. Main Features and Components

1. Equipped with double pulleys for strong load-bearing capacity, securing the wire rope and preventing it from falling;

2. Built-in double bearings for stability and durability, 360-degree rotation for enhanced safety and ease of operation;

3. Enlarged base for easy lifting and portability; the thickened base material facilitates counterweight application;

4. The 500 kg construction crane is equipped with an electric hoist and a mini electric hoist, powered by 220V electricity, enabling faster and safer electric lifting;

5. The support frame is detachable, saving space; assembly requires only one person;

The 500 kg construction crane's load capacity is limited to 500kg. Lifting should be based on the weight and height; overloading is prohibited. Before operation, a weight of 2-3 times the crane's height must be placed behind it. This weight can be bricks or sandbags; operation without counterweight is prohibited.

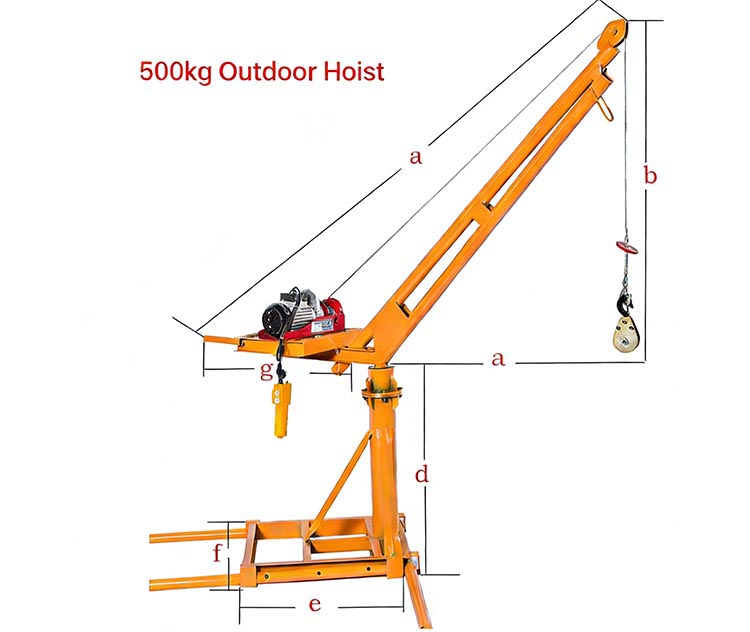

Parameter	a	b	C	d	e	f
Parameter	1.1mm	1.4mm	2.2mm	0.8mm	0.65mm	0.6mm
Parameter	1.1mm

How to check Hook?

Before using a 500 kg construction crane, it is necessary to check whether the crane bolts are loose, whether the electric hoist voltage is stable, whether there are broken strands in the wire rope, and whether there are cracks in the hook. The following describes how to check the hook:

1. Cracks: Hooks must be visually inspected before use. Any hooks found to be cracked must be scrapped immediately.

2. Excessive Wear at Critical Sections: Hooks manufactured according to current standards must be scrapped if the wear at the critical section exceeds 10% of the original height. Hooks manufactured according to older standards must be scrapped if the wear exceeds 5% of the original height. Excessive wear will reduce the hook's strength and create safety hazards.

3. Increased Opening: When the opening increases by 15% compared to the original size, it indicates severe wear, and the hook must be replaced.

4. Torsional Deformation: Hooks with torsional deformation exceeding 10° must be scrapped.

5. Plastic Deformation: Hooks with plastic deformation at the critical section or at the neck should be scrapped immediately.

6. Bushing/Mandrel Wear: When the plate hook bushing wears to 50% of its original size, the bushing must be scrapped; when the plate hook mandrel wears to 5% of its original size, the mandrel must be scrapped.

7. Welding is strictly prohibited: Welding is strictly prohibited for repairing any of the above defects. Hooks that have been welded must never be used.

The above is a detailed introduction to the 500 kg construction crane manufactured by Hebei Baiyi Lifting Equipment Factory. Hebei Baiyi Lifting Equipment supports customized solutions, offering reliable quality and transparent pricing. Feel free to contact us anytime for quotes, model selection, or sample requests. Tel: 15133220087 (WeChat available), Email: kate@syhoist.com. We look forward to cooperating with you for mutual benefit!
