HSZ 50T Manual Chain Hoist

The HSZ 50T manual chain hoist by Baiyi, a China professional supplier, is a premium 50-ton heavy-duty, non-electric lifting solution featuring high-strength alloy steel construction and precision gears for industrial applications. Designed for reliability in factory maintenance and outdoor operations, this versatile tool can be paired with trolleys or gantry cranes for versatile material handling.

Send Inquiry

Product Description

Quality HSZ 50T manual chain hoist by Baiyi mainly consists of a gear set, a manual chain, a lifting chain, upper and lower hooks, and a casing. It has a simple structure, requires no external force, and is suitable for scenarios without power supply.

1.Specifications & Data Sheet

Parameter Category	Parameter Name	Specification Value	Remarks
Core Performance	Rated Load Capacity	50T (50000kg)	Maximum safe working load
	Load Chain Pitch	Approx.28mm	High-strength load chain specification
	Standard Load Chain Length	3m/6m/9m/12m(customizable)	Select lifting height as required
	Hand Chain Diameter	Approx.13mm	Anti-slip design for effortless operation
Material	Load Chain Material	High-strength alloy structural steel	Heat-treated surface,wear-resistant &tensile-resistant
	Housing/Gear Material	High-quality carbon steel /high-strength alloy steel	Impact-resistant &deformation-proof
Dimensions	Overall Height(including hooks)	Approx.850mm(for 3m chain)	Fits standard heavy-duty working space
	Hook Opening Width	Approx.120mm	Compatible with large load-bearing hooks/lifting points
Weight	Net Weight(3m chain)	Approx.180kg	Easy to transport and install
Safety	Safety Factor	≥4:1	Complies with national lifting equipment safety standards
	Ultimate Load Test Value	1.25 times rated load capacity	Strict factory inspection before delivery

2.Key Features of HSZ 50T Chain Hoist

1. High Lifting Capacity:HSZ 50T manual chain hoist has a rated lifting capacity of 50 tons. Its core components are made of heat-treated high-strength alloy material, far exceeding the weight capacity of ordinary hand chain hoists and meeting industrial-grade heavy-duty lifting requirements.

2. High Lifting Efficiency: Equipped with a multi-stage gear transmission mechanism, it is easy to operate, has high transmission efficiency, and improves work efficiency.

3. Safety Guarantee with Multiple Protections: It features built-in overload protection and anti-slip devices. The hook can rotate 360° to adjust the lifting point direction. The lifting chain has an anti-slip texture design, preventing slippage during operation and enhancing safety.

4. Versatile Application: Purely manual drive, no external power supply required. It can be used in outdoor humid/high-temperature environments and is suitable for various complex operating environments such as factories, ports, and mines.

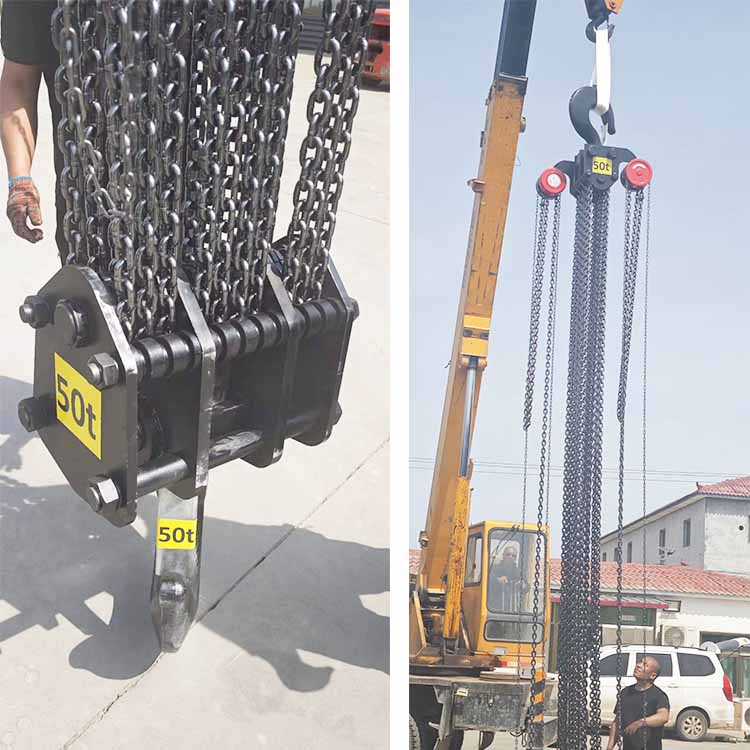

HSZ 50T Manual Chain Hoist

3. HSZ 50T manual chain hoist vs. electric hoist

Key Point	HSZ 50T Hand Chain Hoist	Electric Hoist	Core Advantage
Power&Portability	Manual,no power,180kg easy to move	Power-dependent,bulky,fixed mount	Works anywhere,flexible for remote sites
Cost &Maintenance	Low price,simple lubrication only	High price,complex electrical upkeep	Low initial &ongoing cost,easy to maintain
Safety &Environment	No electrical risks,works in harsh conditions	Electrical hazards,sensitive to environment	Safer for mining/chemical,adapts to all scenarios

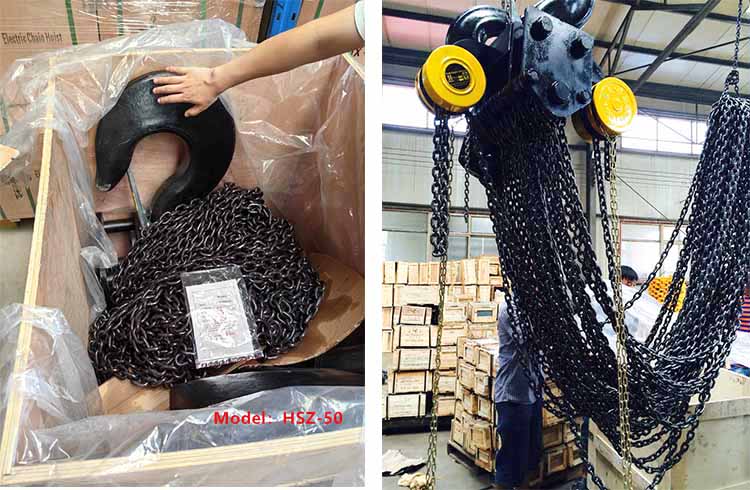

4. Product Packaging

● Inner Packaging: The entire machine is wrapped in a waterproof and moisture-proof film to prevent damage during transportation.

● Outer Packaging: Thickened cardboard boxes or wooden crates. The outside of the boxes is covered with a waterproof film to protect against rain and moisture. They are then packed on solid wooden pallets, with the entire pallet wrapped in stretch film to ensure they remain dry during long-distance sea and land transportation.

HSZ 50T Manual Chain Hoist

5. FQA

1. Can the HSZ 50T manual chain hoist operate for extended periods?

A: Continuous operation for extended periods is not recommended. Prolonged continuous lifting can cause overheating of the transmission components and lifting chain, accelerating wear. It is recommended to pause for 10-15 minutes every 30 minutes of continuous operation to allow the chain to cool down.

2. Can I lengthen the lifting chain myself if it is insufficient?

A: No, you cannot lengthen it yourself. The lifting chain specifications of the HSZ 50T chain hoist are precisely matched to the equipment's transmission ratio. If you need to lengthen it, you must contact the manufacturer to customize a matching extended chain.

3. Can this chain hoist lift irregularly shaped heavy objects?

A: Yes. When lifting irregularly shaped heavy objects, you must use slings to evenly secure the object, preventing tilting or swaying, and avoiding excessive force on one side that could damage the equipment or cause the object to fall.
