HSC Type Chain Hoist

The HSC type chain hoist is a light weight and efficient lifting device made of high-strength alloy steel. Hebei BaiYi Hoisting Machinery Manufacturing Co., Ltd. is producing HSC type chain hoist more than 20 years. It Widely used in industrial maintenance and equipment installation. The HSC type chain hoist durable and easy to operate. Compact design and low headroom allow installation in combined areas.

Send Inquiry

Product Description

Hebei BaiYi Hoisting Machinery Manufacturing Co., Ltd.’s high quality HSC type chain hoist have follow specification

1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 20 ton, 30 ton, 3m, 4.5m, 5m, 6m, 9m, 12m, Double Brake hook with safety latch for Lifting Goods in Transport and Workshop hand chain hoist belongs to catalogue lifting and moving materials, tackle, manual tackle, manual rigging, hoist. Hsc, hsz, vt, vd portable chain block manual chain pulley block with ratchet pawl. Top grade red, yellow, black, blue, white, Grey pulley block for home and industry use.

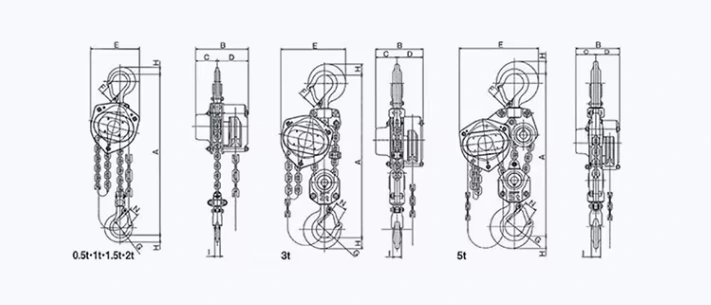

Model	HSC-0.5	HSC-1	HSC-1.5	HSC-2	HSC-3	HSC-5	HSC-10	HSC-20
Capacity load T	0.5	1	1.5	2	3	5	10	20
Standard lift M	2.5	2.5	2.5	3	3	3	3	3
Test load T	0.75	1.5	2.25	3	4.5	6.25	12.5	25
Effort to rated capacity N	200	304	343	314	343	383	392	395
No.of load chain	1	1	1	1	2	2	4	8
Diameter of load chain MM	6	6	8	8	8	10	10	10
Min..distance between hooks MM	255	305	365	395	445	615	700	1000
Net weight KGS	8.4	11	16.2	18.5	25.6	42.8	79.5	120

BaiYi Hoisting HSC type chain hoist Features：

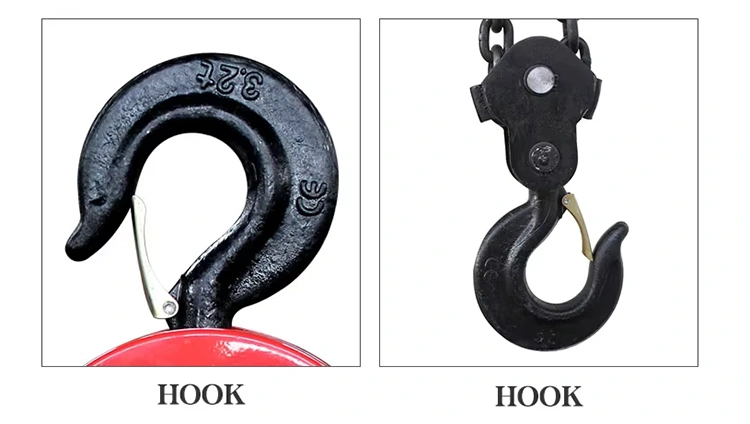

1. The hook is made of high-quality manganese steel and features a safety latch, ensuring strong pressure resistance and resistance to falling off. The chain clip fits snugly with the chain, ensuring smooth chain movement without jamming.

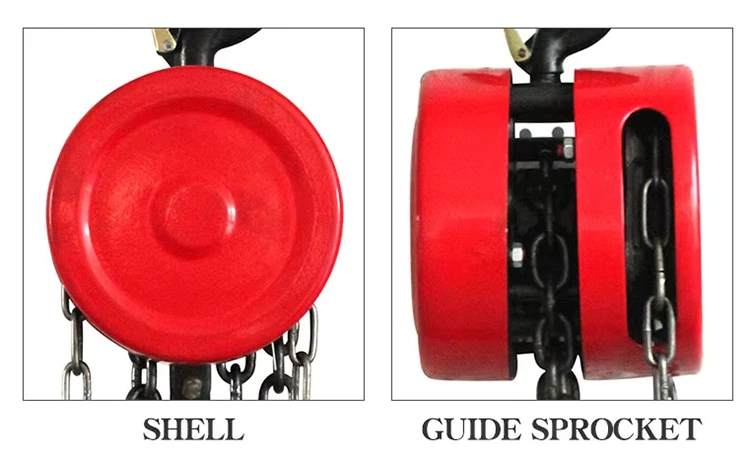

2. Thickened housing: The thickened housing provides excellent chain jam resistance, ensuring a beautiful appearance, durability, and protection of internal components.

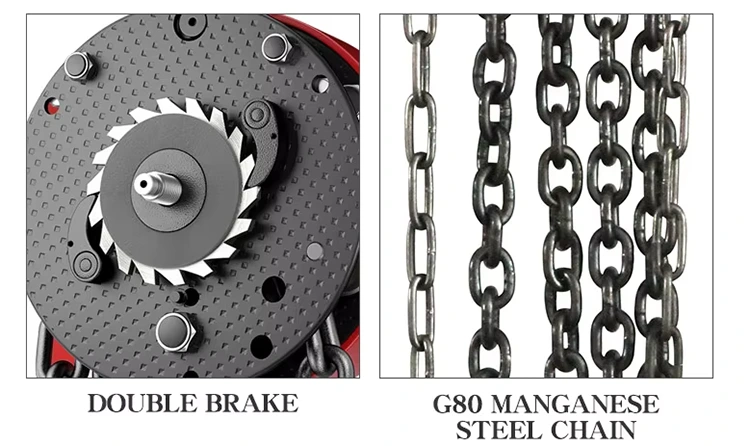

3. Ratchet brake: ratchet brake will not slip, making construction safer.

4. Synchronous gear: high speed synchronous size, low noise, easier to use.

5. Manganese steel chain: Quenched and refined, more firm and not easy to break.

BaiYi Hoisting HSC type chain hoist Applications :

1 It is indispensable in workshops and production lines for precise equipment installation, routine maintenance, and mold handling.

2 In warehouses and logistics, it facilitates vertical cargo movement and stacking.

3 On construction sites, it aids in steel structure erection and material lifting. Its unique value shines in environments without power or in confined spaces—such as shipyards, vehicle repair, power facility maintenance, and field operations—where its portability and independence from electricity are critical.

4 Built with high-tensile alloy steel chains and designed to meet strict safety standards, it reliably and safely performs various tasks including hoisting, pulling, and tensioning loads.
