Analysis of the Problem of Hydraulic Stacker Forks Only Going up and Not Down

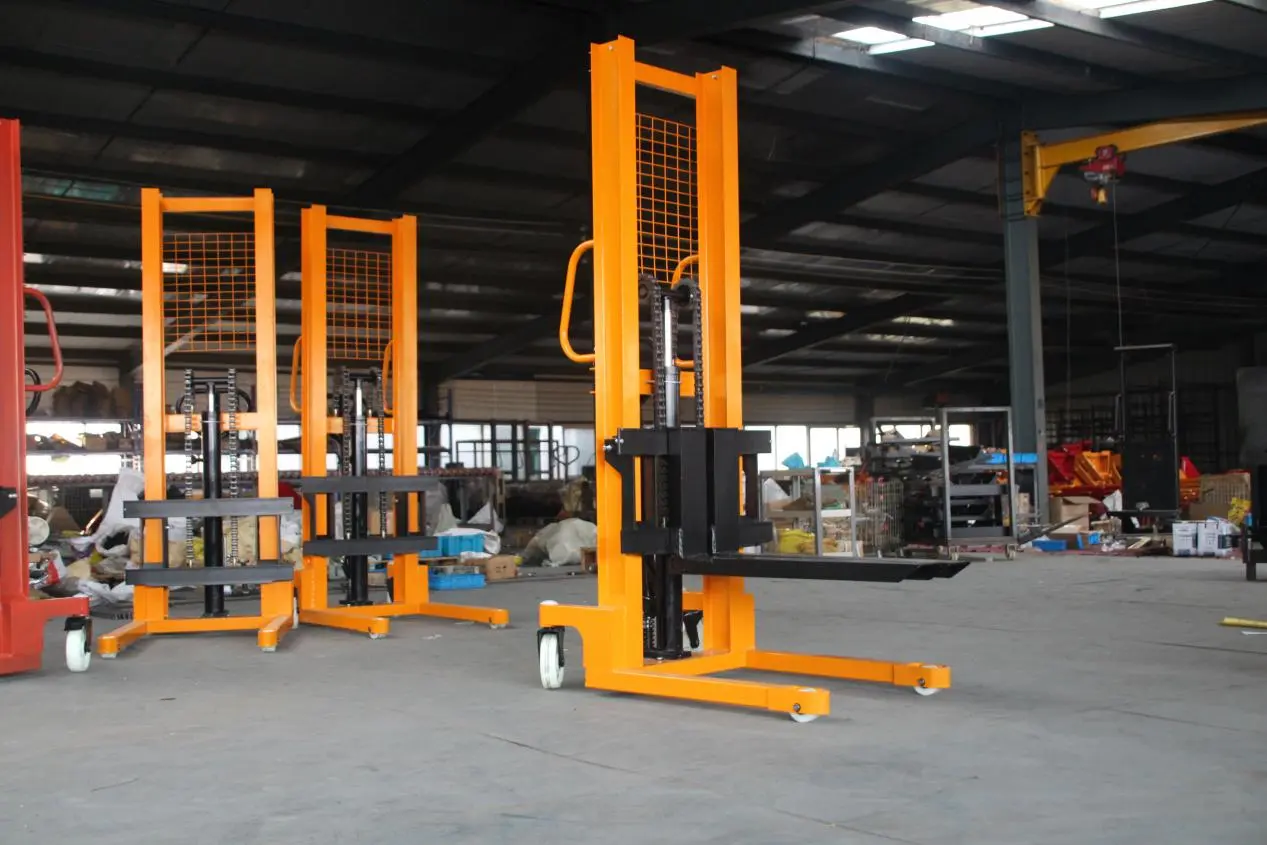

Hebei Baiyi Hoisting Equipment Sales Co., Ltd. is a professional enterprise specializing in the research, development, production, and sales of lifting machinery and hydraulic handling equipment. Its hydraulic stackers, due to their compact structure, convenient operation, and stable load-bearing capacity, are widely used in warehouses, workshops, and other scenarios, serving as core equipment for cargo stacking and short-distance handling. During long-term use, some users encounter a malfunction where the forks only go up and not down, affecting operational efficiency and posing safety hazards. This article, based on the characteristics of the company's products, briefly analyzes the causes of the malfunction, troubleshooting methods, and solutions to help users quickly resolve the problem.

I.Common Causes of Faults

Hebei Baiyi hydraulic stacker trucks rely on the coordinated operation of the hydraulic system and mechanical structure for fork lifting. When the forks "only go up and not down," it is essentially due to the hydraulic oil not being able to flow back normally or the mechanical structure being blocked. This can be divided into two main categories, with hydraulic system failures accounting for more than 80%.

(a)Hydraulic system failure

1.Unloading valve malfunction: As a key component controlling the descent of the forks, the  Baiyi hydraulic stacker uses an integrated unloading valve. If the operator misadjusts the positioning screw, or if impurities adhere to the hydraulic oil causing the valve core to jam, it will block the return oil circuit, preventing the forks from descending.

2. Hydraulic Oil Abnormalities: Specific type of anti-wear hydraulic oil must be used, and the oil level must meet the standard. Excessive impurities, insufficient oil volume, or air contamination in the oil will clog the oil passages, create air locks, hinder hydraulic oil circulation, and cause malfunctions.

2.Cylinder Failure: Long-term heavy loading or off-center placement of goods can cause piston rod deformation; aging and damage to seals can cause internal hydraulic oil leakage. Both situations will prevent the forks from descending normally, and some may also be accompanied by oil seepage from the cylinder.

(b) Mechanical structure failure

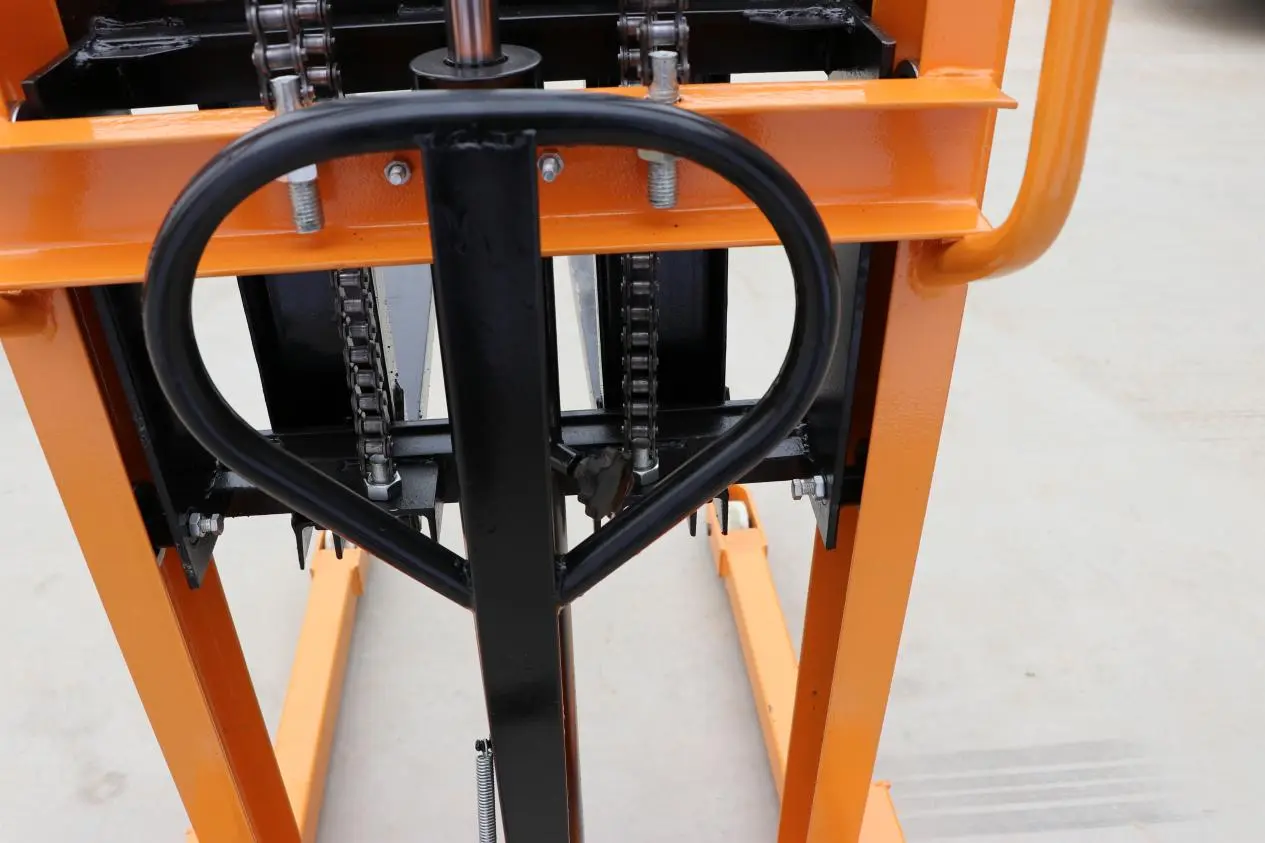

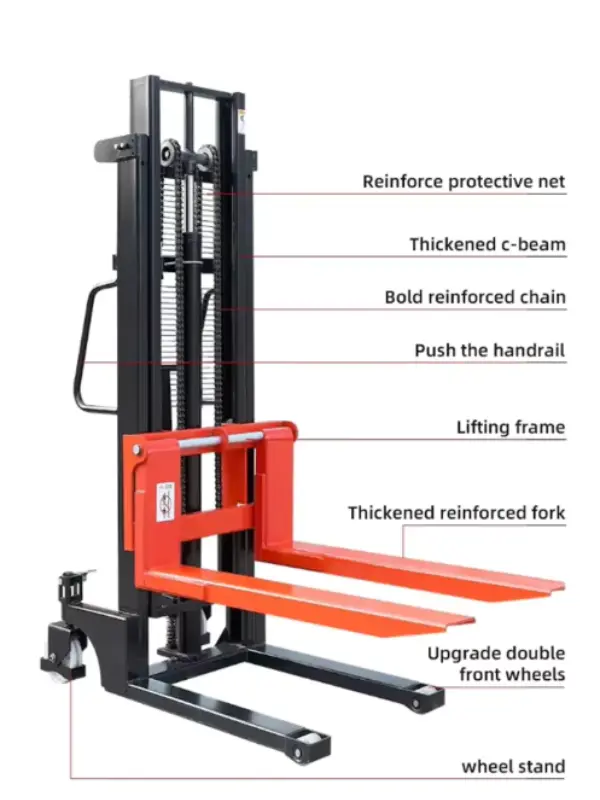

1. Component jamming: The fork carriage is connected to the mast via rollers. Wear or insufficient lubrication of the rollers, or impurities in the mast guide rails, can cause jamming. A loose or detached chain, or a damaged sprocket, can also prevent the forks from descending.

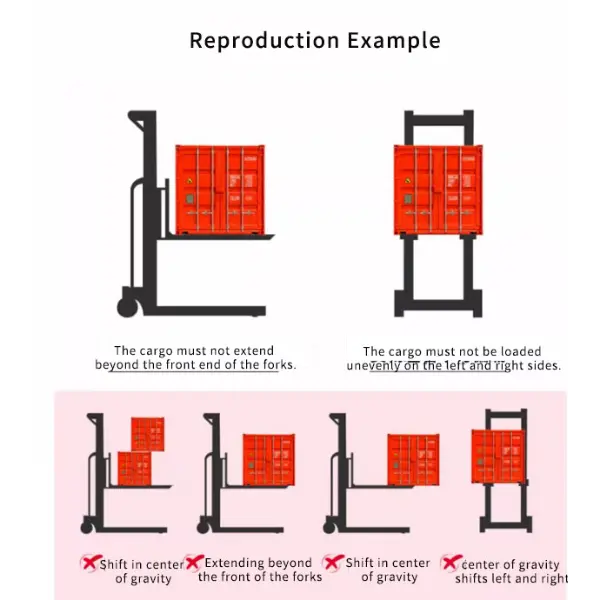

2.Frame/mast deformation: Long-term heavy loading and improper operation (such as overloading or collisions) can cause slight deformation of the frame or mast, compressing the fork carriage and preventing it from sliding. This is often accompanied by mast tilting and uneven fork height on both sides.

II.Simple Troubleshooting Methods

Following the principle of "simple before complex, hydraulic before mechanical," troubleshoot step by step to avoid blind disassembly:

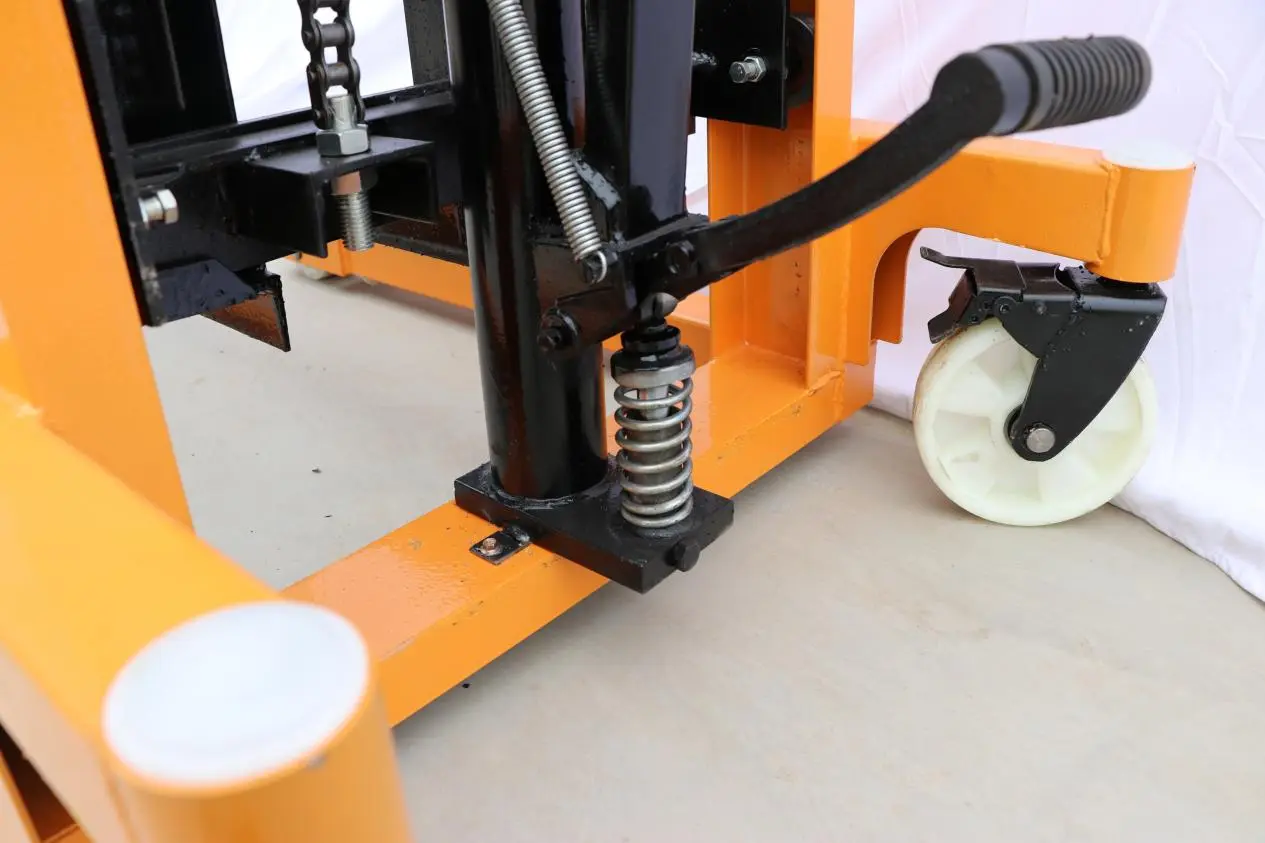

1. Check operating procedures: Confirm that the unloading handle/pedal is in the lowering position and operating correctly. If the handle is stuck or loose, tighten the adjusting linkage.

2. Check hydraulic oil: Observe the oil level indicator to confirm it is within the standard range. If the oil is cloudy or contains impurities, replace it immediately and clean the oil tank. If there is lifting or lowering jamming, raise the forks to the highest position and repeatedly operate the unloading handle to purge air from the oil circuit.

3. Check the unloading valve: Slowly adjust the positioning screw with a screwdriver (1/4 turn each time). If it can lower after adjustment, the problem is solved. If not, disassemble and clean the valve core. If damaged, replace it with a genuine Baiyi unloading valve.

4.Check the mechanical structure: Clean impurities from the mast guide rails, check the wear of rollers and sprockets, replace them promptly and add grease; check for oil leaks in the cylinder and piston rod deformation, and address the problem accordingly.

III. Solutions and Daily Maintenance

1. Targeted Solutions: For unloading valve malfunctions, adjust, clean, or replace; for abnormal hydraulic oil, replace with the specified fluid and clean the oil circuit; for cylinder malfunctions, replace seals or piston rods; for mechanical jams, clean impurities and replace parts; for frame deformation, contact Baiyi after-sales service for professional alignment.

2. Precautions: Remove cargo and disconnect power before repair; prioritize using genuine Baiyi parts; if the malfunction cannot be resolved independently, contact the company's after-sales service to avoid secondary damage.

5.Routine Maintenance: Check hydraulic oil level and quality weekly and change every 3-6 months; add grease to moving parts monthly; operate according to regulations, strictly prohibit overloading, lower the forks to their lowest position after use, and contact Baiyi after-sales service annually for a comprehensive inspection to reduce malfunctions.

In summary, the issue of Hebei Baiyi hydraulic stacker forks only going up and not down is mostly due to minor faults in the hydraulic system or mechanical structure. The methods described above can quickly troubleshoot and resolve this. Proper daily maintenance and standardized operation can effectively extend the equipment's lifespan. For professional support, please contact the company's manufacturer's after-sales team at any time.
