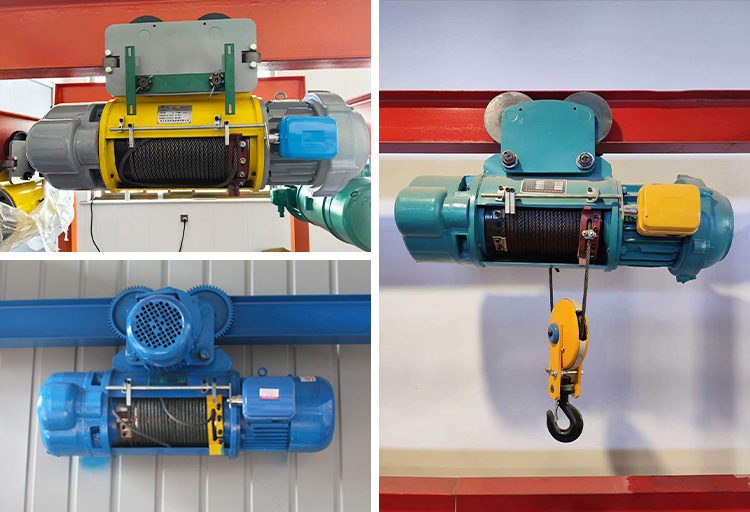

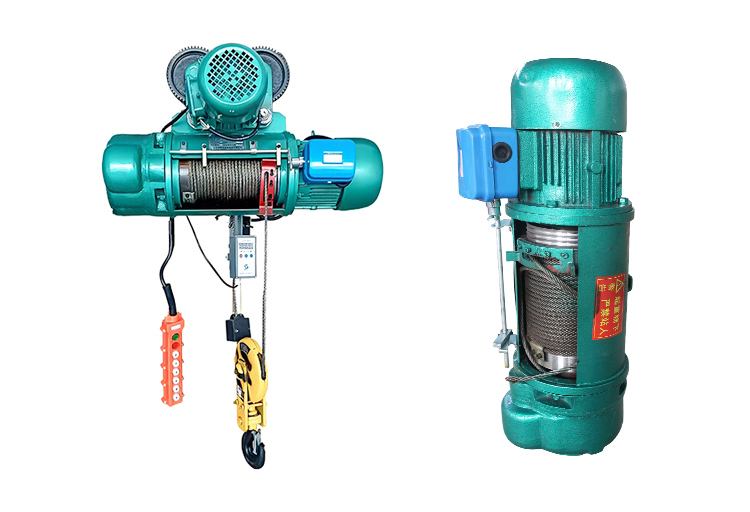

CD1 Type 1T Wire Rope Electric Hoist

The CD1 type 1t wire rope electric hoist  is a classic single-speed lifting model in the industry, suitable for stable operation in regular working conditions. The entire machine adopts a full mechanical gear reduction transmission structure, and the body is made of thickened steel and a precise gear set. The overall structure is strong, resistant to impact and wear. Daily maintenance only requires simple and regular lubrication and tightening, with a low maintenance threshold. The long-term operation has a low failure rate and a longer service life.

The CD1 type 1t wire rope electric hoist is powered by industrial standard 380V three-phase AC electricity. The lifting and lowering processes are all constant single-speed operation, with smooth and controllable movements. There is no load shift during start-up and stop. It is suitable for the lifting and transportation of regular and regular-sized materials. A standard electromagnetic power-off braking system is equipped, which automatically locks the brake at the moment of power failure to prevent the heavy object from sliding and falling. The safety coefficient of the operation is higher. The model is flexible to use. It can be fixedly installed for independent use or be combined with a small trolley frame to be set up on a single-girder I-beam track to achieve linear round-trip lifting.

The standard lifting height is 6 meters and 9 meters. At the same time, non-standard lifting heights such as 12m and 18m can be customized according to the site conditions, suitable for different factory floor height requirements. It is widely used in short-distance lifting and transportation in factory workshops, warehouses, logistics loading and unloading, etc. It can also be paired with small cantilever hoists and gantry frames as the core lifting main equipment, and is commonly used as an economic lifting equipment in small-sized industrial and mining enterprises.

Product parameters

Customizable Features:

Lifting Height Customization: Standard is 6/9m, extended drums of 12–30 meters can be customized according to customer needs.

Voltage/Frequency Customization: Standard 380V/50Hz, 220V three-phase, 60Hz export-specific voltage can be customized.

Installation Method Customization: Manual or electric trolley can be used upon request.

Safety Configuration Customization: Overload limiter, anti-disengagement device, and overload-resistant opening protection mechanism can be customized.

Rail Customization: Customized extended and widened trolleys to adapt to non-standard I-beams or customized mounting hole spacing, etc.

CD1 type 1t wire rope electric hoist vs. manual hoist: a comparison of core advantages

FQA

Q1: What are the differences between CD1 and MD1, and how do I choose?

A: CD1 is single-speed, while MD1 is dual-speed. CD1 has a simpler structure and is cheaper, while MD1 has speed adjustment and is more expensive.

Q2: Can a CD1 Type 1T Wire Rope Electric Hoist be fully loaded and continuously lift 1 ton?

A: 1 ton is the safe limit. Avoid prolonged full-load use to prevent wire rope breakage, motor burnout, brake failure, etc.

Q3: Can it be used with household 220V electricity?

A: The standard CD1 1-ton hoist is a 380V three-phase high-power model and is not compatible with household 220V. If 220V is required, a customized model is available.

Welcome to purchase our CD1 type 1t wire rope electric hoist! This model is a classic mainstay in the field of industrial lifting. It features solid construction, stable performance, and outstanding cost-effectiveness. The entire machine is equipped with a thickened steel structure body and precise gear transmission, offering strong load-bearing capacity, excellent wear resistance and durability. It has a low daily failure rate and simple, hassle-free maintenance in the long term.
