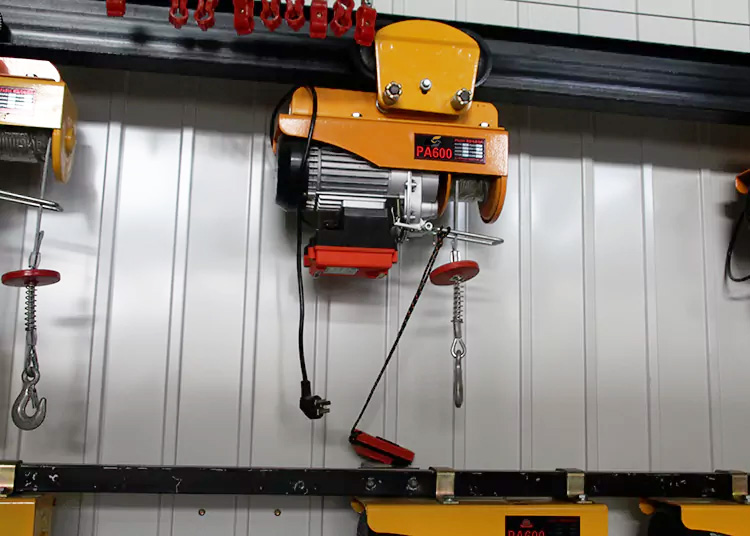

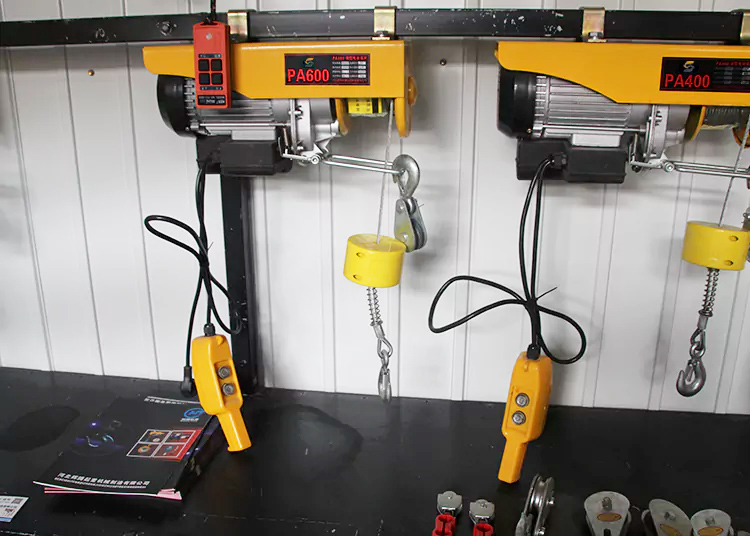

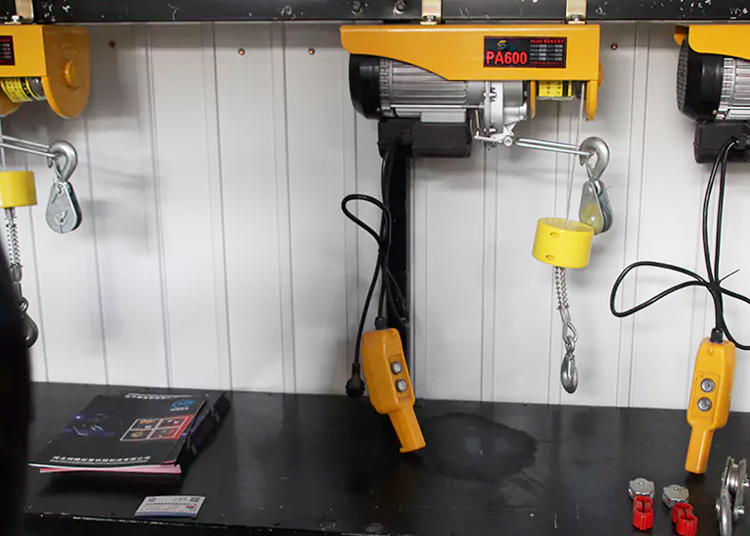

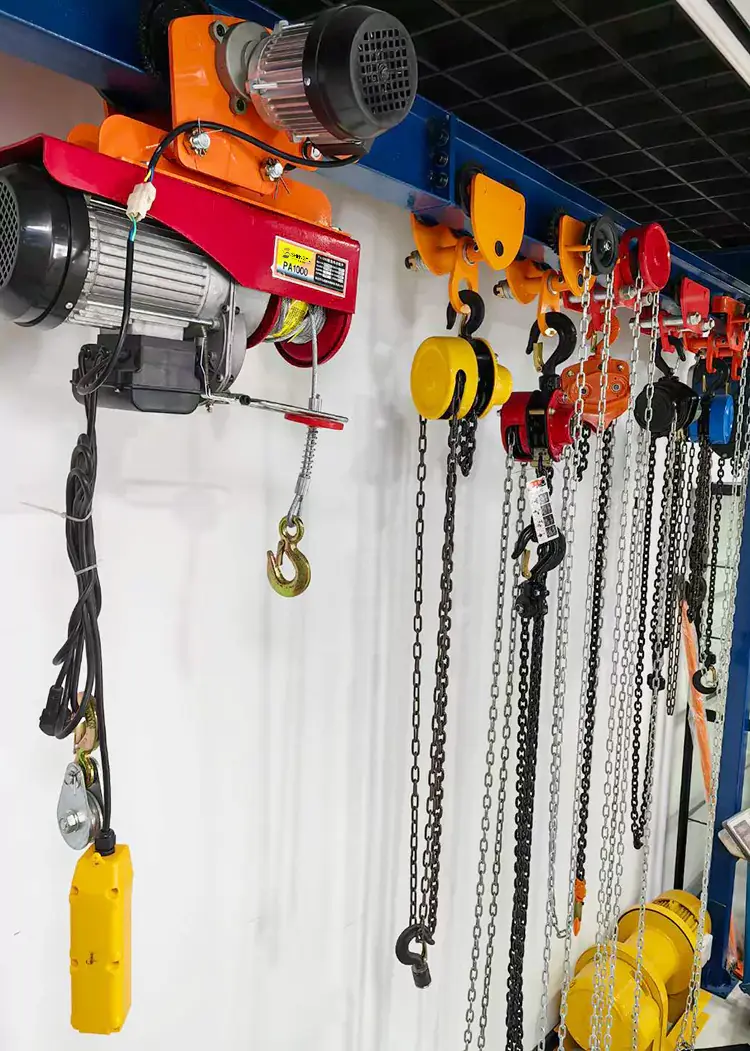

PA MIni Electric Hoist

The BaiYi high quality PA mini electric hoist is a lifting equipment specially designed for small-scale lifting operations. It is powered by a 220v household power supply and can cover a lifting capacity range of up to 1200kg. With a single hook, it can reach a height of 12 meters, and in the double hook mode, it can achieve efficient operations of 6 meters. It can meet the needs ranging from home decoration to industrial production.

Aluminum casing

The PA mini electric hoist is equipped with an aluminum casing, which is both sturdy and durable, conducts heat quickly, and can reduce heat retention.

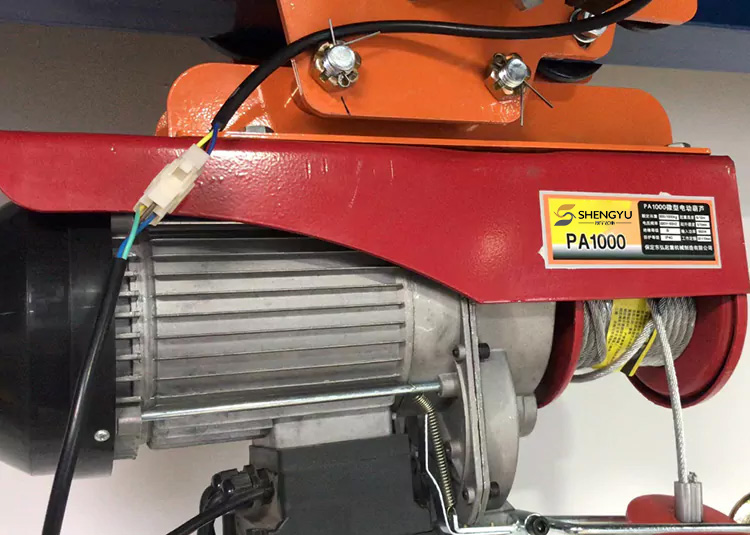

All-copper wire rewound motor

Optimize the coil winding method. Use a new type of insulating paint layer to confine the winding of the copper wire, increase the heat dissipation area, and add conductive blocks. It can withstand a temperature of 200 degrees Celsius.

Limiting device

Humanized design, lightning braking, automatic power-off upon activation, can ensure safety during the operation process.

High-quality steel wire rope

A strong steel wire rope made by specially densely winding and braiding, is not prone to rotation and will not break.

Pure copper motor

All-copper wire rewound motor, with greater power and longer lifespan

Alloy hook

An all-weld-free, high-strength forged and thickened lifting hook with a user-friendly curved design, ensuring no detachment of the hook.

Notes for Attention

1.When the weight is uncertain, PA MIni Electric Hoist is advisable to opt for the higher specification model of the electric chain hoist.

2.The fixed type needs to be installed on a sturdy load-bearing structure, while the mobile type requires matching I-beam steel tracks.

3.It is necessary to inspect the wear of the steel wire rope, the deformation of the hook, and the cooling condition of the motor every three months.

4.Prohibit slinging or hoisting at an angle. When working inside, do not stand below.

Why choose us?

● Possessing extensive industry experience

● Large-scale equipment manufacturing

● Quick response for rapid delivery

● Continuous improvement and optimization, well worth the wait

● Excellent technology, high-precision product quality

● Continuously innovate to meet market demands

Baiyi has always been dedicated to the research and development, production and sales of high-quality and highly reliable PA mini electric hoist products. We offer a variety of models for your selection. We also provide customization services, such as the length of the rope, the color of the casing, the style of the handle, etc. If you have any needs, you can contact us via Kate@syhoist.com. We will provide you with more product information.
