Aluminum Body Electric Winch

BaiYi is a processional lifting and hoisting machine producer can producing electric wire rope winch. Our Aluminum Body Electric Winch is a lightweight but extraordinary power lifting tools. It integrates the motor, reduction gearbox, drum and safety brake, all of which are enclosed in a sturdy aluminum alloy housing. This ingenious design allows it to provide sufficient lifting power, but is much lighter than traditional steel winches, allowing you to easily move and install it on a bracket or beam, especially for those with limited fixed lifting points or frequent changes in work location.

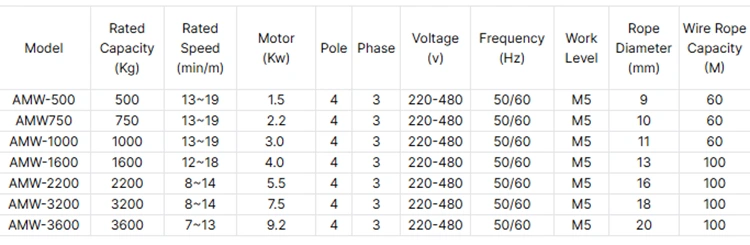

We have our own factory, producing electric wire rope winch, capacity include 500kg, 750kg, 1000kg, 1600kg, 2 ton, 3 ton, 5 ton and 10 ton. Power voltage can be 220V, 380V, 440V for customers choose, also can accepted customized.

Product Features

Light weight: Aluminum alloy shell not only rust and corrosion resistance, but also significantly reduce the weight of the whole machine. One person can easily carry it.

Durability: Inside the fuselage of Aluminum Body Electric Winch, we use high-quality FCD-45 steel as the frame and gearbox body to ensure structural toughness. Transmission gear after heat treatment, precision and durability, smooth operation and low noise.

High safety: Standard electromagnetic braking system. Once the power is cut off, the brake automatically starts, and the load can be stably stopped to prevent accidental falling.

Easy maintenance: Simple structure design, steel wire rope with oil core, long-term self-lubricating, corrosion resistance and more durable, effectively reduce your maintenance frequency and cost.

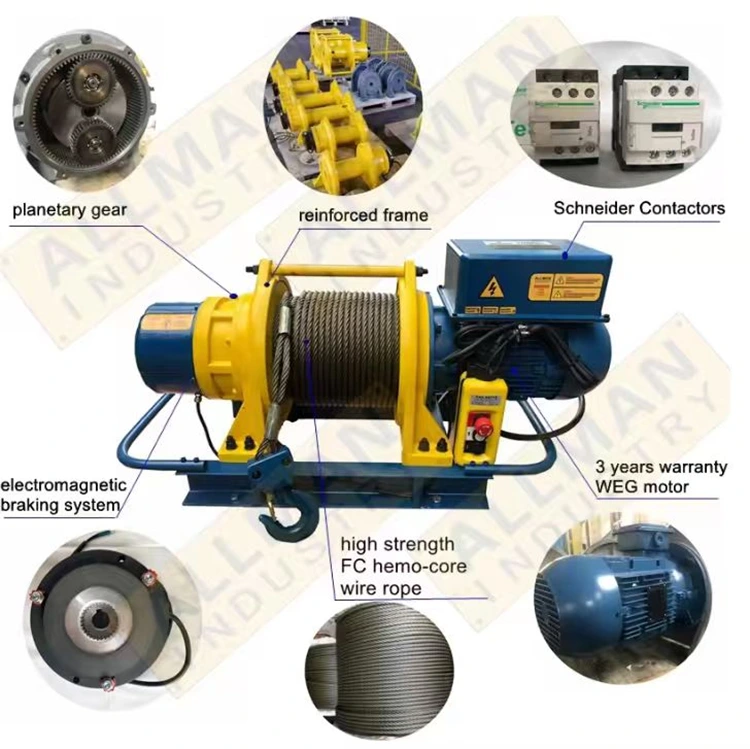

Product Components

a: Winch frame and gear box structure: Using best quality steel FCD-45 steel, have better extension.

b: Wire rope: BaiYi Aluminum Body Electric Winches use high quality core wire rope. It can help store lubricating oil. This way the oil on steel wire rope the surface can be permanently replenished, so can make the wire rope durable and not easy corrosion.

c: Electric winch mounting plate: Using welded channel steel, easy for the wire rope winch installation with fixed holes.

d: Transmission gear: Using best quality steel and heat treated, with high precise level, wearable, low noise and drive smoothly features.

e: Brake type: Using electromagnetic brake, when power off, it also can automatic braking.
