1000 kg Simple Crane

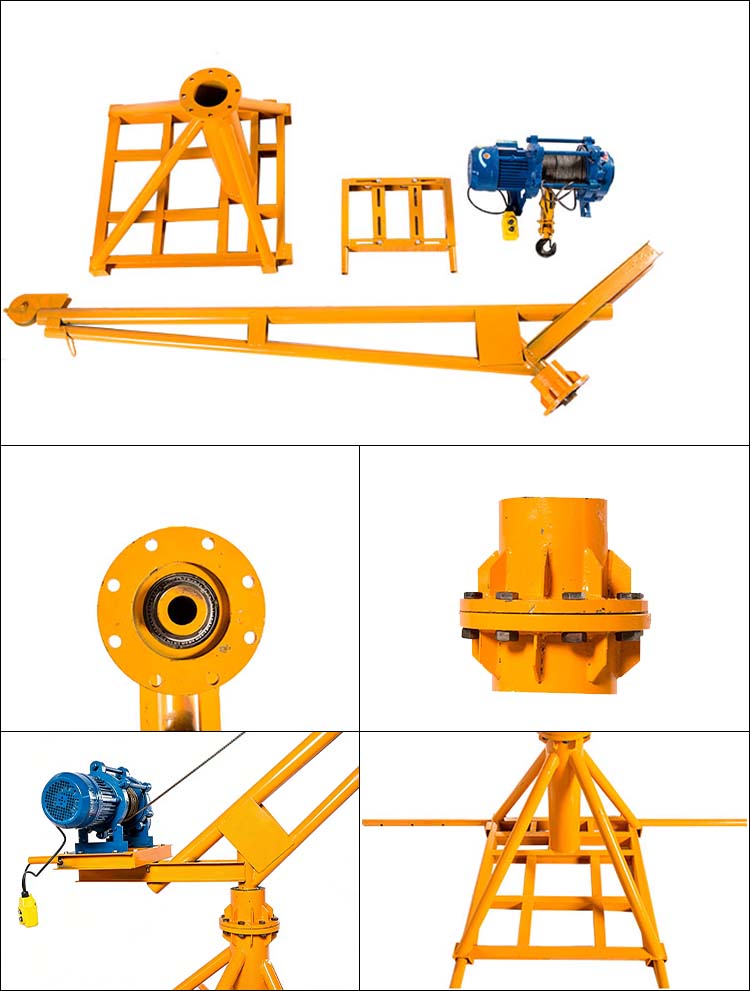

Detailed explanation of the function and materials of each component in a 1000kg simple crane：

1.Rotary bearing flange: The flange structure with bearings ensures smooth boom rotation while guaranteeing connection strength and stability under load.

2.Rigid coupling: A coupling fastened with high-strength bolts,It can enhance the rigidity of power transmission,It can effectively buffer the impact,It can also improve the reliability and service life of the entire machine.

3.Thickened base: The thickened base provides more stable and safer load-bearing capacity and improves the overall anti-tipping ability of the machine, making it suitable for outdoor complex ground operations of a 1000 kg simple crane.

Precautions for use

1.Pre-operation inspection: Confirm that the base legs are fully extended and secured, that the wire rope has no broken strands or wear, and that the couplings, bearings, and other components are securely connected.

2.Environmental requirements: Only operate on flat and firm ground. It is strictly forbidden to use on soft, sloping ground or in windy (≥6 level) weather. When operating outdoors, rain protection measures should be taken to prevent the motor from getting damp.

3.Operating procedures: The rated load shall not exceed 1000kg. The goods shall be centered and securely tied. It is forbidden to pull at an angle or overload. When using a 1000 kg simple crane, personnel shall stay away from under the heavy object and it is strictly forbidden to stand or cross the wire rope.

4.Emergency and Maintenance: In case of power failure or malfunction, immediately activate the braking device; do not attempt to operate the crane. After use, return the boom to its original position and disconnect the power supply.

Hebei Baiyi Lifting Machinery Factory conducts trial lifting tests on every crane model before it leaves the factory. Only products that pass the tests are shipped. Our 1000kg simple crane can have its boom extended and its column height increased. Customization is available to meet user needs; dimensions can be modified, load capacity increased, and functions are optional. Tel: 15133220087 (WeChat available), Email: kate@syhoist.com for customization and pricing!
