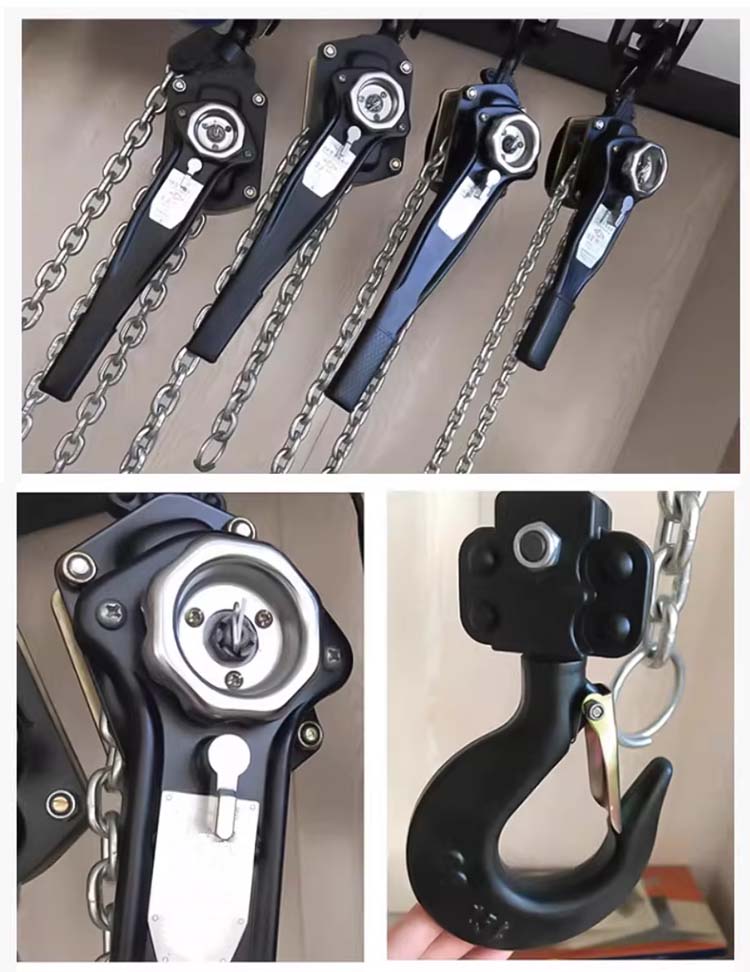

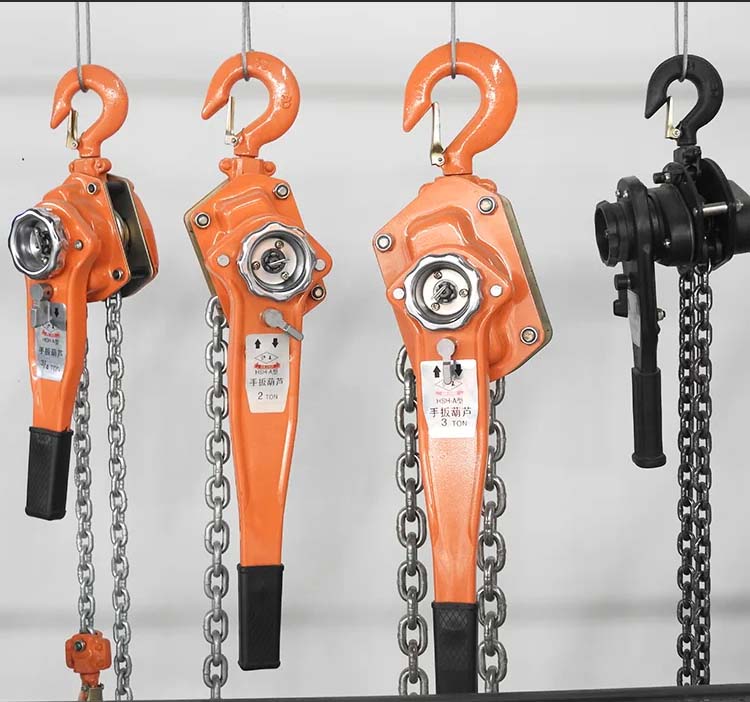

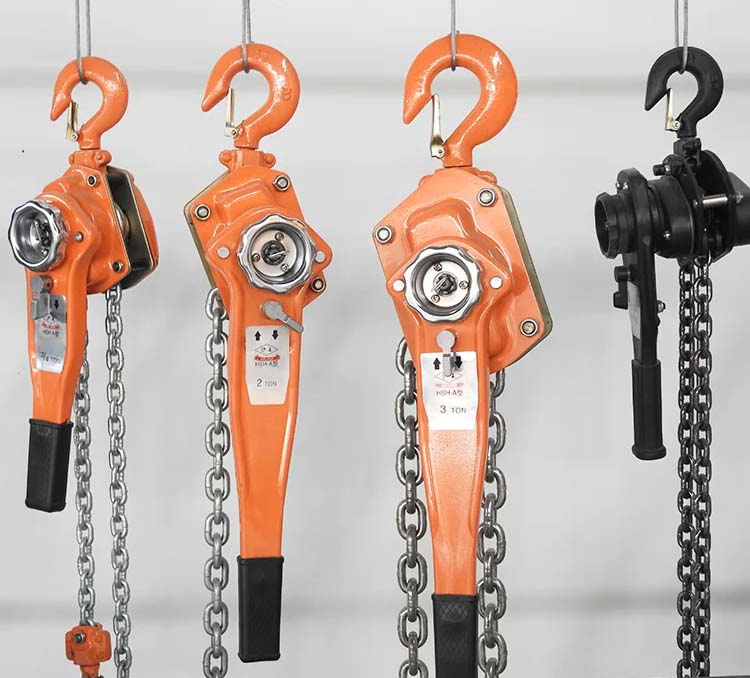

1 ton HSH Hand Lever Hoist

Baiyi’s 1-ton HSH hand lever hoist consists of an upper hook, a lower hook, a handle, a housing, a driving gear, a driven gear, a long shaft gear, a brake seat/friction plate, a ratchet wheel, a double pawl, a brake spring, a lifting chain, a chain box, etc. The 1T hand-operated hoist is designed specifically to meet the needs of small and medium-sized loads and precise positioning in daily maintenance, equipment installation, construction, warehousing and logistics scenarios. Its core advantages lie in its compact structure, light weight, easy operation, and safe and reliable braking, making it particularly suitable for working environments without power, at high altitudes, in narrow spaces, or requiring precise control。

1-ton HSH hand lever hoist Date

Features

Safe and Reliable: Employs a dual ratchet braking system, a core safety feature. The dual ratchet braking system increases in strength with minimal increments as the load increases.

Extremely Effortless: Optimized gear design and lever ratio reduce the hand force required to lift the maximum load, thus requiring less effort from the operator.

Compact Structure: The compact and lightweight design makes it ideal for use in space-constrained pipework, equipment interiors, or densely populated areas.

Durable: Key components are all made of high-quality alloy steel, heat-treated for superior wear resistance and long service life.

Flexible Operation: The handle rotates 360° to accommodate various operating angles. Some models feature step less speed regulation for precise lifting and lowering of heavy loads.

Simple Maintenance: The modular design requires only cleaning and lubrication for daily use, resulting in low maintenance costs.

 Main Use for 1-ton HSH hand lever hoist:

1 For small and medium-sized equipment repair and installation: machine tool positioning, motor replacement, production line equipment debugging.

2 Construction sites: steel structure component positioning, formwork adjustment, pipe hoisting.

3 Warehousing and logistics: cargo hoisting, pallet adjustment, and strapping tensioning.

4 Ships and vehicles: onboard equipment repair, vehicle rescue, and cargo securing.

5 Emergency rescue: used as a simple lifting device in situations without power.

The main differences between HSH series lever hoists and other lever hoists: Compared to other brands or low-end products on the market, the differentiated advantages of HSH series lever hoists (taking Hangzhou Shuangli as an example) are usually reflected in:

FAQ:

Q1: 1-ton HSH hand lever hoist can lift exactly 1 ton?

A: Yes, but it is recommended to leave a safety margin. In actual operation, ensure that the weight of the load (including the lifting equipment) does not exceed 80%-90% of the rated load to cope with uncertainties such as impact loads and angular forces.

Q2: Can the chain be lengthened?

A: Yes, the chain length can be customized according to customer requirements.

Q3:Why is the handle so heavy and I can't turn it?

A: Possible causes: 1 Overload; 2 Lack of lubrication in the chain or gears, increasing resistance; 3 Internal impurities or rust causing jamming; 4 Brake too tight. Immediately stop use, check the load, and troubleshoot the problem.

Q4: How to maintain and care for the chain on a daily basis?

A: 1 Clean dust and moisture after use; 2 Regularly (e.g., monthly) apply anti-rust lubricating grease to the chain and drive components; 3 Check the hook for deformation or cracks, and ensure the tongue is intact; 4 Check the chain for twisting, wear, or elongation; ⑤ Test the braking sensitivity and reliability under no-load conditions.
