Lifting Clamp

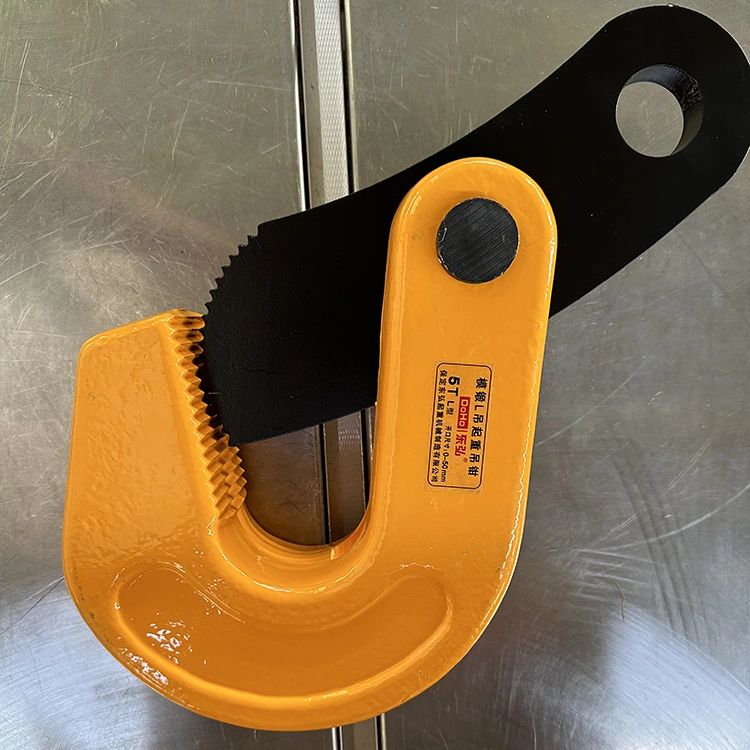

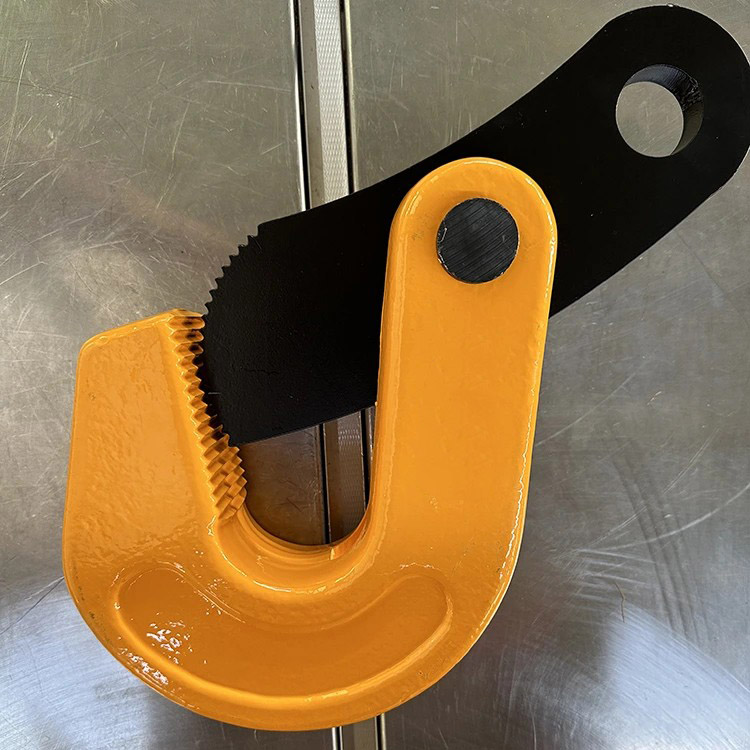

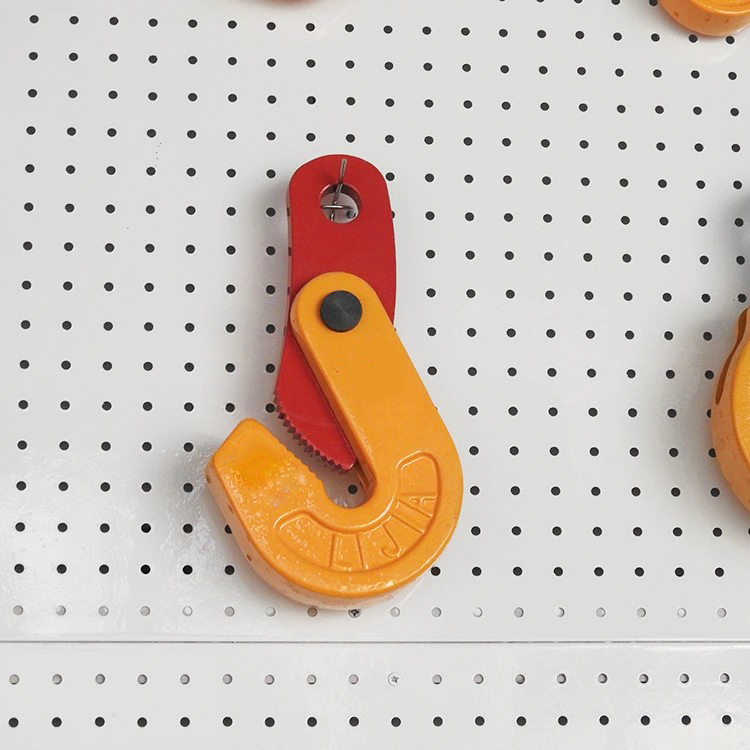

Wholesale high quality lifting clamp from BaiYi factory. Our lifting clamp core design based on the leverage and friction principles.When working, the upper clamp arm also called movable arm of the crane clamp produces relative motion with the lower clamp arm also called fixed arm through the hinge point and under the action of the lifting weight, converting the vertical downward tension into a strong horizontal clamping force, thereby firmly grasping the cargo. According to different lifting goods (such as steel plates, steel sections, steel coils) and lifting methods (vertical lifting, horizontal lifting, horizontal lifting), clamp developing various specialized types. Its main advantages are fast operation, cannot damage to goods, and high safety.

How to choose the right lifting clamp for you?

When choosing clamp should consider the following dates:

1 Standard lifting capacity: It means the maximum safe working load that a single tong is allowed to carry at a specified lifting clamping thickness and angle. Usually use tons as unit.

2 Testing loading capacity: Usually 1.5 or 2 times the rated lifting capacity, used for product factory testing.

3 Openness: The maximum and minimum adjustable clamping range of the jaws determines the thickness of the cargo that can be lifted.

4 Adaptive plate thickness: The optimal clamping steel plate thickness range corresponding to the design of the suspension clamp

5 Safety factor: The ratio of the minimum breaking load to the rated load, usually not less than 4 times

Classification

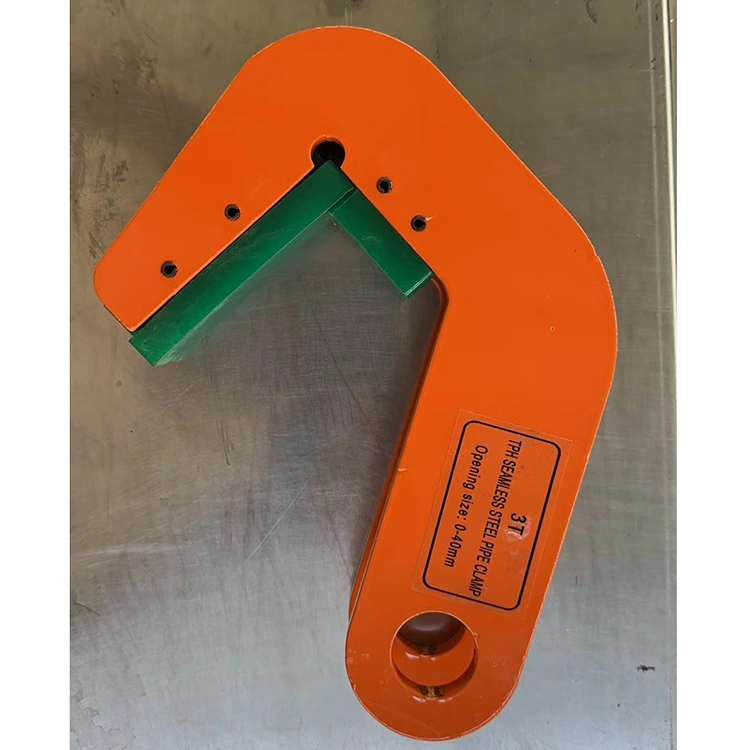

Steel plate pliers, vertical steel plate pliers, YC rail clamp, DHQL crane, TPH seamless steel pipe pliers, CDH vertical crane, DFM forging flip, PDB flat crane, forging L crane, SCDH forging vertical crane, PPD self-locking horizontal crane, DFQ flipping crane, etc.

Features

1 Efficient and convenient: No need for bundling or punching, it can achieve quick hanging and decoupling, greatly improving work efficiency.

2 Safe and reliable: BaiYi customized lifting clamp adopts mechanical self-locking design, the larger the load, the stronger the clamping force, and the higher the safety factor.

3 Protecting goods: The jaws usually have teeth or protective pads, which can effectively prevent slipping and avoid serious scratches on the surface of the lifted object.

4 Strong professionalism: Specially designed for different forms of goods, with high applicability

5 Sturdy structure: The main components are made of high-strength materials, which are durable and long-lasting.

FAQ：

Q1: What should be checked before using the pliers?

A1: Before each use, it is necessary to check whether the lifting clamp body has cracks, deformation, or severe wear; Whether the moving parts are flexible and not stuck; Is the spring intact; Whether the safety pin shaft is missing or damaged; Is the tooth pattern on the jaws clear. And confirm whether the rated load meets the requirements.

Q2: Can I use a single horizontal steel plate clamp?

A2: Absolutely prohibited. Horizontal steel plate clamps must be used in pairs and paired with balance beams to ensure even load distribution and smooth lifting. Vertical steel plate pliers can be used alone in some cases, but must strictly follow the manufacturer's instructions.

Q3: Do pliers need regular maintenance?

A5: Yes. Regularly clean the dirt, lubricate the hinge points, shafts, and other parts to maintain their flexibility. And a regular professional inspection system should be established, with professional personnel conducting in-depth inspections of structural integrity.
