Multi-spec Color-coded Flat Webbing Sling

Purchase lifting and hoisting accessories and choose Shengyu Company's multi-sized color flat lifting belts! This product adopts a high-strength polyester overall weaving process. The colors are distinguished according to the lifting tonnage, making it easy for on-site quick identification of load levels. The lifting belts are soft in texture, and the lifting operation will not damage the goods being lifted. They have excellent wear resistance and tensile strength, strong safety performance, and support sample and batch purchases. They can be stocked as needed.

Send Inquiry

Product Description

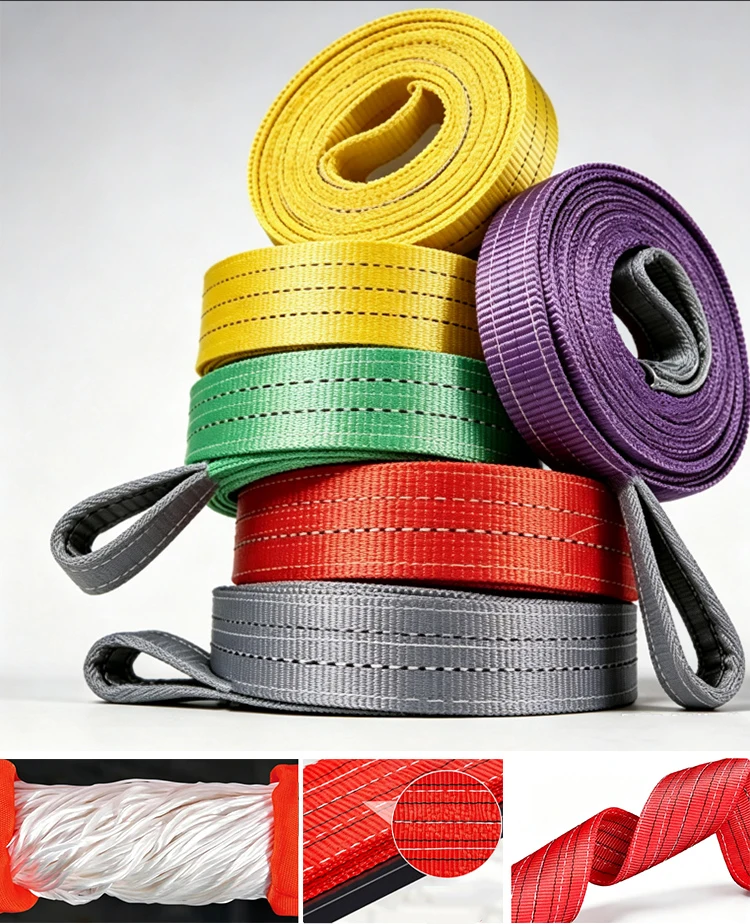

Multi-spec color-coded flat webbing sling are distinguished by rated load: 1 ton purple, 2 ton green, 3 ton yellow, 4 ton grey, 5 ton red, 6 ton brown, 8 ton grey, 10 ton red. Colors indicate tonnage. Operators can quickly identify tonnage by color and width on-site to prevent misuse caused by overloading.

Hebei Shengyu Lifting Machinery Factory provides fast delivery with cost-effective products. Customization is available for sling length and weaving layers. Both small-batch and large-volume orders are accepted. Customers at home and abroad are welcome to contact us for business cooperation.

Product Parameter Table

WLL	Width	Ply	Thickness	Breaking Force	Color
1T	30mm	2	5mm	5 times	Purple
2T	50mm	2	5mm	5 times	Green
3T	75mm	2	5mm	5 times	Yellow
4T	100mm	2	5mm	5 times	Grey
5T	125mm	2	5mm	5 times	Red
6T	75mm	2	10mm	5 times	Brown
8T	100mm	2	10mm	5 times	Grey
10T	125mm	2	10mm	5 times	Red

Core Advantages

1.Thickened Wear-Resistant Lifting Eyes

The lifting eyes are reinforced by high strength abrasion-resistant polyester yarn to prevent breakage.

2. Soft yet Tough, High Tensile Strength

Wear-resistant with soft & smooth texture, it will not scratch or damage the lifted objects.

3、Super Thick Fiber Yarn

Sufficient material for reliable safety, endless-loop parallel arrangement structure.

4、Polyester Material, Corrosion-Resistant & High Tensile Strength

Good chemical property, enhanced mildew resistance, durable under sun and rain.

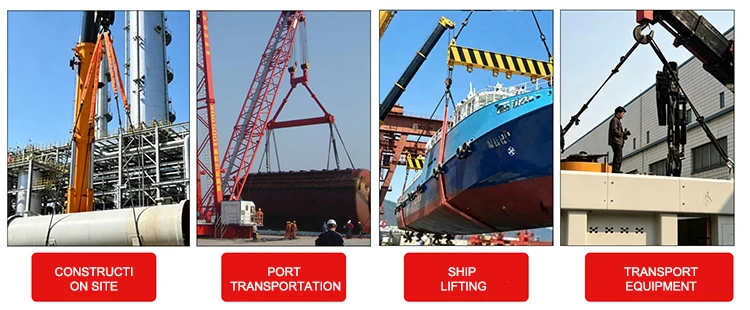

Application Scope

Multi-spec color-coded flat webbing slings are widely used in machinery processing, iron and steel metallurgy, ports & terminals, electric power and wind power, precision equipment, warehousing & logistics, mold lifting and other scenarios. They are especially suitable for scratch-prone finished workpieces and multi-spec operations requiring frequent switching of lifting slings by tonnage. They are the preferred lifting slings for factories and rental companies to reduce costs and improve efficiency.

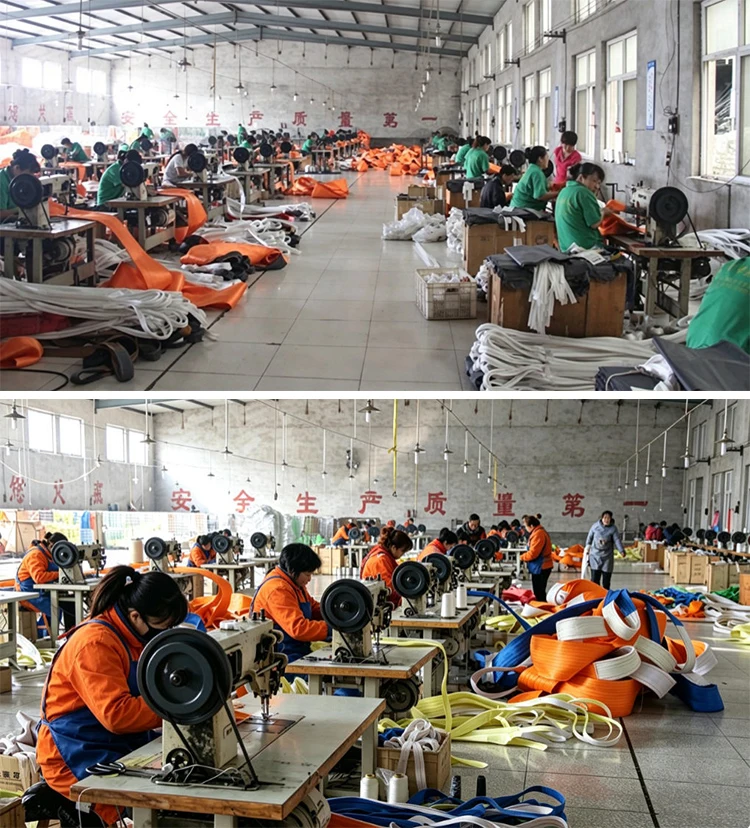

Our Factory

The multi-spec color-coded flat webbing slings produced by Hebei Shengyu Lifting Machinery Manufacturing Factory are inspected piece by piece before shipment with standardized color codes, putting an end to workpiece scratches caused by metal lifting devices. With a well-established after-sales system, the factory supplies distributors and factory warehouses directly at outstanding value — a reliable source factory for lifting slings. Call us for a specific quotation.
