Webbing Sling

Hoisting Machinery Manufacturing Co., Ltd. Factory’s high quality webbing sling is a flexible lifting tool woven from high-performance synthetic fibers, mainly used for safely and efficiently lifting and moving various loads. Compared with metal slings, its core advantages lie in protecting the surface of the lifted object, being lightweight, flexible to operate, and easy to store. According to different structures and uses, it can be divided into various types, suitable for a wide range of scenarios from aerospace components to ordinary factory goods.

Product Classification

1.Classified According structure ribbon sling can divided :

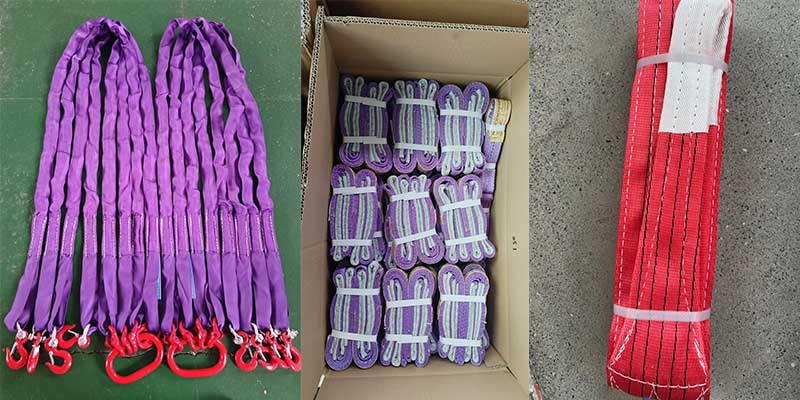

Flat ribbon sling: The most common type, woven from fibers in parallel into a flat strip, with a large contact area with the load-bearing surface。

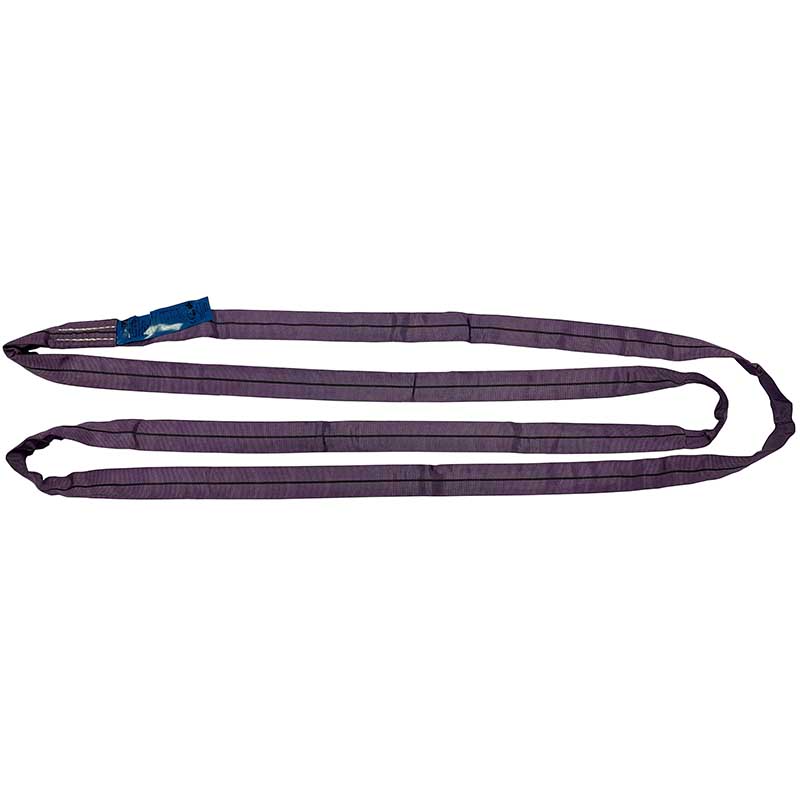

Circular webbing: Woven into a tube shape, softer and suitable for tying irregular objects.

A sling with metal end fittings: Webbing Sling is equipped with hooks, rings, shackles, etc. at both ends, making it easy to directly connect to the crane hook.

2.Classified according raw material ribbon sling can divided:

Polyester sling: The most commonly used, with high strength, acid and alkali resistance, low elongation, suitable for most general occasions.

Nylon sling: It has good elasticity, can absorb impact loads, is wear-resistant, but is afraid of strong acids.

Polypropylene sling: Completely waterproof, anti floating, good chemical corrosion resistance, commonly used in humid or corrosive environments such as marine and chemical industries.

3.Classified by carrying capacity and color ribbon sling can divided:

Purple 1Ton green 2Ton Yellow 3Ton Grey 4-5Ton Red more than 5Ton

Main Usage

Manufacturing：Transport molds, mechanical equipment, steel, plates, and so on.

Logistics and warehousing: Loading and unloading containers and palatalized goods.

Wind power and energy: Hoisting wind turbine blades, tower tubes, and generator components.

Aerospace: Handling aircraft components and precision instruments.

Ship and ocean engineering: Launching ships, module hoisting.

Construction industry: Installation of prefabricated components and glass curtain walls.

Art and Exhibition: Hanging Heavy Artworks, Stage Equipment.

Key Parameters

Safe working load capacity: The maximum static load that the Webbing Sling is allowed to withstand under design conditions is the core safety parameter.

Ultimate working load: The maximum load that a sling can withstand before failure (usually 5-7 times SWL).

Length: refers to the effective length used (such as from the center of the eye ring to the center of the eye ring).

Width and thickness: affect contact area and flexibility.

Material: determines chemical resistance, water absorption, elongation and other characteristics.

End piece types: such as eye rings, J-hooks, rotary locks, etc., need to be matched with the lifting point.

Features

1.Load protection: Soft, does not scratch, squeeze precision or polish surfaces.

2.High safety factor: The safety factor is usually between 5:1 and 7:1, far exceeding many metal slings.

3.Lightweight and easy to operate: The weight is only 20% of the same load-bearing capacity steel wire rope, greatly reducing labor intensity.

4.Strong flexibility: easy to knot and hang, suitable for complex shaped loads.

5.Easy to store: can be rolled up for storage, saving space.

6 Corrosion resistance: Synthetic fibers have good resistance to various chemicals and humid environments.

7 Insulation: non-conductive, safer in certain electrical environments.

Precautions for use about Baiyi’s ribbon sling

1.Pre use inspection: Before each use, the webbing must be carefully inspected for cuts, wear, burns, chemical erosion, frayed threads, or blurry or missing labels. If you have any doubts, stop using immediately.

2.Correct selection: Choose the appropriate type, length, and SWL sling based on the load weight, shape, center of gravity, and lifting method.

3.Overloading is strictly prohibited.

4.Standardized hanging: Ensure that the sling is in the correct position on the hook, avoiding twisting, knotting, or stacking. When using a multi limb sling, pay attention to the angle between the limbs (standard ≤ 90 °), as increasing the angle will significantly reduce the overall lifting capacity.

FAQ

Q1: Which is better, webbing sling or steel wire rope?

A: There is no absolute 'better', only 'more suitable'. Ribbon straps are lighter, more protective of loads, and easier to operate, but they are afraid of cutting and high temperatures; Steel wire rope is more wear-resistant and heat-resistant, but it is bulky, prone to damage loads, and prone to knotting. The selection should be based on specific application scenarios.

Q2: Can the sling still be used if it gets wet?

A: It depends on the material. Polypropylene suspender is waterproof, and its strength remains unchanged when wet. Polyester and nylon can absorb water, leading to an increase in weight and possible growth of mold. Long term moisture can affect strength, and the wet strength coefficient provided by the manufacturer should be referred to when wet. It should be dried before use.

Q3: What if the label on the sliding is lost?

A: Stop using immediately. The label is the "ID card" of the sling, which contains key information such as SWL, material, length, etc. Straps without labels cannot confirm their safety status and specifications, and must be forcibly scrapped.
