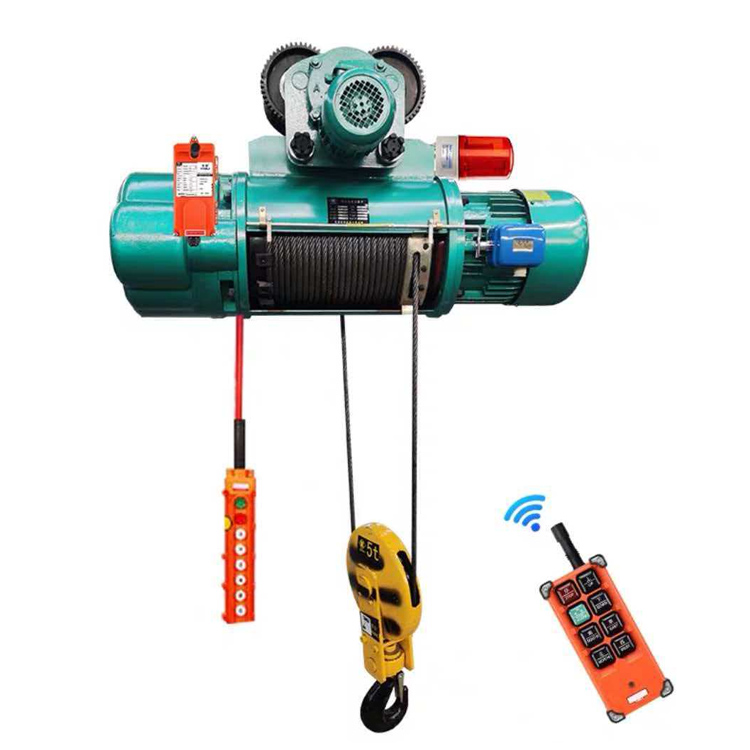

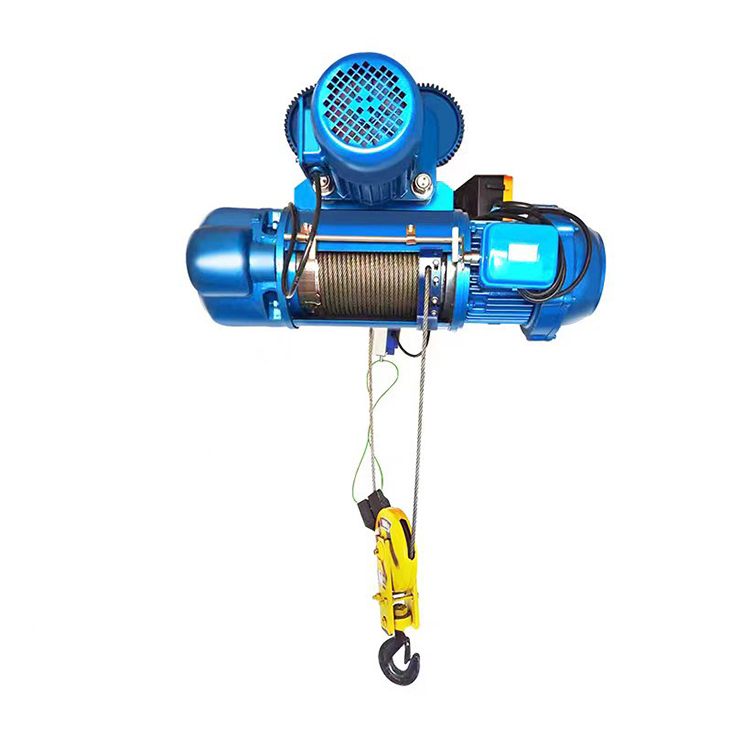

MD1 Electric Hoist

The MD1 electric hoist is a dual-motor hoist with a coaxial arrangement of conical rotors. Its main features are compact structure, light weight, and reliable safety. The MD1 electric hoist manufactured by Hebei Shengyu features dual-speed switching (8m/min (normal speed) / 0.8m/min (slow speed)) and 36V low-voltage control / wireless remote control. Lifting capacity ranges from 0.5 to 20t, and lifting height from 6 to 30m, all selectable or customizable. It has a standard M3 working class and IP44/IP54 protection rating. It is mainly used for precision installation, mold closing, machine tool maintenance, and other delicate operations.

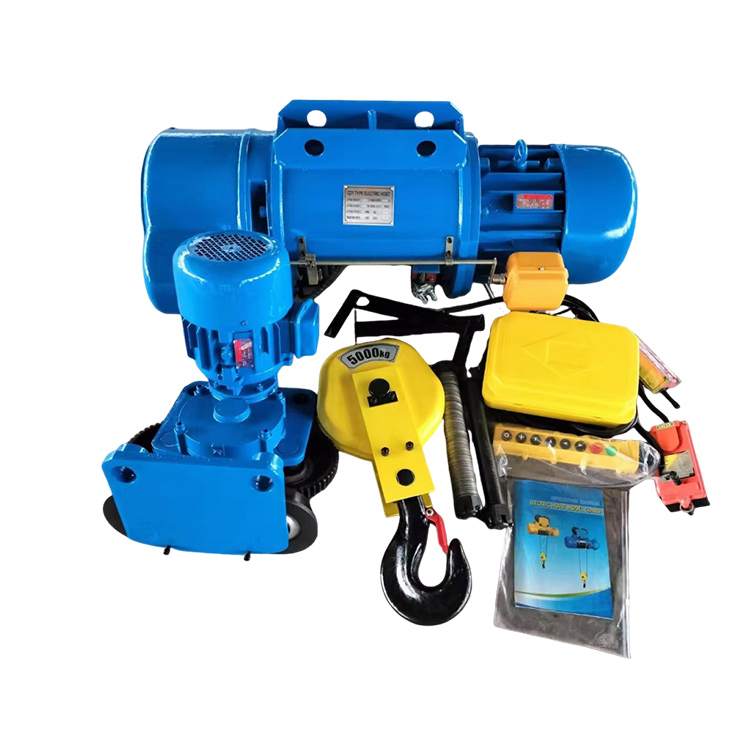

Advantages compared to the CD1 single-speed hoist:

1. The MD1 electric hoist dual-speed hoist is more precise and efficient. Even at a slow speed of 0.8m/min, it achieves precise control with a positioning accuracy of ±5mm, perfectly suited for precision mold/equipment installation.

2. Safe and controllable: The conical rotor motor has a built-in brake, stopping immediately upon power failure; greatly increasing safety.

3.Using both fast and slow speeds increases overall efficiency by 30%, reducing rework.

4.80% of its parts are interchangeable with the CD1 hoist, resulting in lower maintenance costs.

Product parameters

FAQ

1. Will using the slow speed consume extra power?

No. Because the slow speed is driven by a low-power auxiliary motor, the overall energy consumption is lower.

2. Can a wireless remote control be installed to the MD1 Electric Hoist?

Wired control is standard, and a wireless remote control can also be added according to customer needs.

3. What is the service life? Is the maintenance cost high?

The design life is approximately 10 years / 20,000 hours, and the life of vulnerable parts is 1-2 years; maintenance costs are low.

4. Can non-standard customization be done?

Yes, customization is possible according to customer requirements.
