HHBB Electric Chain Hoist

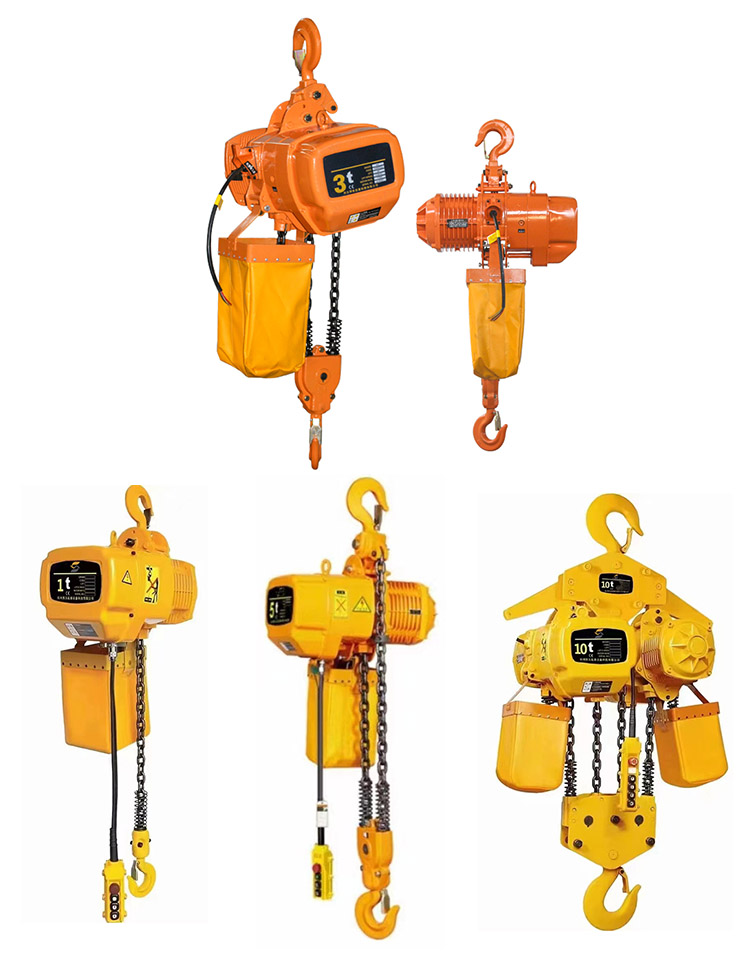

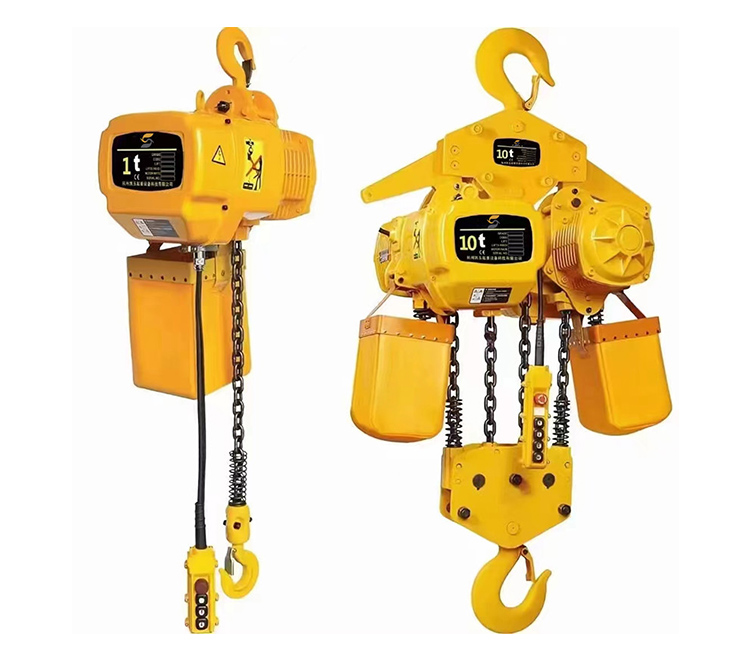

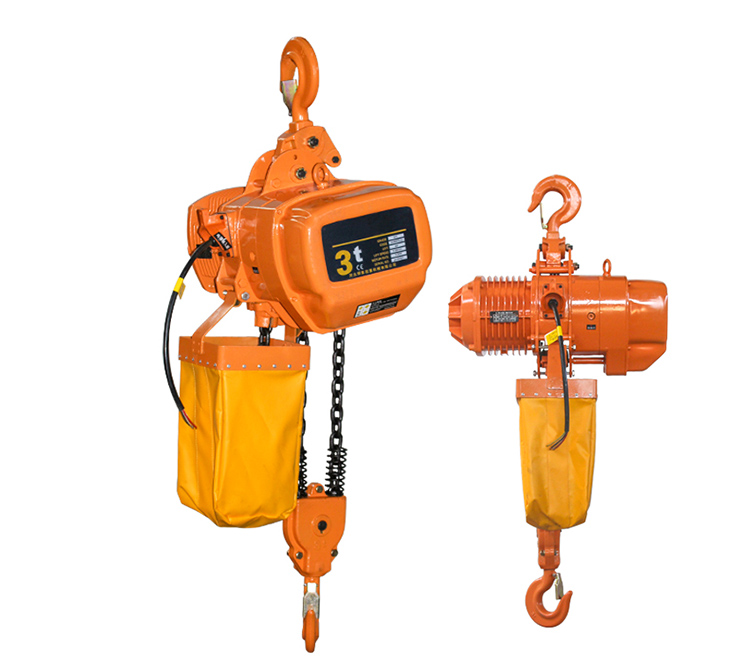

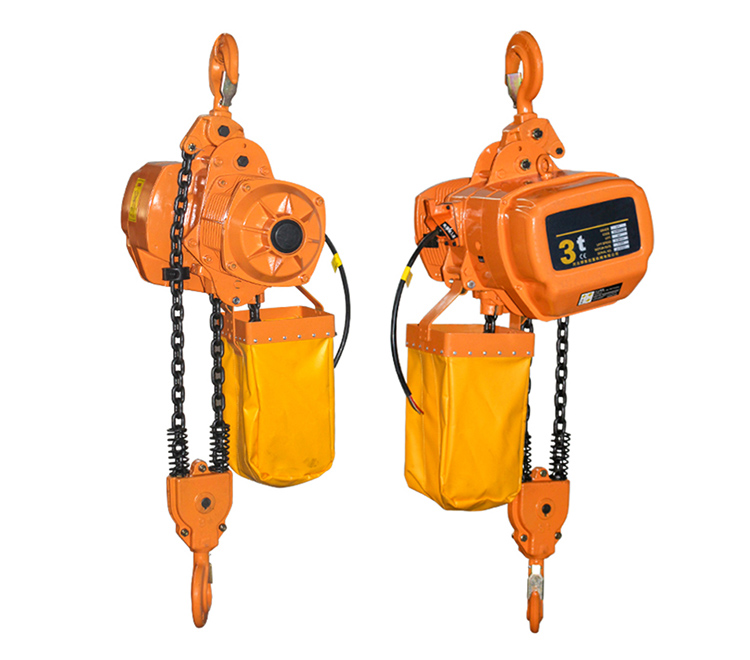

China supplier Hebei Shengyu HHBB electric chain hoist is a lightweight, Japanese-style industrial-grade electric chain hoist. It is primarily powered by a three-phase brake motor, which drives a hardened gear reducer to power a high-strength alloy steel lifting chain, causing it to circulate and achieve vertical lifting of heavy objects. It is typically equipped with a trolley that moves horizontally along an I-beam, thus enabling the lifting, lowering, and transport of heavy loads. Standard lifting capacities range from 0.5T to 10T, and lifting heights can be customized from 3 to 120m. It is generally available in fixed, mobile, and low-headroom installation configurations.

Send Inquiry

Product Description

Shengyu HHBB electric chain hoist are Japanese-style lightweight lifting equipment manufactured by Hebei Shengyu. They are mainly divided into stationary, mobile, and low-headroom types. Common specifications have lifting capacities of 0.5–10 tons, with other tonnages available upon customization. The standard lifting height is 3m, with customized heights from 3 to 120 meters. Key advantages include small size, light weight, and easy portability. They are highly adaptable, suitable for single/double beam hoists, cantilever cranes, gantry cranes, and other equipment.

Details:

Motor：Tapered rotor brake motor / side magnetic brake motor, with copper core winding, built-in overheat protection, protection class IP54.

Reducer：Two-stage hard tooth surface gear (20CrMnTi carburized and quenched), oil bath lubrication, featuring low noise and long service life.

Chain System:Grade 80 alloy steel chain (e.g. FEC imported chain), with high strength, excellent wear resistance and toughness; equipped with sprocket and wear-resistant leather chain bag.

Braking Device:Dual brake system (electromagnetic disc brake + mechanical brake), instant self-locking when power is off, with large braking torque, stable braking and no slip

Safety Protection:Upper and lower limit switches, reverse phase protection, 24V/36V low voltage control, optional overload protection, and anti-drop hook safety device.

Lifting Hook:Forged 40Cr steel, 360 rota table, 4 times safety factor, with high temperature plastic plating for rust prevention

Housing:High-strength aluminum alloy, fully sealed structure, with fast heat dissipation,light weight, dust proof and moisture proof performance.

Control Handle:Waterproof buttons with emergency stop function, 24V/36V low voltage design for electric leakage prevention.

Electric trolley(for mobile type):Electric trolley compatible with I-beam track, featuring stable operation and lownoise.

Product Advantages

1. Safe and Reliable: The entire HHBB Electric Chain Hoist adopts dual brakes + limit/reverse phase/low voltage/overload protection, with self-locking upon power failure, making it safer to use.

2. Compact Structure: The entire casing is made of aluminum alloy, making it lighter and smaller than the CD1.

3. Robust and Durable, Higher Efficiency: Hardened gear reducer + G80 chain, long service life.

4. High Adaptability: Can be fixed or used with a trolley; suitable for I-beams, single/double beams, cantilever cranes, and gantry cranes.

Product parameters

Model	Lifting Capacity	Lifting Speed(m/min)	Motor Power(kW)	Chain Diameter(mm)	Net Weight(kg)
HHBB0.5	0.5	7.8	1.1	6.3	approx.45
HHBB1	1	6.8	1.5	7.1	approx.58
HHBB2	2	6.8	2.2	9.0	approx.75
HHBB3	3	5.8	3.0	11.2	approx.105
HHBB5	5	4.8	4.0	14	approx.150
HHBB10	10	3.8	7.5	18	approx.280
