Floor Jack

Hebei baiyi hoisting machinery manufacturing co., ltd’s as a manufacture for floor jack is famous according to best quality.Also known as low height jack or floor jack, is a lifting tool that can be placed horizontally and can stably convert horizontal thrust into vertical lifting force through hydraulic or mechanical transmission. The most important characteristics of horizontal jacks are compact structure, low minimum height, and small storage space required. Therefore, they are very suitable for space limited occasions such as automobile maintenance, logistics loading and unloading, and equipment installation, and play an irreplaceable role.

Send Inquiry

Product Description

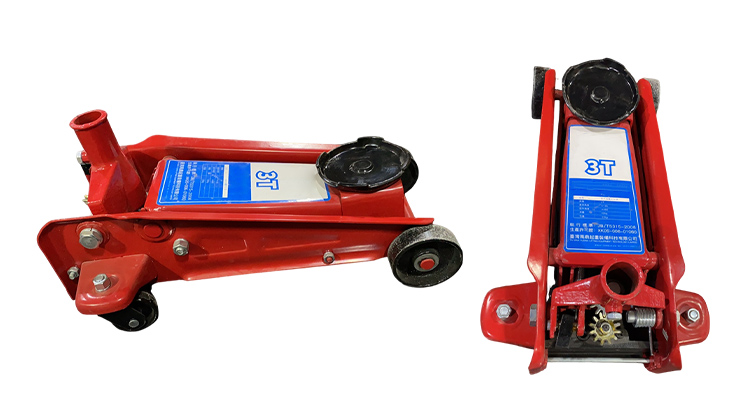

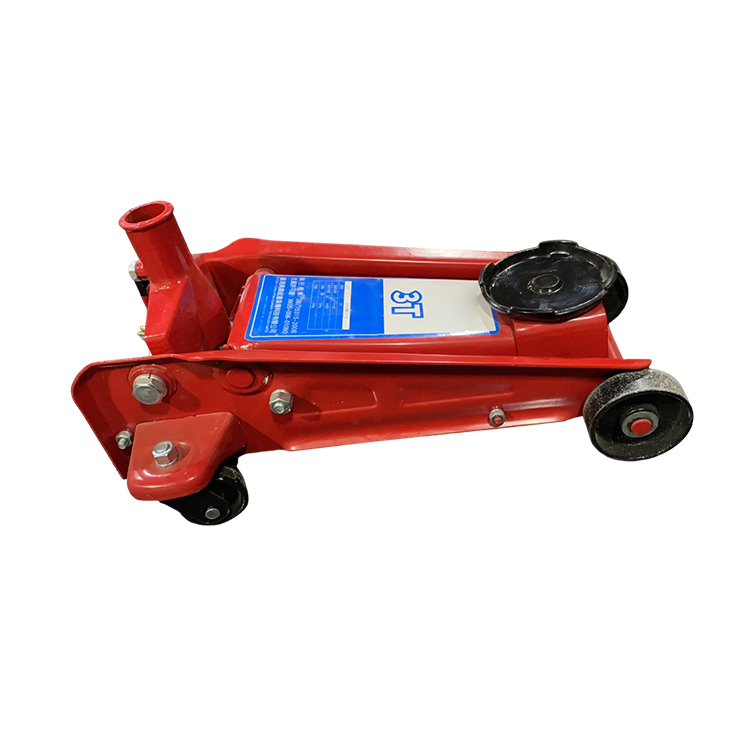

Baiyi floor jack is a key category of portable lifting equipment, and its most important core advantage lies in its "low posture, large stroke". The horizontal jack solves the problem of ordinary jacks being unable to reach in during vehicle maintenance due to the low chassis of the vehicle, by using a horizontally placed pump body and a vertically extending piston. Due to its excellent portability, stability, and strong lifting ability, it has become a standard tool for modern auto repair shops, 4S stores, and home garages.It is mainly composed of hydraulic pump, main cylinder, piston rod, control valve, one-way valve, unloading valve, rocker arm/connecting rod mechanism, top pad/saddle, base, operating handle, moving wheel set and safety valve.

Date

Parameter Item	Typical Range / Example	Description
Rated Load Capacity	2 ton, 3 ton, 5 ton, 10 ton, 20 ton	The most critical parameter. Must exceed the weight of the object to be lifted, with a safety margin included.
Minimum Height	80mm - 150mm	The key factor determining if the jack can fit under low-clearance vehicles. A smaller value provides greater adaptability.
Maximum Height	400mm - 600mm	The maximum attainable height when the piston/ram is fully extended.
Lifting Range (Stroke)	Approx. 300mm - 500mm	The effective vertical distance the jack can lift, from its minimum to maximum position.
Pump Type	Hydraulic / Pneumatic / Electric	Hydraulic / Pneumatic / ElectricHydraulic is the most common. Pneumatic requires an air compressor but is faster and requires less effort. Electric is the most convenient.
Net Weight	15kg - 50kg	Positively correlated with the load capacity. Affects portability.
Handle Length	Extendable, approx. 600mm - 1200mm	Provides a lever for operation. Affects the effort required and the operating space needed.

Characteristics

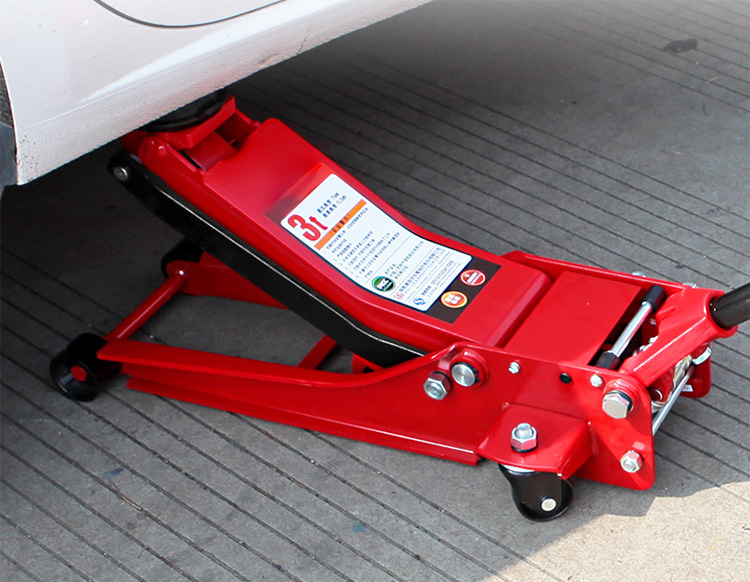

1. Low and compact appearance: Due to its low and compact shape, it can easily fit under the chassis of most family sedans and sports cars, effectively solving the problem of "not being able to enter".

2. Small size, lightweight, and easy to carry: usually equipped with universal wheels and traction rods, it can be easily moved; Using hydraulic/pneumatic drive, the operation is relatively effortless.

3. Fast lifting speed: Compared with traditional screw jacks and hydraulic horizontal jacks, floor jack have higher lifting efficiency.

4. Good stability: Due to its large base contact area, some models can also come with a wide top pad, making it more stable when lifted.

5. Widely used: In addition to automotive maintenance, it can also be well applied for local lifting of large equipment or components in factories and warehouses.

Precautions for use

1. Overloading is strictly prohibited: never exceed the rated load capacity, otherwise it may cause accidents.

2. Correct support points: must be supported at the designated support points. For example, the designated lifting point on the vehicle chassis (usually with grooves or reinforcement ribs) must not be placed on top of the fuel tank, exhaust pipe, suspension components, or plastic parts.

3. Solid and flat ground:floor jack must be used on a hard and flat ground (such as cement ground). If the ground is not hard enough, thick wooden boards must be placed under soft ground (such as sandy soil) to strengthen support.

4. It is strictly prohibited to enter the bottom of the vehicle: After lifting the vehicle, safety brackets must be used for secondary support on both sides of the vehicle. The jack is only used as a lifting device, not a long-term support device. Only after the secondary support is completed can personnel enter.

5. Slow and steady operation: Both lifting and lowering should be done at a constant speed to avoid impact loads. When descending, especially slowly release the valve to prevent the vehicle from suddenly falling and causing accidents.
