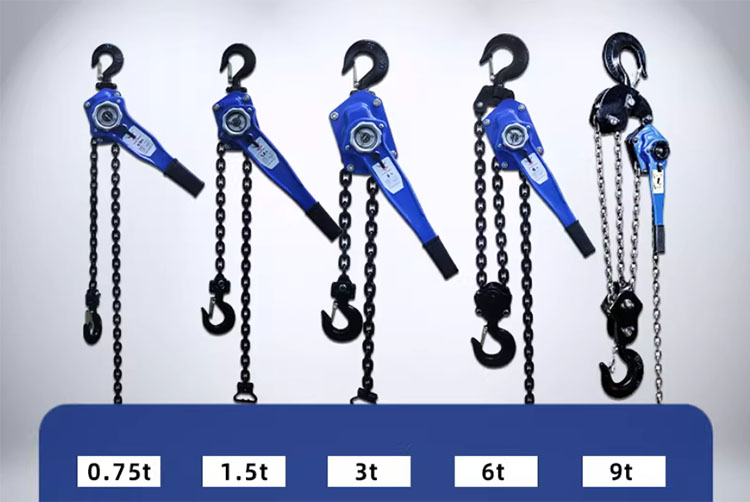

9T VA Lever Hoist

1 Baiyi factory 9T VA Lever Hoist is a large-tonnage manual lifting equipment.

The core advantage of this equipment is its versatility and high safety. It is not only suitable for vertical hoisting, but also can be used for horizontal, inclined and even upside-down towing, and the working angle is very flexible. Its gear transmission mechanism is designed to save labor, and the operating force at full load is usually within 360N. It is an indispensable classic hand tool in industrial maintenance, equipment installation and emergency rescue.

2  Date sheet:

3  comparative advantage

Compared with similar tonnage hand chain hoists or small electric hoists, the 9T VA lever hoist has the following unique advantages:

  1. Does not rely on power supply: The work relies entirely on manual operation and does not rely on any power supply. It is especially suitable for outdoor, high-altitude or temporary operations.

  2. Traction at any angle: It can be towed 360 degrees. It can not only be lifted vertically, but also horizontally, tilted and even upside down. It has a wide range of applicability.

  3. Effortless operation: It uses the lever principle and adopts two- or three-stage gear transmission. For example, a 9-ton weight can be moved with only about 36 kilograms of force (360N), which is very efficient.

  4. Quick adjustment: Each 9T VA lever hoist is equipped with a brake clutch device. When no load is used, the chain can be quickly pulled to adjust the hook position, saving time.

  5. Double pawl safety: Braking systems usually adopt a double pawl design. Even if one pawl fails, the other one can still lock, which is highly safe.

4   Main use:

9T VA lever hoist is mainly used in the following fields:

• Electrical construction: used for wire erection, wire tightening, sag adjustment, and installation and maintenance of other related electrical equipment.

• Mining and construction: used for installing various required equipment, lifting goods, and pulling machinery.

• Ship manufacturing and repair: used for various traction and hoisting operations such as hull segment positioning, equipment hoisting, and relatively small spaces in ship cabins.

• Transportation: used for vehicle rescue, cargo bundling and fixation, etc.

5  Maintenance:

To ensure safety, the 9T VA lever hoist needs to be maintained regularly:

 1. Daily cleaning: After each use, the mud and ash layer on the chain and casing should be promptly removed and kept clean and dry.

 2. Regular lubrication: Lubricating oil needs to be applied to gears and bearings regularly. Please note during this period: the brake friction discs are strictly prohibited from being contaminated with any grease, otherwise it will cause brake failure and pose a safety hazard.

 3. Chain inspection: Check the chain for kinks, cracks, and wear. When the diameter is reduced to 90% of the original chain, a new original chain must be replaced.

 4. Brake test: A no-load test must be performed before each use to check whether the handle is flexible and whether the brake is intact.

6 FAQ

Q1: Can the 9T VA lever hoist be overloaded?

A: Overloading is strictly prohibited. It can only lift heavy objects within 9T. Overloading will damage the machine parts and even cause breakage accidents. If it is necessary to carry people, the lifting capacity should be reduced to 1/3 of the rated value (ie 3 tons).

Q2: What should I do if the handle cannot be pulled during operation?

A: Stop the operation immediately. Check for overloading, kinked chains, or foreign objects stuck in the gears. Never force it.

Q3: Why can the chain pull quickly when there is no load, but it takes effort to pull the handle when the load is heavy?

A: This is normal. When there is no load, the brake clutch device is open, and the chain can easily move freely; when the load is heavy, the gear transmission and brake are locked, requiring manpower to overcome the heavy load.
