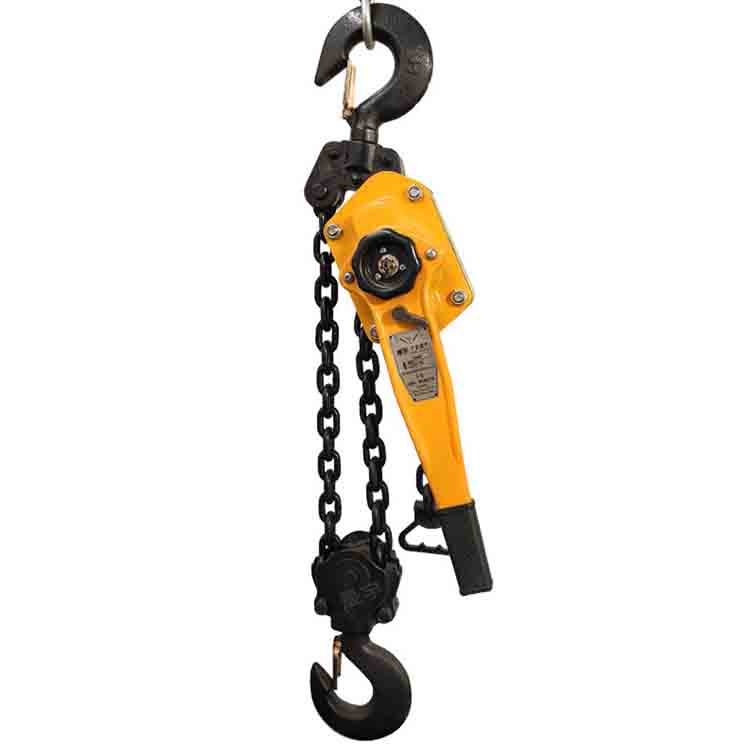

6T VA Lever Hoist

Hebei Baiyi as a experienced producer for lifting and hoisting manufacture. The 6T VA lever hoist is Baiyi’s main products. It is a rated lifting capacity of 6 tons, a manual lever-type lifting and towing device, which is a standard VT series manual chain hoist. During operation, it primarily relies on manually turning the handle to drive the ratchet and chain, enabling the lifting, lowering, horizontal towing, and positioning of heavy loads. The 6T VT type manual chain hoist is widely used in power, construction, shipbuilding, mining, and other confined, elevated, or power-free outdoor working environments.

Send Inquiry

Product Description

Baiyi factory producing 6t VA lever hoist more than 15 years. The 6T VA lever hoist mainly adopts G80 grade high-strength alloy steel chains, forged and heat-treated hooks, and aluminum alloy bodies, It is suitable for engineering equipment installation, heavy lifting during construction, line tightening, mechanical pulling, etc. It is an efficient and reliable manual lifting tool in the industrial and engineering fields.

CONTECTS

Main body	Aluminum alloy/stainless steel pressing cover, protecting the internal transmission mechanism, lightweight and sturdy
handle assembly	Leverage type operating handle with anti slip design, controlling lifting/lowering/neutral three gears
Transmission system	Ratchet, pawl, gear set, achieving one-way self-locking and power transmission
lifting chain	G80 grade alloy steel chain, wear-resistant, tensile resistant, safety factor ≥ 4 times
Up and down hooks	Forged heat treated hook with anti slip snap spring, capable of bearing weight without brittle fracture and only slowly deforming
limit stop	Upper and lower limit switches prevent chain overtravel and enhance safety

Date

Parameter	Value
Rated lifting capacity	6t(6000kg)
Standard lifting height	1.5m(customizable to 2.5m/3m,etc.)
Test load	9t(1.5 times the rated load)
Lifting chain diameter	9-10mm (G80 alloy steel)
Hand pull force (full load)	≤350N
Minimum distance between hooks	Approx.650mm
Net weight	18-28kg (approx. 18kg for aluminum alloy type, approx.27.6kg for steel type).
Chain material	G80 grade high-strength alloy steel
Body material	High-strength aluminum alloy /precision steel
Safety factor	≥4 times
Applicable environment	-20°C~+60°C, indoor/outdoor /high altitude / confinedspace

Features

Light weight and easy to carry

6T VA lever hoist optimize gear transmission, easy to operate, and less prone to fatigue during long-term work

Safe and reliable, hook can prevent detachment, ratchet can self lock, and triple protection of upper and lower limits

6T VA lever hoist can support vertical lifting, horizontal traction, and diagonal traction, suitable for multiple scenarios

Modular structure, simple daily maintenance, long lifespan, durable and easy to maintain

Flexible customization: The lifting height can be extended as needed to adapt to different operational situations

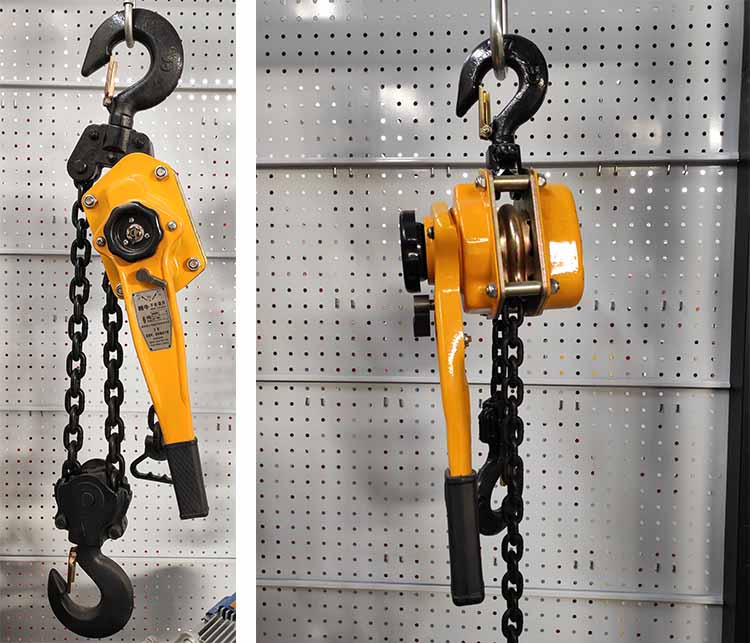

6T VA Lever Hoist

Noted

Precautions for use is must for 6T VA lever hoist

Pre use inspection: Confirm that the chain and hook anti slip spring are intact

Smooth gear switching and effective braking of the test handle

Check the rated load and strictly prohibit overloading (maximum lifting capacity of 6T hoist ≤ 6t)

Operating Specifications for 6T VA lever hoist are necessary

Before lifting, ensure that the heavy object is firmly tied and the hook is hung correctly to avoid diagonal pulling and lifting

Pull the handle and apply force uniformly.

When hovering heavy objects, be sure to place the handle in the neutral position and prohibit prolonged suspension

No standing below

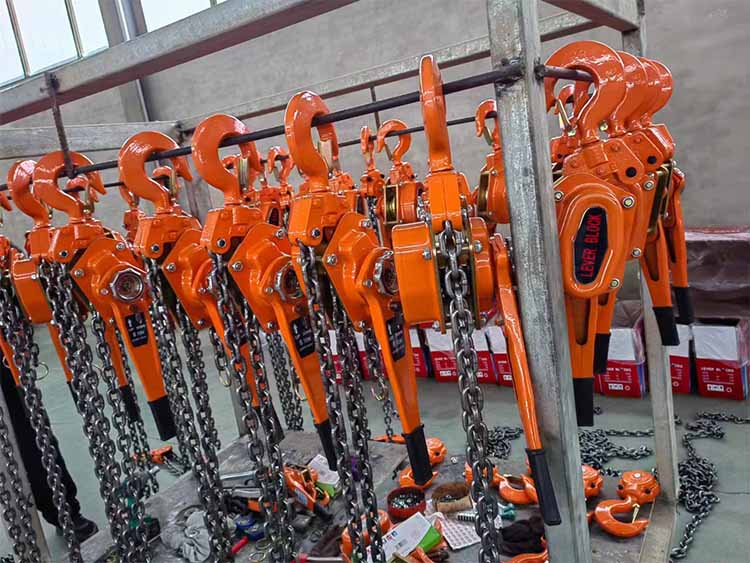

6T VA Lever Hoist

FAQ

Q1：Can the 6T VA lever hoist be pulled horizontally?

A: Okay. VT type supports horizontal/diagonal traction, suitable for equipment displacement, line tightening and other work, but the traction cannot exceed the rated load.

Q2: What if the lifting height is not enough?

A: Customized extended chains can be made according to requirements.

Q3: Does chain wear require replacement?

A: No, if the diameter of the chain wears out by more than 10% of the original size, cracks/deformations/severe rusting occur, or if the chain links get stuck, they must be replaced immediately.

Q4: What is the reason why the handle cannot be pulled?

A: Common reasons: ① Exceeding the load; ② Chain knot ③ Gear/pawl jamming; ④ The brake is not released.
