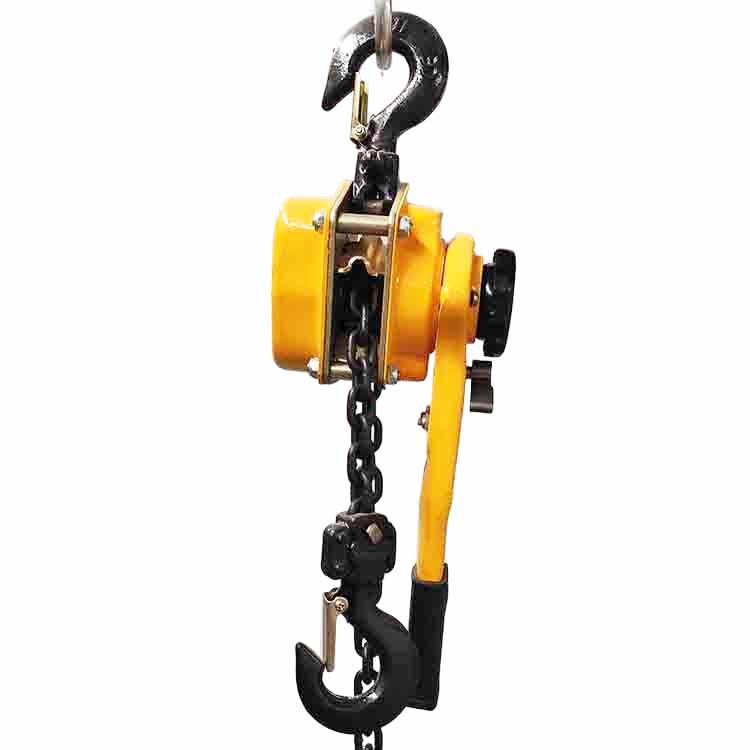

3T VA Lever Hoist
Hebei Baiyi’s 3T VA lever hoist is a manually operated lifting device that uses gear transmission to lift heavy objects. It has a rated lifting capacity of 3 tons and works by manually reciprocating the lever to raise or lower the load.It is portable, easy to operate, and ideal for lifting operations in environments without power.As a lifting and hoisting equipment factory, Baiyi’s 3T VA lever hoist including:Lifting chain: Made of G80 material conforming to national standards; Gear transmission system: A complete gear system, handle, ratchet and brake device, upper and lower hooks, machine body shell and braking system.
The 3T VA lever hoist is a lightweight, manually operated lifting tool with a maximum lifting capacity of 3 tons and a standard lifting height of 3 meters. It can be extended using an extension chain. Employing a dual ratchet braking system, it is safe and reliable, suitable for various power-free operating environments.
Parameter table
| Parameter Name | Value | Unit |
| Rated Lifting Capacity | 3 | t |
| Standard Lifting Height | 3 | m |
| Handle Operating Force | ≤350 | N |
| Net Weight | 16.5 | kg |
| Lifting Chain Specification | 10×30 | mm |
| Minimum Breaking Load | 90 | kN |
Features
*Safe and reliable to use: Employs a dual ratchet braking system with an automatic locking function.
*Easy to operate: A complete gear transmission system with optimized gear ratios for effortless operation.
*Highly portable: Lightweight and compact, easy to carry.
*Highly adaptable: The 3T VA lever hoist is small and lightweight, making it suitable for use at various angles and in confined spaces.
*Simple maintenance: Simple structure and low maintenance costs.
Application Scenarios
Suitable for temporary lifting operations on construction sites, installation and maintenance of various factory equipment, handling of various goods in warehouses, field power engineering operations, and installation and maintenance of power lines, etc.
Precautions for Use
*Before use Inspection: Ensure the upper and lower hooks and chain are intact and undamaged.
*Overloading Strictly Prohibited: Do not exceed the rated lifting capacity of 3 tons.
*Proper Suspension: Ensure the suspension point is secure and reliable, and will not detach.
*Operating Procedure: Operate the handle at a smooth and even speed, avoiding impact loads.
*Regular Maintenance: Regularly apply lubricant and check braking performance.
FAQ
Q1: What is the maximum lifting height of the 3T VA lever hoist?
A: The standard lifting height is 3 meters. The chain length can be customized to extend to the required height.
Q2: Does it require regular lubrication?
A: Yes, monthly lubrication is recommended.
Q3: Can it be used upside down?
A: Upside-down use is not recommended, as it may affect braking performance.
Q4: Can the chain be replaced if damaged?
A: Yes, but a genuine original equipment manufacturer (OEM) chain must be used.
