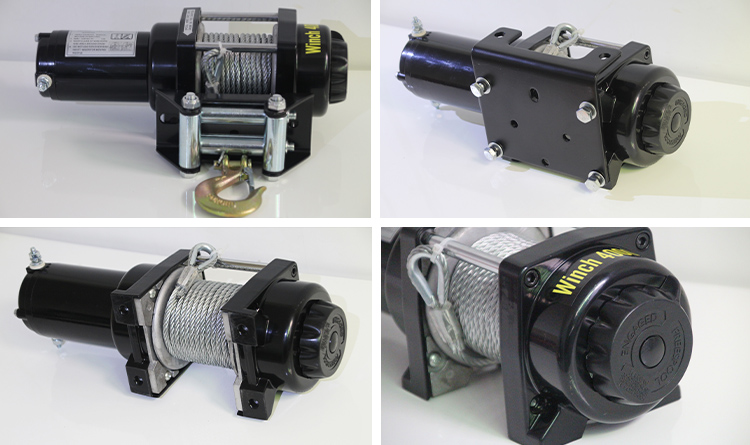

Hebei Shengyu Lifting Equipment Factory from China specializes in producing 4000lb vehicle electric winch for vehicles.This 4000-pound electric winch boasts ample pulling power and stable performance. Equipped with a pure copper waterproof motor and a robust transmission structure, it is wear-resistant, durable, and less prone to jamming. Suitable for off-road vehicles, vehicle-mounted self-rescue systems, and outdoor towing operations, it is easy to install and highly practical.

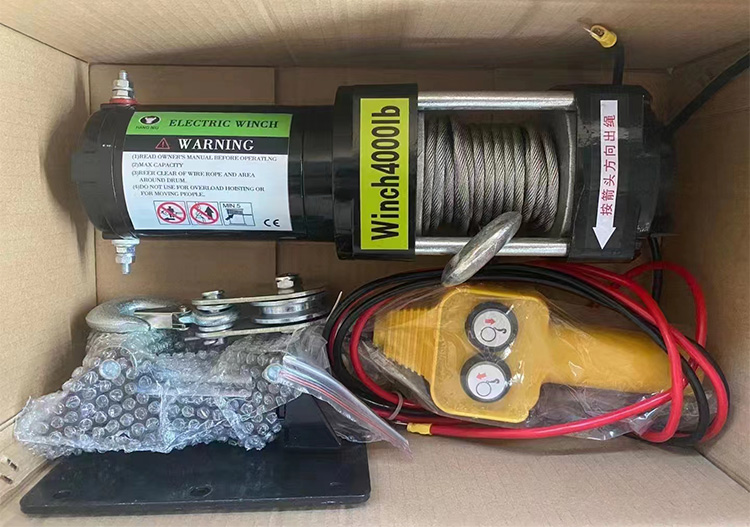

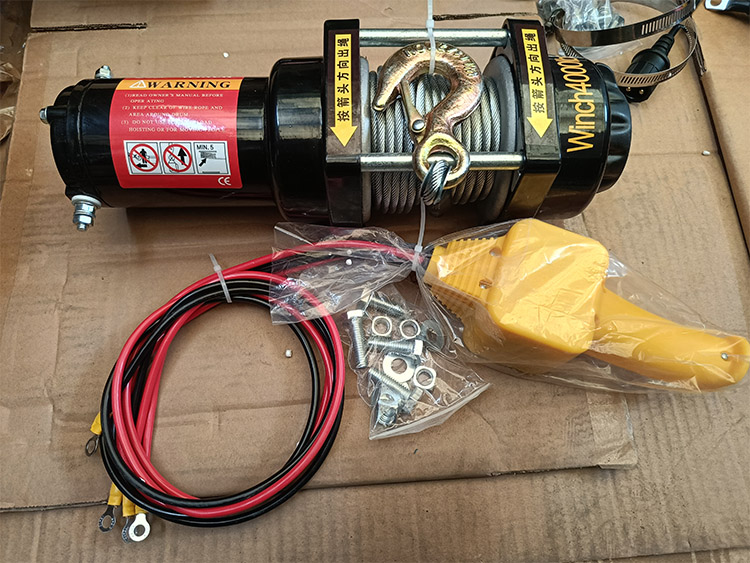

4000lb vehicle electric winch: compact size, lightweight (9 kg), 12V/24V DC voltage, 10-meter wire rope (5 mm diameter), no-load speed (6 m/min), horizontal traction (1000 kg), vertical lifting (500 kg), equipped with a wired handle switch, and a wireless remote control for long-range operation.
Parameters
Model
2000lbs
3000lbs
3500lbs
4000lbs
Output Voltage
12/24V
12/24V
12/24V
12/24V
Horizontal Tension
400KG
600KG
800KG
1000KG
Vertical Lifting Weight
200KG
300KG
400KG
500KG
Control Mode
Manual
Manual
Manual
Manual / Wireless
No-load Speed
6m/min
6m/min
6m/min
6m/min
Steel Wire Rope
4mm*6m
5mm*6m
5mm*8m
5mm*10m
Motor Material
All-copper Motor
All-copper Motor
All-copper Motor
All-copper Motor
Gross Weight
6KG
7KG
8KG
9KG
Dimension (mm)
286/100/105
399/100/105
340/110/112
353/110/112
Features
1.Powerful power configuration: 4000 lb vehicle electric winch has solid and sufficient traction. It is equipped with a high-performance copper motor, which provides smooth and powerful output, abundant torque, and stable performance in both endurance and acceleration. It is suitable for off-road self-rescue, emergency towing and rescue operations.
2.It adopts a planetary gear reduction structure, featuring high transmission efficiency, low operating noise, strong load-bearing capacity, smooth and unobstructed traction process, more stable force application, and better durability.
3.It is equipped with an automatic braking device, and the parking lock is firm and reliable, effectively preventing vehicle sliding and skidding. Combined with the manual clutch design, it allows for the release of the steel wire rope with just one click, making the operation simple and convenient, and ensuring safer operation.
4. Durable outdoor performance: The body is sturdy and durable, with waterproof and dustproof properties, and can adapt to complex and harsh working conditions such as mud and wilderness, resulting in a longer service life.
5.The 4000lb vehicle electric winch is flexible and easy to operate: it supports wired control, is easy to install, compact in size, and suitable for various scenarios such as off-road vehicle self-rescue, small equipment towing, and site handling.
Hebei Shengyu 4000lb vehicle electric winch with pure copper coil, safe and durable, with strong traction and lifting capabilities. Hebei Shengyu offers various models of electric winches for your selection. For inquiries, please call 15133220087 (WeChat ID is the same), or email kate@syhoist.com. Welcome to contact us!
