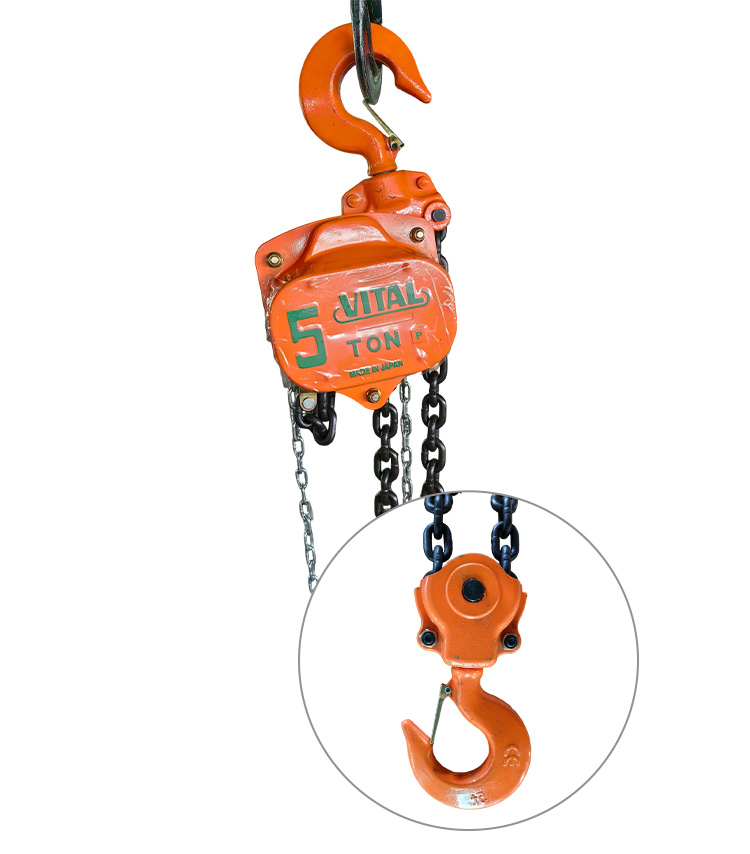

VT 5T Chain Hoist

The VT 5T chain hoist is an important member of the VT standard series hoist system from Hebei Baiyi Lifting Equipment Manufacturing Co., Ltd. Its rated load is 5000kg. It requires minimal manual labor to pull the chain, enabling vertical lifting and short-distance movement and positioning of objects weighing 5T or less. It requires no power supply and is suitable for both manufacturing and civilian applications.

Product Detail：

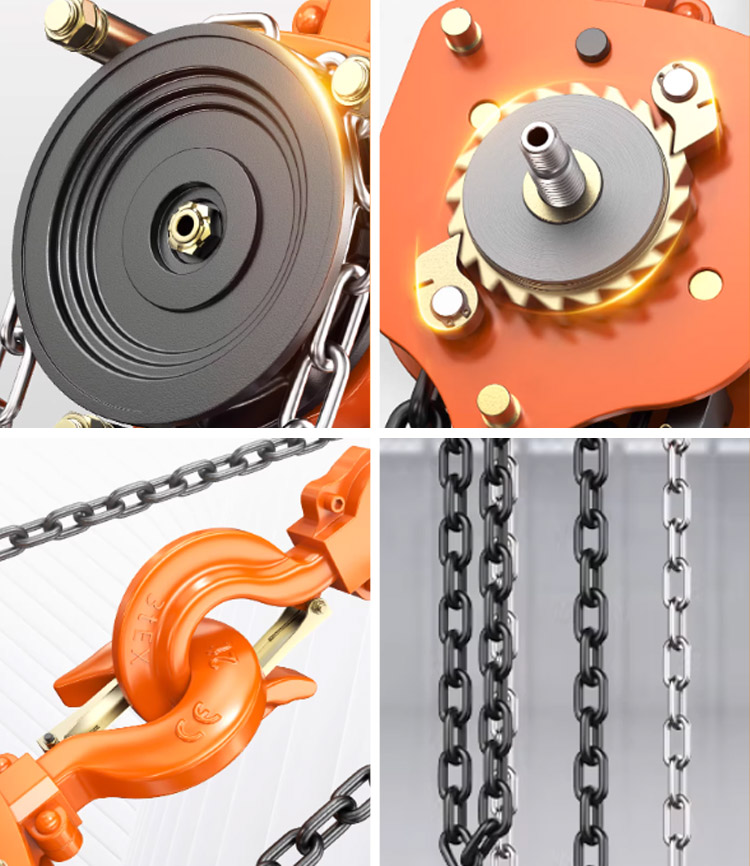

● Manganese steel high-strength ratchet, highly wear-resistant and fracture-resistant. It is processed through quenching technology to make the brake more stable and durable.

● Smooth bearings combined with enlarged drive sprocket, with no resistance and smoother operation.

● The manganese steel hook is equipped with a design to prevent detachment, making it even safer.

● G80 manganese steel chain, quenched and heat-treated, with strong pulling force.

Product parameters

Instructions for Use:

1. Before operation, check that all parts of the hoist are intact, and that the chain and hook are free from twisting, deformation, cracks, and severe rust. Ensure the hoist's brakes are functioning properly and sensitively. The weight of the load should be less than the rated load.

2. Secure the hoist to a sturdy anchor point, and suspend the load at the hook's stress point. Pull the hand chain evenly and slowly until the load reaches the desired position. The braking system will automatically lock, suspending the load. Release the brakes to lower the load, descending slowly and carefully. Do not descend too quickly.

3. After use, remove the hoist, clean it thoroughly, ensure the chain is straight, and store it in a cool, well-ventilated, and dry place.

FAQ

Q1: What should I do if the hoist slips or rolls during lifting?

A1: Check the friction plates for oil stains or wear. Clean them with industrial alcohol or replace the friction plates. If the ratchet or pawl teeth are worn, the entire ratchet assembly needs to be replaced.

Q2: Can the VT 5T be used outdoors/in rainy weather?

A2: It can be used for short-term outdoor operations, but it should not be exposed to rain or water. After use, dry it promptly and apply oil to prevent rust.

Q3: What is the difference between the VT 5T chain hoist and the ordinary HSZ type 5T hand chain hoist?

A3: The VT type is an optimized version: thickened housing, full bearings, double guide wheels, and a 360° rotating hook.It requires less pulling force, runs more smoothly, and has higher durability and safety.The triangular housing shape provides better heat dissipation and impact resistance.
