Vehicle Mounted Mini Crane

What are the adjustable parts of the boom of a vehicle mounted mini crane?

1. Manual three-position adjustable boom length (with pin);

2. Manual three-position adjustable boom angle (with pin);

3. 360-degree boom rotation (without dead angles).

What are the boom extension dimensions and load-bearing capacity of 500 kg and 1000 kg vehicle mounted mini cranes?

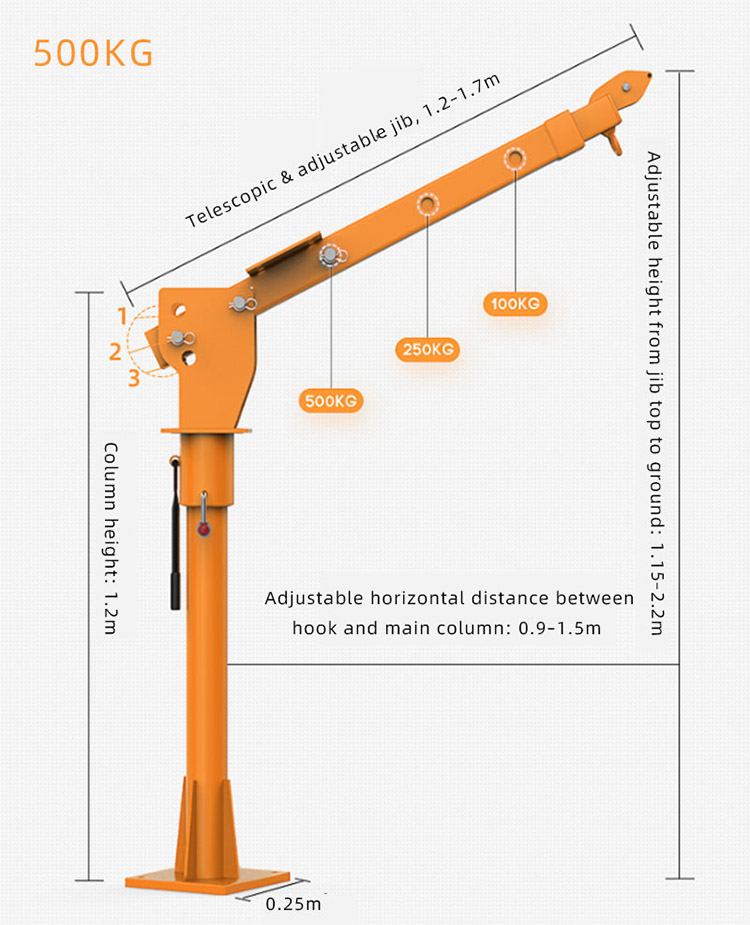

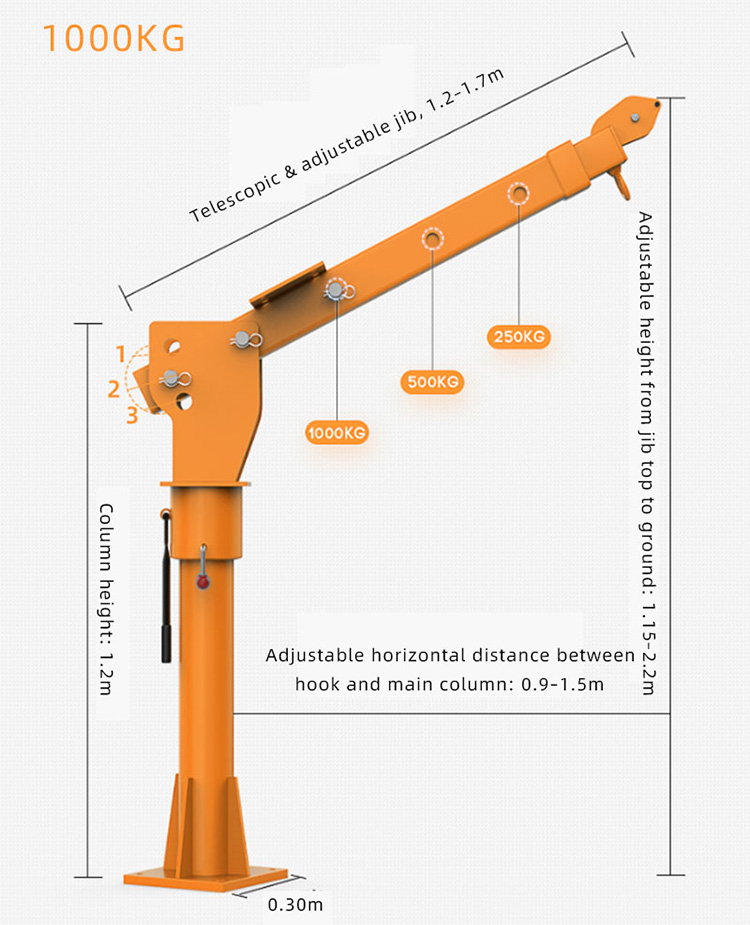

The telescopic length range for a 500 kg boom is 1.2 meters (load capacity 100 kg), 1.4 meters (load capacity 250 kg), and 1.7 meters (load capacity 500 kg). The telescopic length and load capacity range for a 1000 kg boom are 250 kg, 1.4 meters (load capacity 500 kg), and 1.7 meters (load capacity 1000 kg).

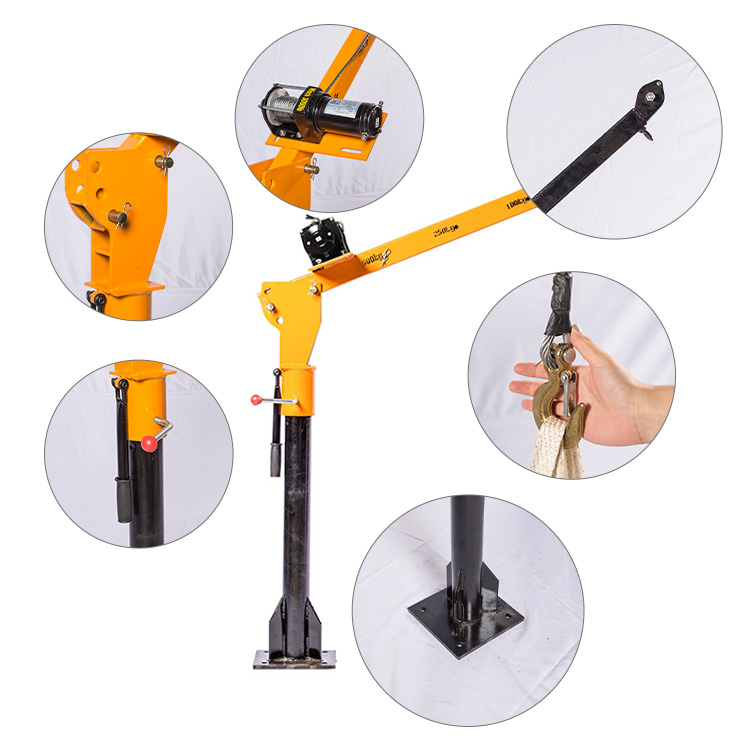

Product details

1. Thickened Base: This Vehicle Mounted Mini Crane is made of high-quality steel, secured with four-hole screws for stability and safety.

2. Reinforced Hook: High-strength hook with locking tabs to prevent detachment. It can hold heavy, tough objects without slipping, ensuring safety.

3. Directional Positioning Lock: Locks the boom to prevent rotation, enhancing lifting safety.

4. Boom Pin: Three-position adjustment to meet different height requirements, increasing usability.

5. Motor Base: Thickened steel plate welded to the boom to form a dedicated motor base for stable motor operation.

6. Front Arm Pulley: Embedded bearings and rope-stopping pins greatly improve lifting stability.

Installation method

Preparation: Prepare high-strength bolts, washers, and wrenches. Check the strength of the Vehicle mounted mini crane frame and select an installation position close to the vehicle's center of gravity.

Fixing the Base: Add a thickened steel plate to the frame. Align the crane base with the steel plate and frame, drill holes, and tighten with bolts. Full welding can be used for reinforcement.

Assembling the Main Body: Install the pressure bearing into the column, then fix the column to the base. Install the rocker arm and telescopic boom into the column in sequence and lock them with screws.

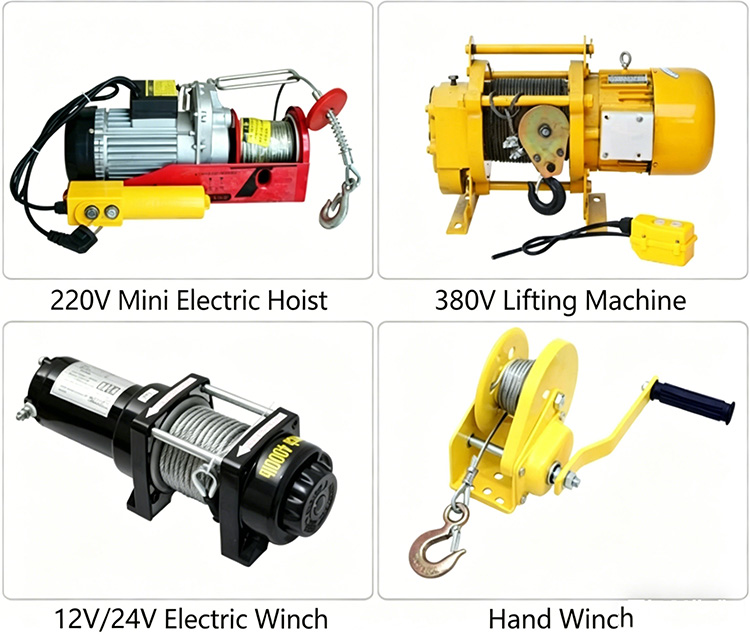

Connecting the System: Install the electric/hydraulic pump, connect the oil pipes and wiring harness, fix the electric winch, and thread the wire rope through the boom pulley.

Testing and Acceptance: Test the lifting, rotation, and limit functions. Check the bolt torque and pipeline sealing to ensure there is no loosening or leakage.

The vehicle mounted mini crane has a simple and compact overall structure, with a load capacity of 500 kg and 1000 kg. Hebei Shengyu Hoisting Machinery Manufacturing Co., Ltd supports customized 1.5-ton and 2-ton models. For inquiries, please call our hotline at 15133220087 (same number for WeChat) or email kate@syhoist.com. Welcome to contact us!
