VD 2T Chain Hoist

The VD 2T chain hoist manufactured by China supplier and manufacturer Shengyu Factory is a double-bearing VD series lifting hoist, a light-duty portable manual lifting device. Its core design features double pawl brakes, double guide wheels to prevent chain jamming, and a thickened anti-collision shell. It is suitable for short-distance movement and vertical lifting of heavy objects in confined spaces without power supply.

Send Inquiry

Product Description

Shengyu VD 2T chain hoist is an upgraded version of the traditional HSZ chain hoist, with a rated lifting capacity of 2000kg. The hoist features a G80 grade manganese steel lifting chain, double ratchet drive, and a double brake system, making it easy to pull, smooth to operate, and highly safe. Each hoist undergoes a 1.25 times test load before leaving the factory, ensuring safety and ease of use. It is highly practical in industries such as manufacturing, construction, warehousing, and logistics.

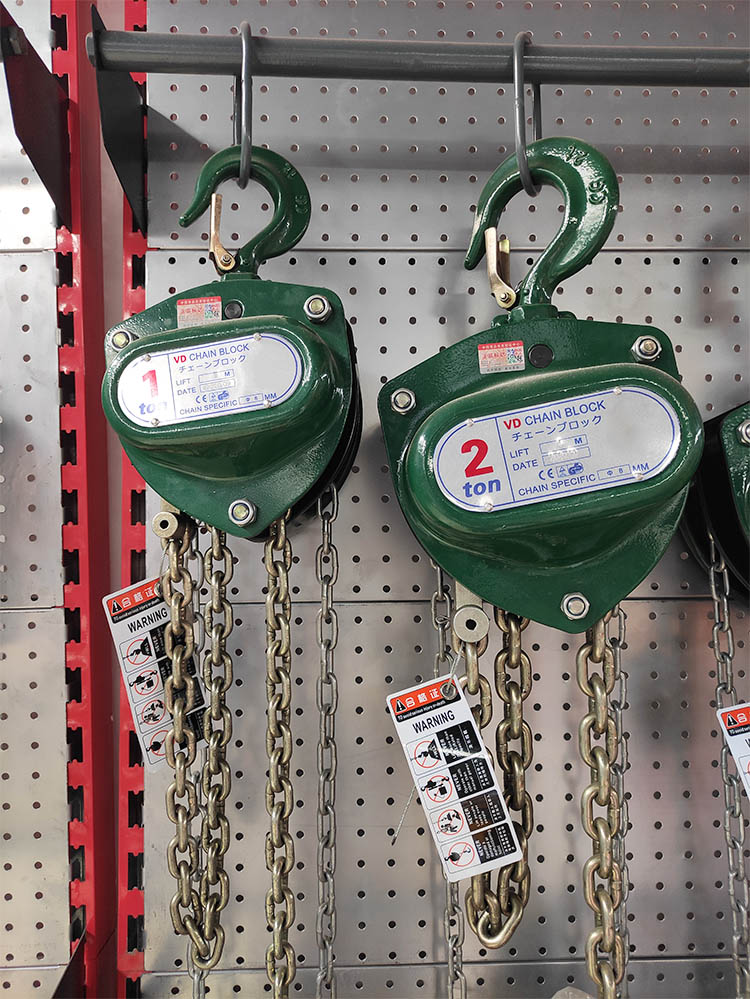

VD 2T chain hoist

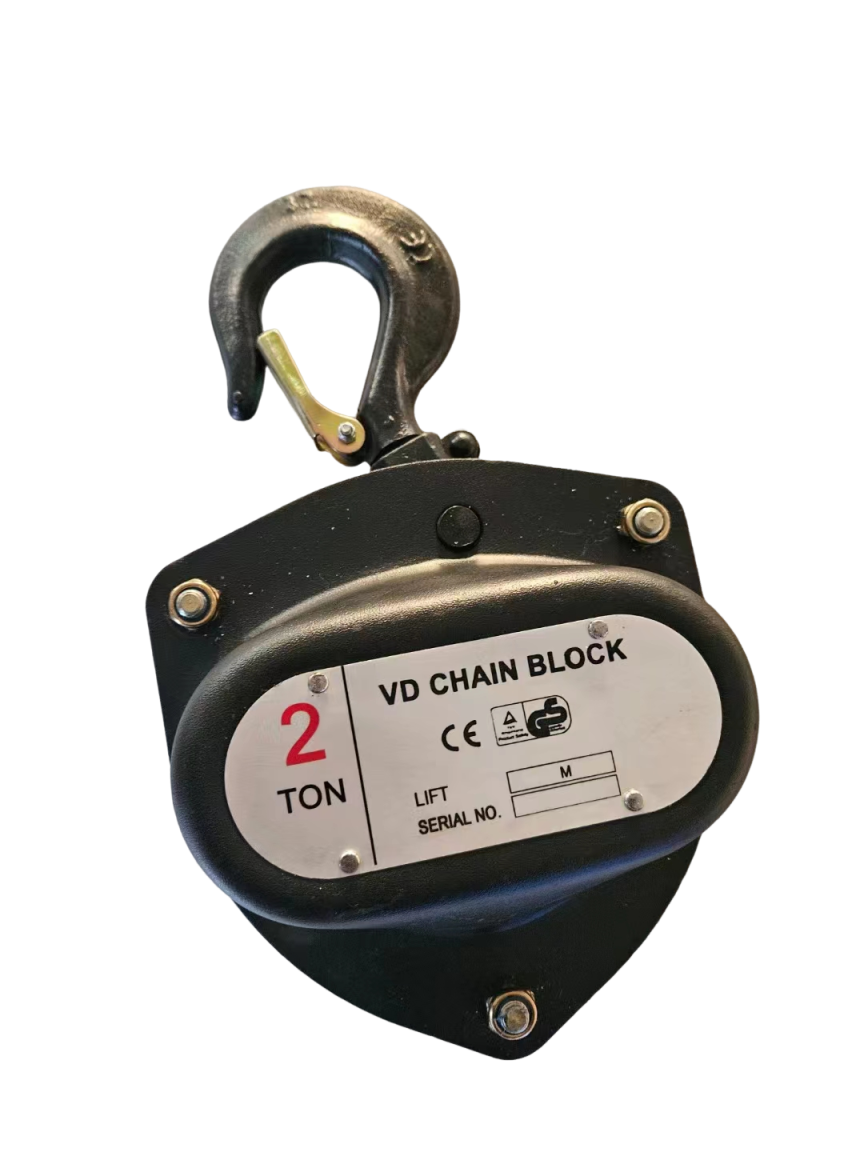

VD 2T chain hoists

Product parameters

Parameter Item	Specification Value	Remarks
Model	VD-2 (HSZ-VD-2T)	Standard VD Series 2-Ton Model
Rated Load Capacity	2 Tons (2000kg)	Strictly Prohibited from Overloading
Standard Lifting Height	2.5m/3m	Customizable from 3m to 12m
Test Load	3 Tons	1.25 Times Rated Load Test
Hand Chain Pull at Full Load	≈314N (≈32kgf)	Dual-bearing design for lighter pull
Load Chain Specification	Grade G80 Manganese Steel, φ6mm	Blackened /Quenched treatment, wear-resistant & rust-proof
Load Chain Strands	1 Strand	Single-chain lifting
Minimum Distance Between Hooks	444mm	Standard no-load dimension
Net Weight/ Gross Weight	≈15kg/≈17kg	Portable and easy to transport
Housing Material	Reinforced Alloy Steel	Ribbed process, impact & compression resistant

Applicable Scenarios

1. Positioning and hoisting of industrial machine tools, motors, and various components

2. Construction: Hoisting of building materials such as bricks, cement, and steel structures

3. Logistics and warehousing: Loading, unloading, moving, and stacking of goods within warehouses.

4. No power supply scenarios: Situations without power supply, such as in the field or remote construction sites.

Safety Precautions for Use

(I) Pre-use Inspection

Confirm the weight of the item is ≤2 tons.

Inspect the VD 2T Chain Hoist and hook for damage, deformation, and cracks.

Conduct an unloaded chain test to confirm the brakes are working properly.

(II) Operating Procedures

Ensure vertical lifting; do not pull at an angle or lift horizontally. No one should stand or pass under the heavy object. Do not allow the heavy object to be suspended in the air for extended periods.

(III) Environment and Maintenance

Do not use in flammable, explosive, or highly corrosive environments. Conduct regular comprehensive inspections and replace damaged parts promptly.

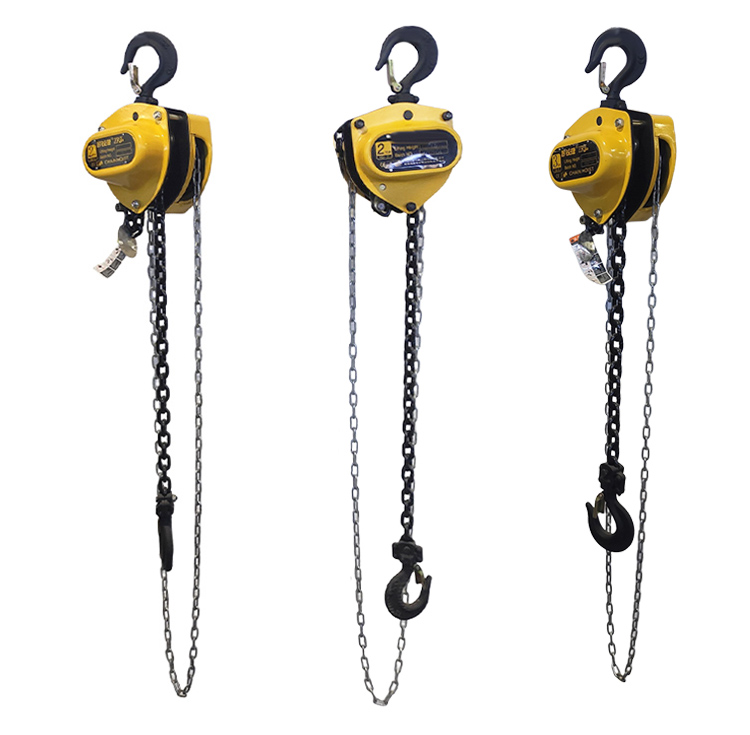

VD 2T chain hoist
