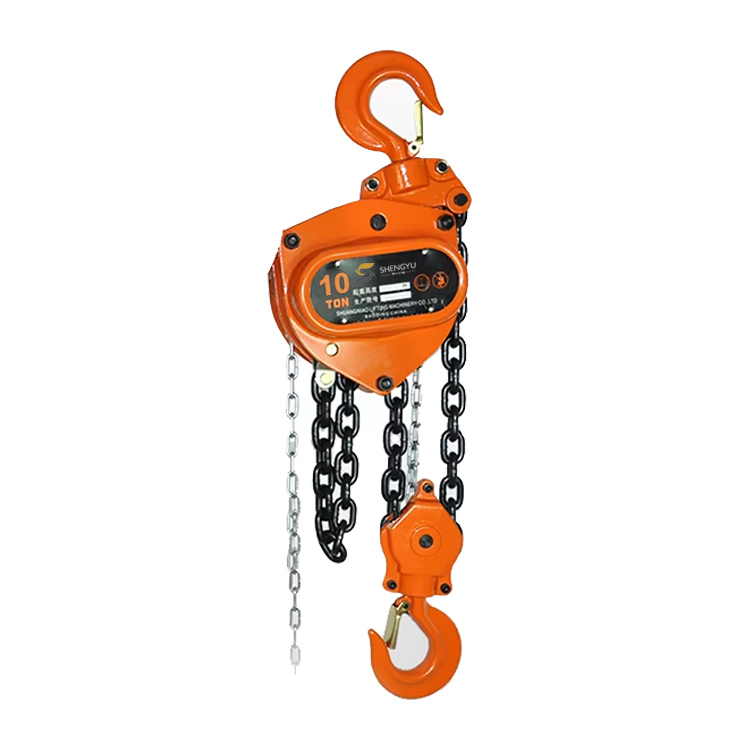

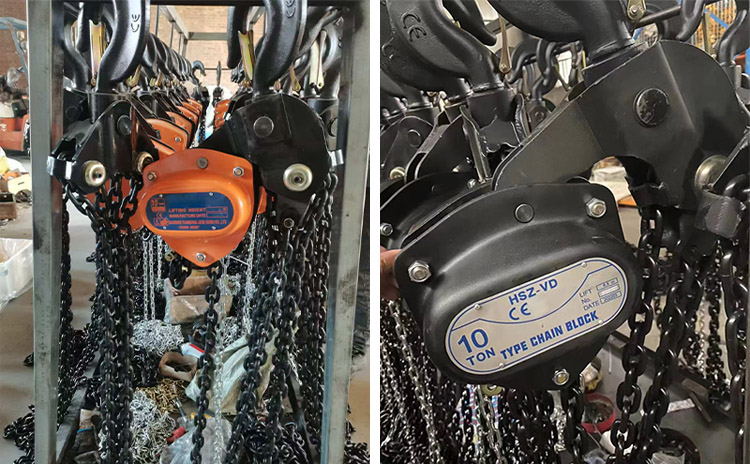

VD 10T Hand Chain Hoist

The main advantages of the VD 10T hand chain hoist include effortless and smooth operation, safety and reliability, high cost-effectiveness, and easy maintenance. The whole machine adopts low-alloy high-strength steel combined with G80 grade lifting chain and double pawl braking, which is particularly suitable for lifting, lowering, shifting and other operations without power supply/outdoor/narrow space.

Comparative advantages with ordinary HSZ type gourds

1. Dual bearing design: includes lifting wheels and built-in bearings, reducing tension by 20% compared to before improvement. Pulling the hand zipper smoothly without jamming, resulting in a longer service life.

2.Adopting dual pawl braking: the safety factor has been doubled, and the braking is more stable.

3.The overall shell is made of high-strength alloy steel, which can better protect the internal gears and bearings in impact and corrosive environments.

4.G80 grade high-strength chain: 800MPa grade, wear-resistant and not easy to break, with a slope coefficient greater than or equal to 4 times.

5.Standard packaging: Each VD 10T Hand Chain Hoist is covered with moisture-proof plastic bags or foam slots to avoid moisture and shaking during transportation. And accompanied by an instruction manual, certificate of conformity, and factory test report for easy use. We can customize packaging according to customer requirements. Finally, pack the tray and wrap it with plastic film.

Parameters

Customizable parts

This VD 10T Hand Chain Hoist unit has component including:

1. Lifting height: standard 3m, customizable 6m/9m/12m, etc., with additional charges per meter.

2.Chain material: default G80 alloy steel, can also be customized according to customer requirements.

3.Surface treatment: default spray painting, optional galvanizing/blackening (stronger rust prevention).

4.Hook specifications: Standard single hook, can also be matched with double hooks/extended hooks, 360-degree rotating hooks, etc. according to customer needs.
