Two way Self Locking Hand Winch

Hebei Shengyu Hoisting Manufacturer specializes in producing two way self locking hand winches in various specifications and models. Featuring easy cranking, high load capacity, light weight and portability, our products are applicable to diverse working environments and available in customized colors.

Send Inquiry

Product Description

Two way self locking hand winch. It features reliable self-locking function, easy operation and stable braking. Suitable for multiple working conditions such as traction, hoisting and tensioning. Custom wire rope lengths are available. Specifications are as follows:

800 lbs: Rated Load: 362 kg, Breaking Load: 500 kg, Applicable Wire Rope Diameter: 4 mm

1200 lbs: Rated Load: 544 kg, Breaking Load: 825 kg, Applicable Wire Rope Diameter: 4 mm

1600 lbs: Rated Load: 700 kg, Breaking Load: 1080 kg, Applicable Wire Rope Diameter: 5 mm

1800 lbs: Rated Load: 800 kg, Breaking Load: 1200 kg, Applicable Wire Rope Diameter: 5 mm

2600 lbs: Rated Load: 1100 kg, Breaking Load: 1650 kg, Applicable Wire Rope Diameter: 5 mm

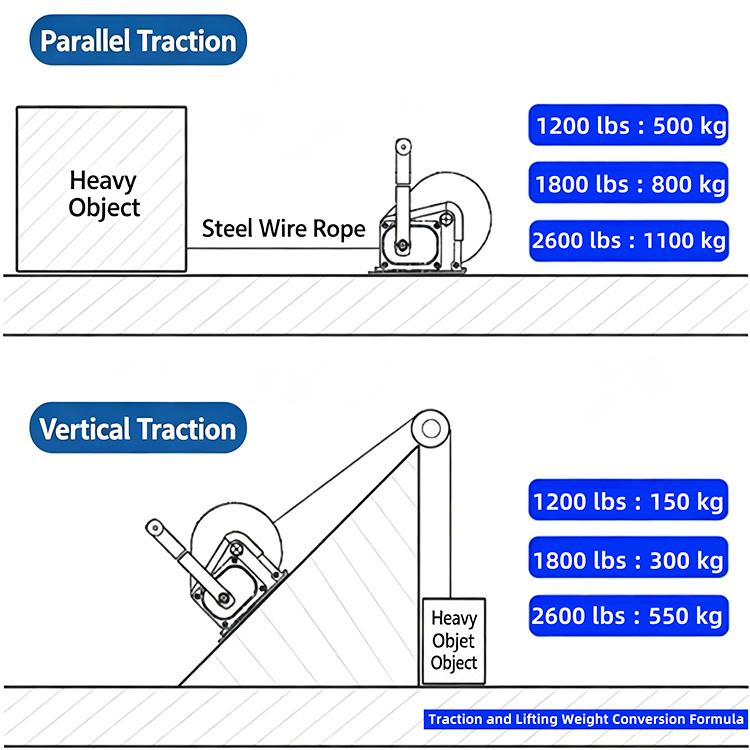

Model (lbs)	Transverse Rated Load (KG)	Transverse Breaking Load (KG)	Longitudinal Rated Load (KG)	Longitudinal Breaking Load (KG)	Hand Cranking Force (N)	Drum Wheel Diameter (mm)	Drum Wheel Inner Diameter (mm)	Speed Ratio
800	360	544	100	185	120	98	16	3.2:1
1200	544	825	150	275	180	132	48	4.1:1
1600	720	1080	200	360	200	156	60	4:1
1800	800	1200	300	450	190	180	60	4:1/8:1
2600	1100	1650	500	750	190	180	75	4:1/8:1

Product Details

1.Made of high-quality carbon steel, durable and non-deformable.

2.Two-way self-locking brake for stable locking and maximum safety.

3.High-strength wear-resistant structure with high-temperature heat treatment. Deepened and thickened design boosts strength by 1.25 times for enhanced safety.

4.High-tensile alloy steel hook with built-in retainer to prevent unhooking.

Hand crank enables easy lifting and lowering, fitted with anti-slip rubber grip.

Two Way Self locking Hand Winches

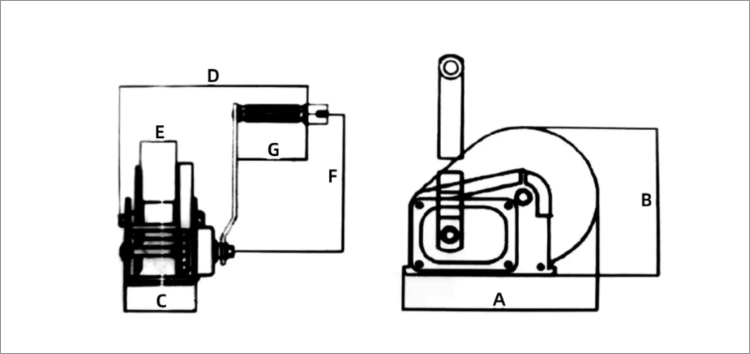

Model	Main Dimensions (mm)
	A	B	C	D	E	F	G	H
800	145	120	82	247	51	165	108	32
1200	182	156	88	288	51	204	109	32
1600	195	174	93	292	51	204	109	32
1800	244	200	108	292	60	312	109	32
2600	292	214	128	318	60	312	109	32

Self locking Hand Winch

Product Advantages of Two way Self locking Hand Winch

Dual Safety Protection

Adopts a dual self-locking structure with worm gear & pawl. It locks instantly when released, eliminating risks of load rebound and reverse rotation for higher operational safety.

Labor-saving & Efficient Operation

Optimized transmission ratio ensures smooth cranking. One person can easily complete traction and hoisting work, ideal for sites without power supply.

Durable & Stable Performance

Thickened steel base and high-temperature quenched gears deliver solid structure and excellent impact resistance. Matched with galvanized wire rope, the product features rust and wear resistance for longer service life.

Wide Range of Applications

With a rated pull of 1200 lbs, it is widely used for vehicle rescue, boat securing, construction hoisting and outdoor traction. Easy to install and highly adaptable.

Foreign Trade Orders

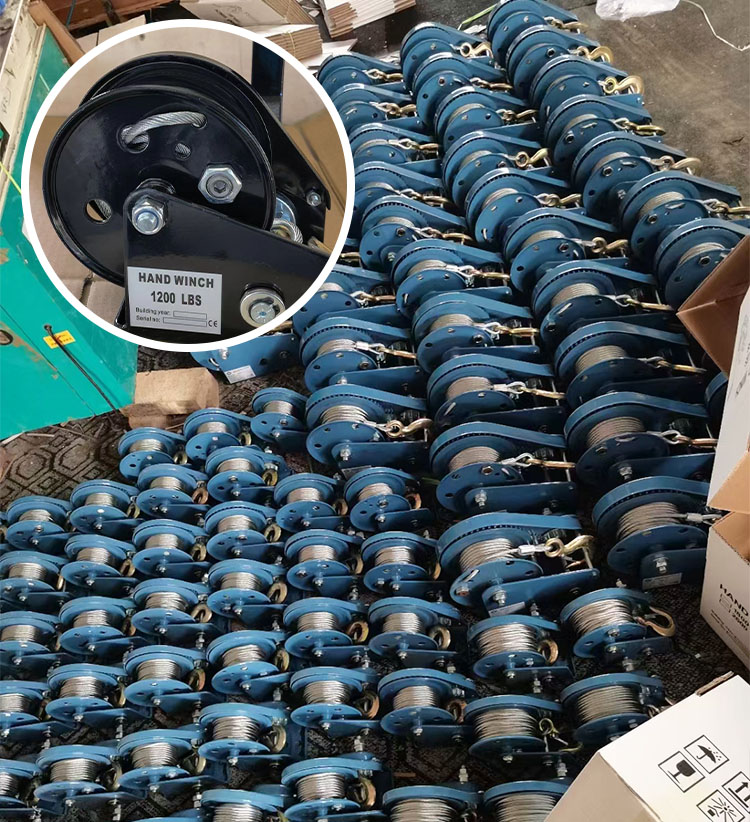

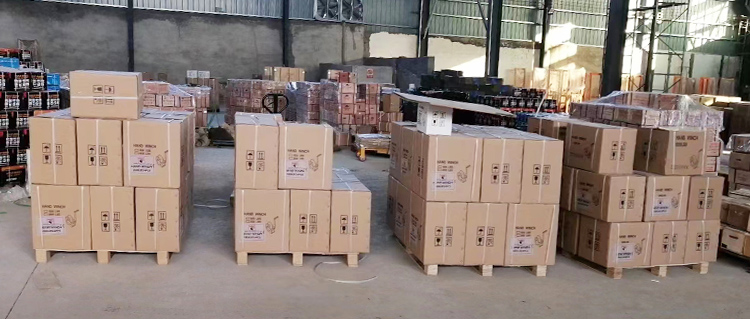

The customer placed a full container order for two way self locking hand winches in multiple specifications including 1200 lbs and 2600 lbs. The goods have been packed with pallets and stretch film as required, and loading & delivery are arranged. We will keep track of the logistics status and update the customer timely.

Two Way Self locking Hand Winch

Hebei Shengyu Hoisting is a professional manufacturer of hand winches. We accept bulk wholesale and custom processing orders worldwide, and provide one-stop export shipping services. All products comply with export quality inspection standards. With complete specifications and reliable quality, our products meet various international trade terms.

We support multiple delivery methods including sea freight, air freight and international express, catering to procurement demands from overseas distributors, engineering enterprises, marine and outdoor operation businesses.

Contact Info Tel: 15133220087 (WeChat available) Email: kate@syhoist.com Welcome to contact us for business cooperation!
