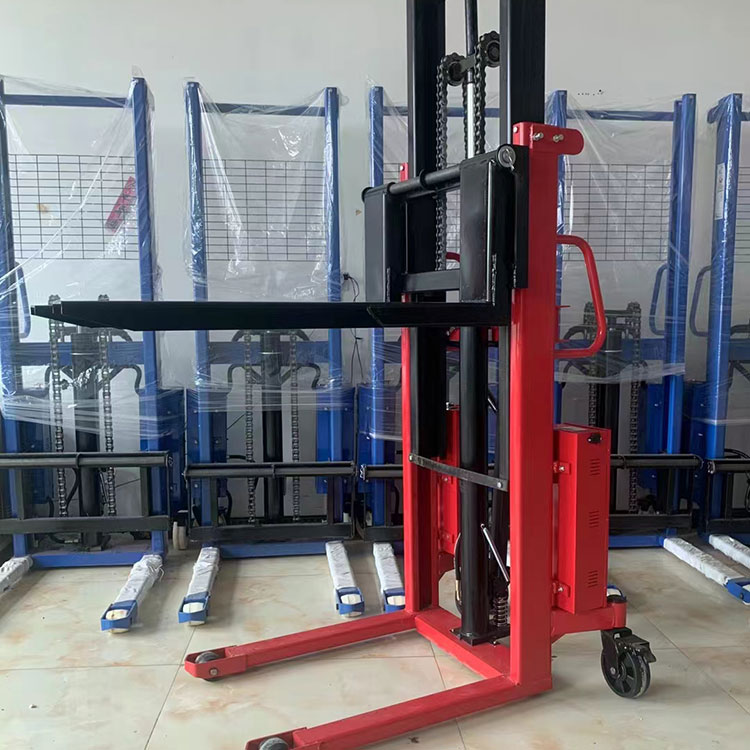

Semi Electric Stacker Produced by BaiYi Hoisting Machinery Manufacturing Co., Ltd. which mainly includes tonnages of 1.5T and 2T. Lifting height can 1600mm, 2000mm, 2500mm, 3000mm and 3500mm, The wheels have Nylon and PU. This semi-Electric stacker has a reasonable design and advanced structure, along with high body strength, safe and reliable use, and easy maintenance.
BaiYi high quality semi electric stacker has a spacial advantage that combines manual and electric features. It uses a battery-powered motor when lifting the forks, reducing physical strain on the operator, while movement and steering are typically done manually by the user. When it need bring goods to another place, it can operate by worker, this way more freedom and convenient.
Name
Semi Electric Stacker
Model
BDD-1.5T1.6M
BDD-1.5T2.0M
BDD-1.5T2.5M
BDD-1.5T3.0M
BDD-1.5T3.5M
Load Capacity
1500kg
1500kg
1500kg
1500kg
1500kg
Lifting Height
1.6M
2.0M
2.5M
3.0M
3.5M
Lifting Speed(mm/s)
135/150
135/150
135/150
135/150
135/150
Wheels Material
Nylon/PU
Nylon/PU
Nylon/PU
Nylon/PU
Nylon/PU
Loading Wheels
80*70
80*70
80*70
80*70
80*70
Steering Wheels
180*50
180*50
180*50
180*50
180*50
Max H at work (mm)
2085
2410
2910
3410
3910
Min H.of Forks
90mm
90mm
90mm
90mm
90mm
Adjustable Fork Max Width
700mm
700mm
700mm
700mm
700mm
Fork Length
1150mm
1150mm
1150mm
1150mm
1150mm
Fork Size mm
170*55
170*55
170*55
170*55
170*55
Package Size(L*W*H)mm
1750*800*2085
1750*800*1585
1750*800*1835
1750*800*2085
1750*800*2335
Lifting Motor Power (kw)
1.6
1.6
1.6
1.6
1.6
Battery Voltage/Current
12V/105A
12V/105A
12V/105A
12V/105A
12V/105A
Battery Size(mm)
36*17*27
36*17*27
36*17*27
36*17*27
36*17*27
NW(kg)
355
376
390
404
421
Features
1 When lifting use battery-driven motor for Electrically powered, compare manual one more easier to operate when handling heavy loads
2 Manually operated by pushing or pulling the handle.Pushing and pulling all by handle, it is more operate, compare whole eclectic stacker price much lower, working time more longer.
3 If want long distance or continuous lifting, The semi electric stacker more suitable use it, because it can work longer time.
Advantages:
1 The semi electric stacker can use in workshop material handling, small goods center, warehouse goods stacking.
2 Working use electric, emission free, more lower energy suitable for indoor use.
3 It structure and system more simple than electric stacker, so the motor, battery and other components and cost effective for maintain
