Multi-Specification Scissor-Type Manual Hydraulic Platform Truck

Product Details

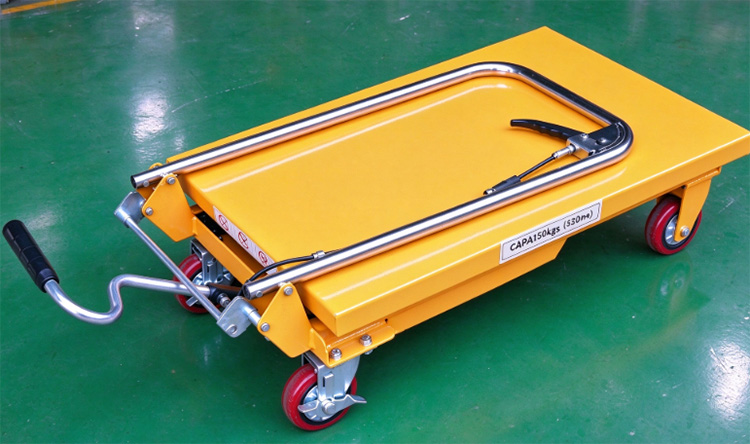

Multi-Specification Scissor-Type Manual Hydraulic Platform Truck is composed of a scissor structure, a foot-operated hydraulic pump, a cylinder and a table top: stepping on the pump forces hydraulic oil into the cylinder, the scissors raise the table, and the pressure-relief valve controls the lowering speed — release your foot and it stops, with no sudden drop. The table top is flanged on all four sides and treated against slipping, and the body does not splay under heavy load; the wheels are fitted with brakes so the unit stays steady during loading and unloading. The machine needs no power connection and has no cable to drag, which suits stations where power is inconvenient or the unit has to be moved at any time; routine maintenance only requires checking the oil level and lubricating the pins. You are welcome to order a sample unit first and place a bulk order after confirming the working conditions.

Product Categories:

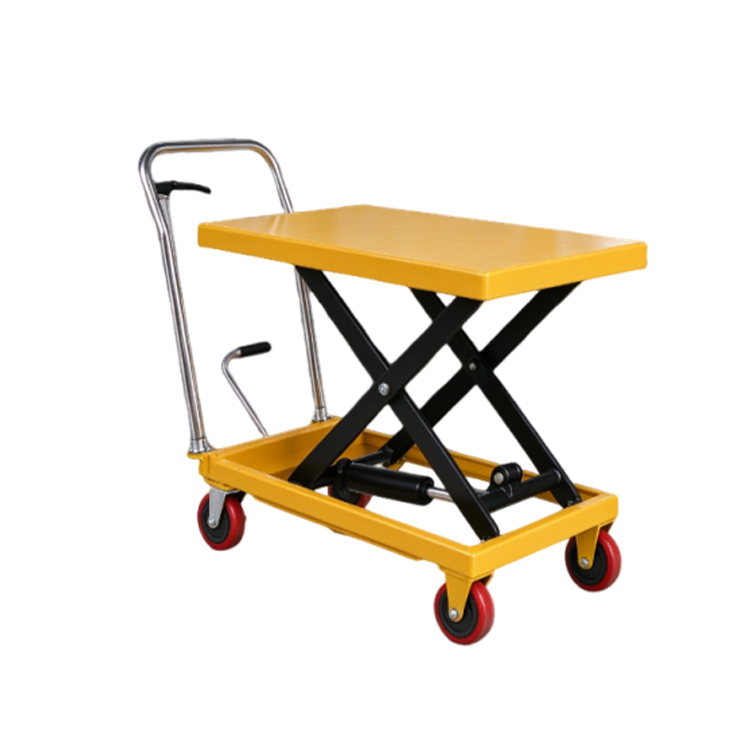

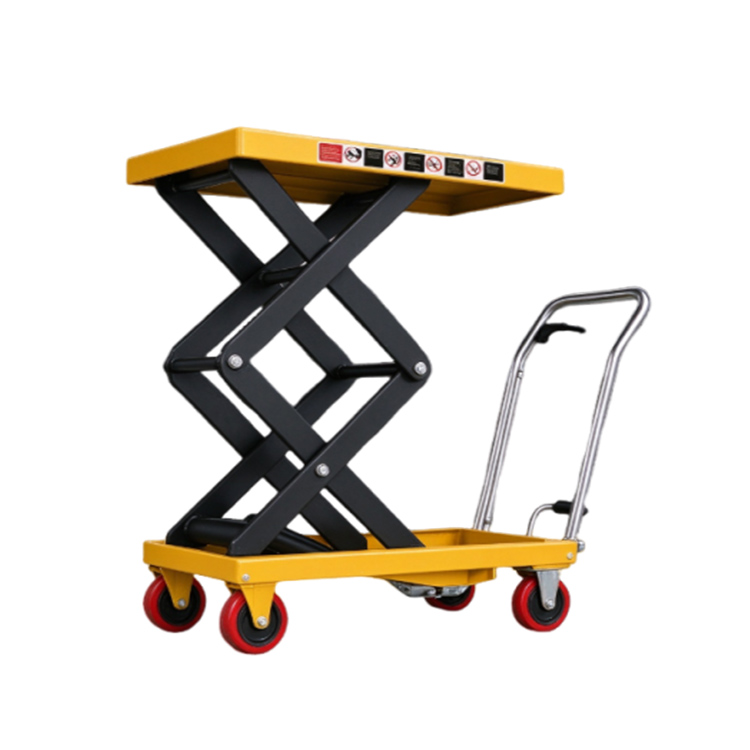

Manual hydraulic platform trucks come in two types, single-scissor and double-scissor: the single-scissor version uses thickened scissor arms for strong load-bearing capacity, while the double-scissor version offers a higher lifting height and better stability.

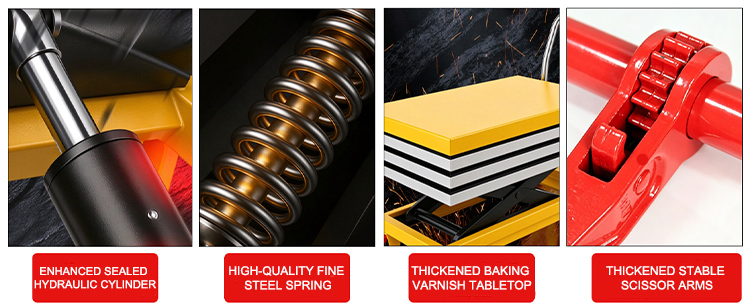

Features:

1、Reinforced sealed cylinder — no oil leakage, smoother operation; strong sealing; a load can be held for a long time without creeping down.

2、High-quality precision steel springs — easy and efficient, smooth running, and not easy to spring out of place.

3、Thickened powder-coated table top — thickened high-rigidity steel plate with a baked-paint finish, rust- and corrosion-resistant, neat and durable.

4、Thickened, stable scissor arms — stable load bearing, resistant to twisting and deformation, high rigidity from the thicker plate.

Overall, the Multi-Specification Scissor-Type Manual Hydraulic Platform Truck is simple to operate, flexible and convenient — foot-pedal lifting, manual pressure release, and a full range of specifications and models. Choose the model that matches your own needs, so that a wrong model choice or an unsuitable unit weight does not lead to unnecessary after-sales issues.

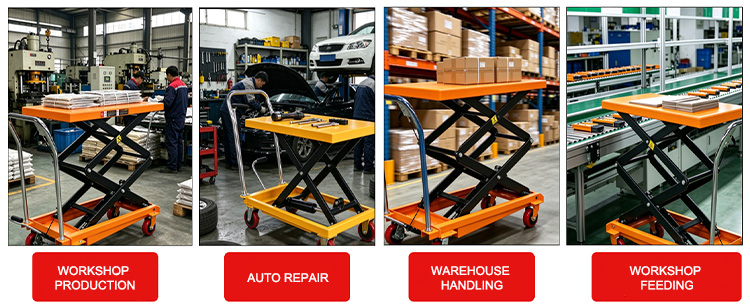

Working-Condition Fit: Where It Pays Off Most

- Workshop station lifting and loading/unloading on assembly lines;

- Mold and fixture changes — the maintenance team always keeps one unit on hand;

- Warehouse picking and packing-line docking, reducing repeated bending and lifting;

- Stations without power or temporary sites, such as outdoor work, docks and exhibition stand build-up;

- Food, pharmaceutical and electronics workshops — a stainless steel table top is available for easy washing and cleaning;

- Transfer inside narrow aisles and lifts — the overall width can be made as narrow as 520 mm.

Reference Specifications (final parameters to be confirmed with our specialist)

FAQ

Q1. How do I choose between a manual hydraulic platform truck and an electric lift table?

Look at three things: frequency, travel and power supply. If you lift a few dozen times a day at 0.7–1.3 m travel and there is no stable power on site, the manual version is the better value and needs no annual inspection or dedicated electrician. If you lift dozens of times per hour, or need to reach above 2 m, the electric version saves manpower and keeps a steadier cycle. We supply both — work out the labour cost per shift before deciding, which is more accurate than comparing purchase prices alone.

Q2. How should the rated capacity be set, and why is continuous full load not recommended?

The Multi-Specification Scissor-Type Manual Hydraulic Platform Truck capacity is calculated from the heaviest fixture plus operating margin — generally 1.2–1.5 times the actual weight, not the lower limit. A manual unit is driven by the foot pump, so continuous full load builds up fatigue on the scissor pins and cylinder seals, shortening service life and degrading the lifting feel; leaving one step of margin makes operation easier and safer.

Q3. How do the table size and minimum height match my pallets and fixtures?

Measure three things first: the footprint of the fixture or pallet, the height of the line or bench it must dock with, and the door width and lift dimensions the machine must pass through. A table top roughly 50 mm larger than the workpiece footprint on each side is stable; the minimum height decides whether the unit can slide under a pallet or pick up from floor level, commonly 210–260 mm. Confirm these two before discussing lifting height, otherwise you may end up with a table large enough but a machine that will not fit into the station.

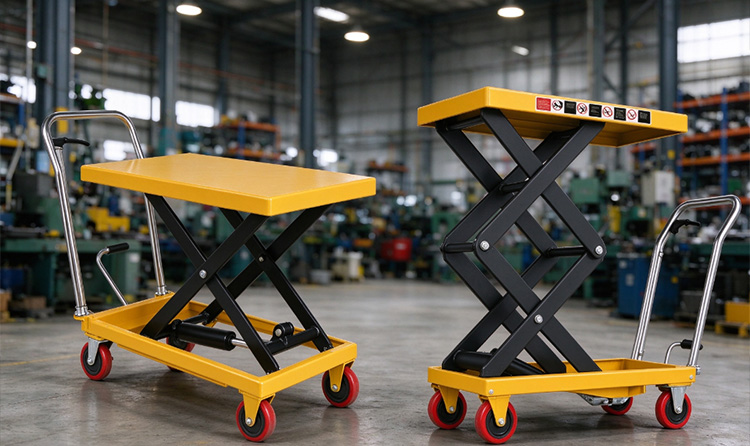

Q4. What is the difference between single-scissor and double-scissor?

For the Multi-Specification Scissor-Type Manual Hydraulic Platform Truck, at the same 500 kg the single-scissor model lifts 780 mm with a net weight of 68 kg; the double-scissor model lifts 1300 mm at 92 kg, and its minimum height rises from 240 mm to 350 mm. Double-scissor suits docking with high-level lines or holding workpieces at waist-to-chest height; for handling from floor level to 800 mm, the single-scissor unit is lighter, easier to push and one price step lower.

Q5. How do I choose the wheels: PU, nylon or rubber?

PU wheels are the most versatile — low rolling resistance and gentle on epoxy floors, so choose them for mainly indoor use. Nylon wheels are more wear-resistant and take higher loads, suiting rough concrete floors and heavy duty. Rubber wheels absorb shock and run quietly, rolling more steadily over thresholds and tile joints, but they have higher resistance and are harder to push. On mixed flooring, PU at the front and rubber at the rear balances effort saving with easy crossing.

Q6. How do sampling, lead time and customization work?

The Multi-Specification Scissor-Type Manual Hydraulic Platform Truck supports single-unit sampling; standard capacities are kept in stock, and customized items are scheduled for production after drawing approval. Customization covers table size and cut-outs, stainless steel table top, lifting height, wheel configuration, body branding and packaging. For a quotation, provide the rated capacity, table size, lifting height and purchase quantity, and we will come back with model recommendations, tiered pricing and a firm lead time; you can place the order once the specifications are confirmed.

About Our Factory

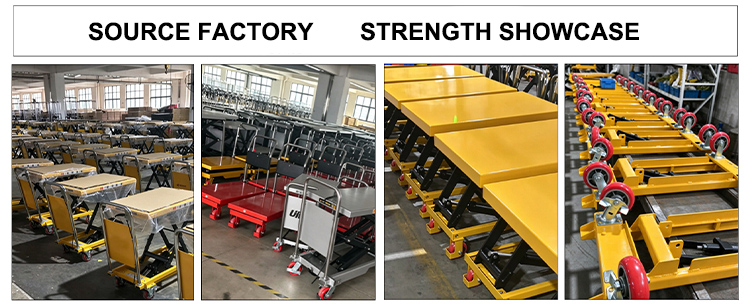

ShengYu factory is a manufacturing plant dedicated to the R&D, production and sales of lifting machinery and equipment. With years of experience in the lifting and handling industry, we have professional production workshops, precision machining equipment and a complete product testing system, achieving full in-house control from parts machining and unit assembly to finished-product inspection, so product quality is stable and reliable. The multi-specification scissor-type manual hydraulic platform truck supports bundled purchasing across product categories, single-unit sampling, full-factory batch orders and customization; standard models are kept in stock, and customized models are scheduled for production after drawing approval.
