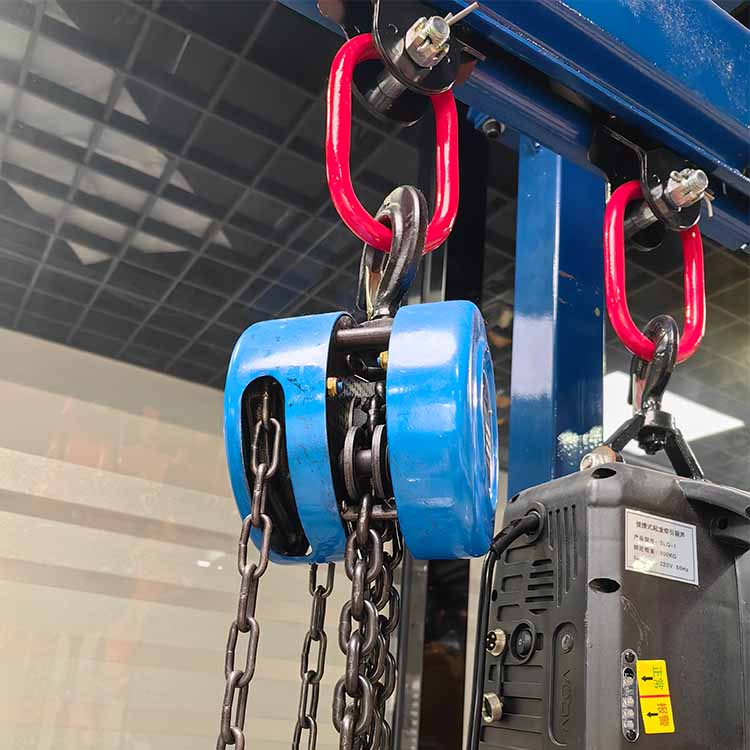

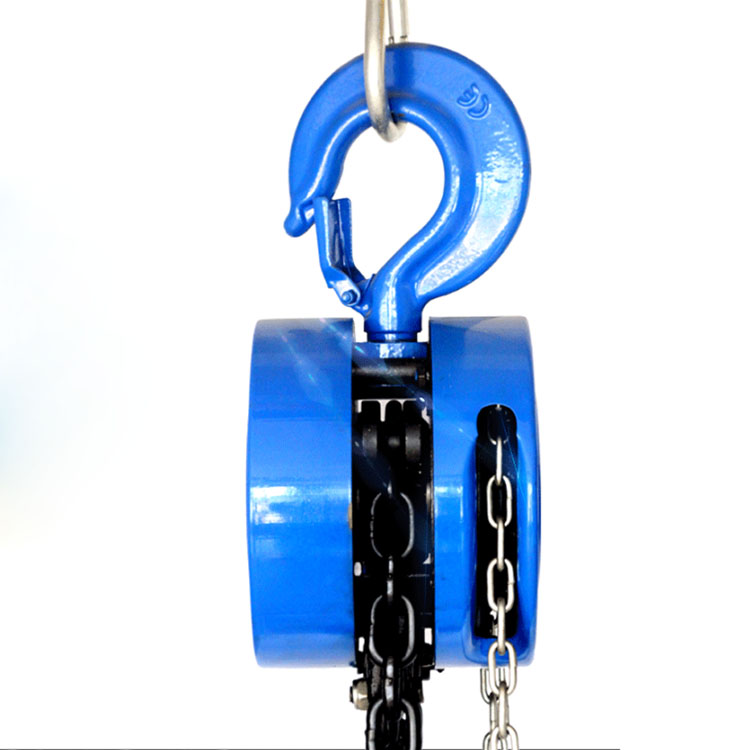

HSZ 5T Manual Chain Hoist

The HSZ 5T manual chain hoist is a professional heavy-duty industrial lifting for Baiyi factory device with a rated lifting capacity of 5T, a test load of 7.5T, and a safety factor of ≥4. It optimized three-stage gear transmission design significantly reduces the operating force of the hand chain. Our factory also can support customization of lifting height and chain material. It is suitable for many fields like construction, industry, and mining. It offers one year warranty and lifetime maintenance service, making it as a efficient, reliable, and flexible heavy-duty manual lifting tool.

Product features

1 Safe and Reliable: Utilizing a dual ratchet braking system, it achieves instant self-locking and fall prevention, ensuring stable cargo suspension. The lifting chain is made of G80 grade manganese steel, hardened for wear resistance, rust prevention, and excellent tensile strength. The test load is 1.5 times the rated load, with a safety factor ≥4 times, eliminating potential lifting safety hazards.

2 Effortless and Efficient:** The complete three-stage gear transmission structure achieves a mechanical efficiency ≥65%. Under a 5-ton load, the hand chain pull force is approximately 420N, requiring minimal effort to operate.

3 Rugged and Durable: The machine body is constructed entirely of steel, making it more robust and durable. It is impact-resistant and deformation-resistant, suitable for harsh working conditions such as -20℃ to +60℃, and humid and dusty environments.

4 Flexible Customization:The standard lifting height is 3 meters, but customization is available. For example, galvanized/stainless steel chains and brand logo customization are supported to meet the personalized needs of different industries.

Data

Key Selling Points

1. Rated Load: HSZ 5T manual chain hoist loading capacity is 5T, 7.5T test load, maximum safety factor, specially designed for heavy-duty lifting scenarios, can replace small electric hoists, and can operate efficiently even without electricity.

2. Labor-Saving and Worry-Free: Optimized gear transmission system, chain pull force only 420N, no professional external force required, ordinary operators can easily operate, reducing labor costs.

3. Long-Lasting and Durable: All-steel rust-proof body + G80 grade chain, suitable for use in harsh working conditions such as humidity, dust, high and low temperatures, etc., with a service life far exceeding that of ordinary hand chain hoists, reducing replacement costs.

4. Flexible Adaptability: Lifting height and chain material can be customized, and logo customization is supported to highlight individuality.
