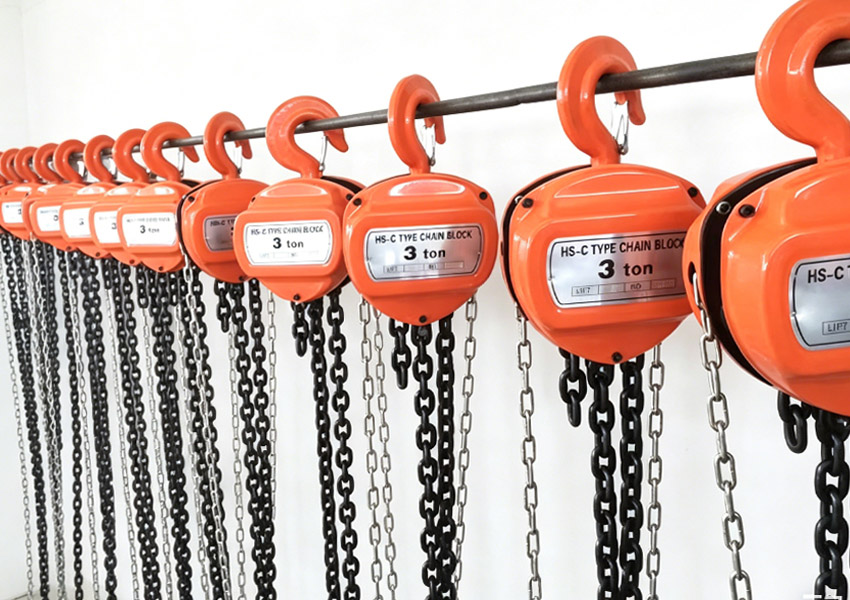

HSZ-3T hand chain hoist

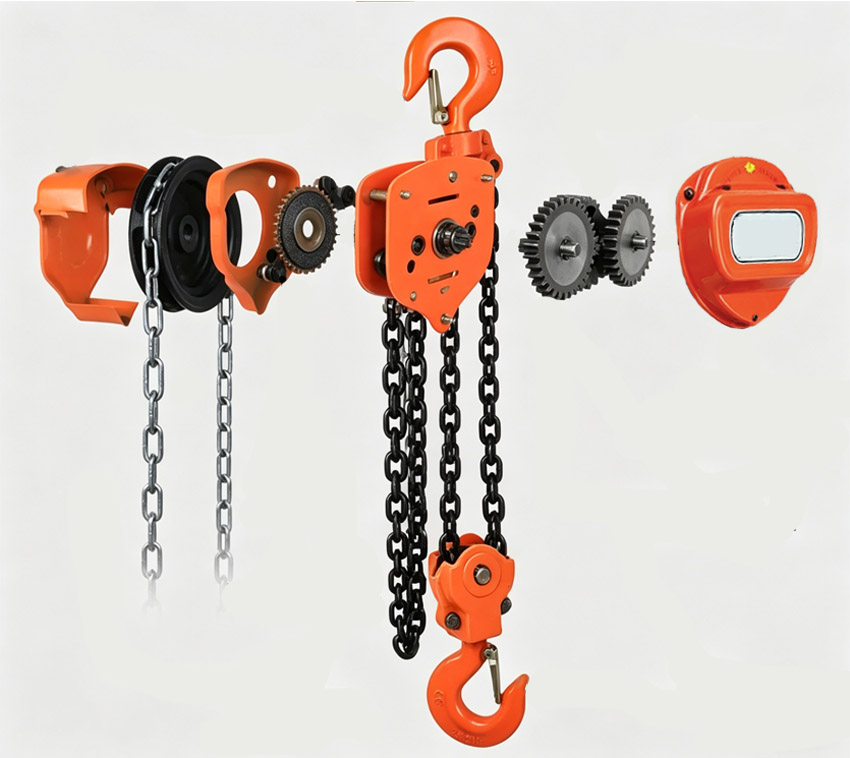

China manufacturer and supplier Hebei Shengyu Lifting Equipment Machinery Manufacturing Factory, with over 20 years of production experience, produces the HSZ-3T hand chain hoist. This hoist features a built-in ratchet and pawl braking system, amplifying torque through a hand-operated chain and gear reduction mechanism to drive the lifting chain, thus achieving vertical lifting of heavy objects. It is a small, manual lifting device that can be locked at any time for safety.
Basic Details
Standard Specifications: 3T*3M
Core Advantages: HSZ-3T hand chain hoist can be operable by a single person, no power supply required, labor-saving and durable.
Core Materials: Alloy steel shell; G80 chain and forged alloy steel hook.
Applications: Lifting items up to 3 tons over short distances in confined spaces such as factories, docks, and warehouses.
Product parameters
|
Parameter ItemParameter Item |
Standard Value |
|
Model |
HSZ-3T (3 Ton) |
|
Rated Load Capacity |
3000 kg (3 Ton) |
|
Standard Lifting Height |
3 m (Customizable: 2.5m / 6m /9m) |
|
Test Load |
4.5 Ton (1.5 times rated load) |
|
Lifting Chain |
G80 Grade Manganese Steel, 10 mm Diameter, Double Chain |
|
Hand Pull Force |
≤ 314 N (Approx. 32 kgf) |
|
Net Weight of Whole Unit |
Approx. 28-36 kg |
|
Minimum Distance Between Two Hooks |
444 mm |
|
Housing Material |
Alloy Steel / Carbon Steel (Round / Triangle Type) |

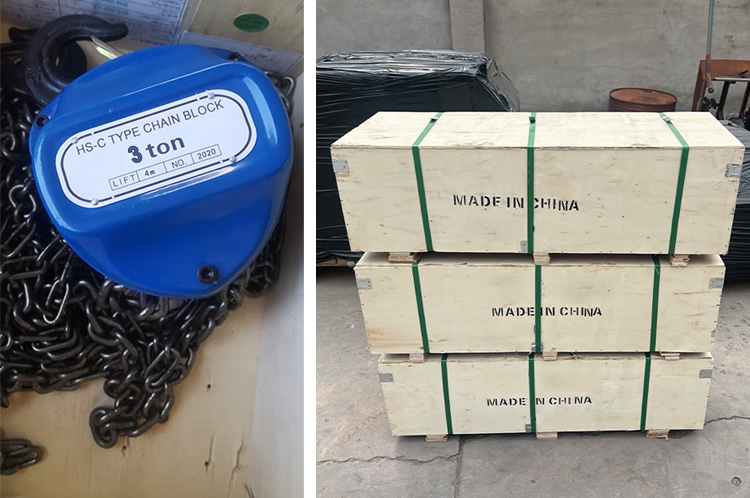

Packaging Method：
Inner Packaging: The entire HSZ-3T hand chain hoist is cleaned and treated for moisture protection.
Secure with hand zippers and hooks to prevent shaking during transport.
Instruction manual and certificate of conformity are sealed in plastic bags.
Outer Packaging: Five-layer thickened corrugated cardboard box, palletized, and wrapped with plastic film.
Use Cases:
This HSZ-3T hand chain hoist can be used in the following cases:
Factory equipment installation and maintenance.
Material handling in mines.
Handling of cement, doors, windows, and scaffolding at construction sites.
Cargo loading and unloading at ports and docks, and operations inside containers.
Vehicle/Automotive Repair: Disassembly and assembly of heavy components such as vehicle parts.
FAQ
Q1: What is the weight of HSZ-3T manual chain hoist?
A1: The standard weight for a hoist with a lifting height of 3m is approximately 24kg.
Q2: Can it be used in flammable and explosive environments?
A2: No. Explosion-proof hoists can be used.
Q3: Can the lower hook be welded or modified?
A3: Absolutely not! Modification will damage the original structure/strength, potentially cause conductor breakage and lead to a safety accident.
