HSC 2T Manual Chain Hoist

The HSC 2T manual chain hoist is a manual lifting hoist with a rated lifting capacity of 2 tons manufactured by Hebei Baiyi factory from China offering greater lifting capacity compared to the 1-ton HSC manual chain hoist. During operation, the chain is manually pulled, and lifting and lowering of heavy objects is achieved through gear reduction and self-locking braking. Because it does not require electricity or external force, it is widely used in lifting operations in areas without electricity or in confined spaces.

Send Inquiry

Product Description

The overall structure of this HSC 2T Manual Chain Hoist is compact and it is lightweight. It has excellent stability and durability, and can operate stably in various scenarios such as factory workshops, warehouse loading and unloading, equipment installation, and outdoor emergency repairs. The gear transmission components are precisely machined and heat-treated, and are combined with a wear-resistant chain design, which improves the transmission efficiency and effectively extends the service life of the entire machine. The self-locking function can effectively prevent heavy objects from accidentally sliding down, ensuring the safety of personnel during the lifting process.

Product Details

Model:HSC 2-ton manual chain hoist

Type: Manual chain hoist

Rated load:2 tons

Standard lifting height:3.0 m, customizable extension available

Power: Manual operation

Safety features:Ratchet brake self-locking, anti-disengagement hook, G80 grade lifting chain

Factory:Hebei BaiYi hoisting machinery manufacturing Co., Ltd

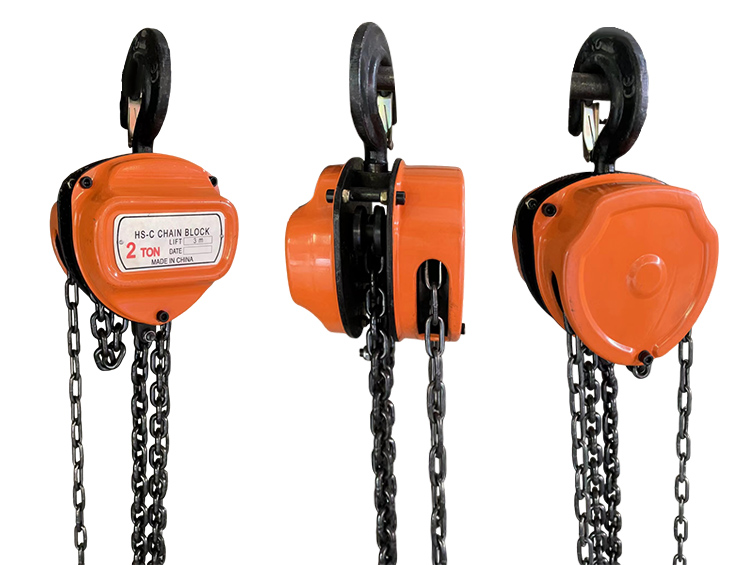

HSC 2-ton manual chain hoist

Parameters

Parameter	Standard Value	Remarks
Rated Lifting Capacity	2t(2000kg)	Overloading strictly prohibited
Standard Lifting Height	2.5 m/3.0m	Customizable: 4-12m
Test Load	3t	1.25x static load test before delivery
Lifting Chain	G80 Mn Steel, φ6mm Double Chain	Breaking strength > 20 t
Hand Chain Spec	φ4.5 mm Single Chain	Length matched to lifting height
Full Load Hand Pull	≈340N	=35 kgf
Min Hook Clearance	≈368mm	Includes upper/lower hooks
Net Weight	≈14kg	For 2.5m height
Housing	Alloy / Cast Steel	Dustproof & impact-resistant
Hook	Forged Alloy Steel w/ Safety Latch	Safety factor > 4:1

Lifting Safety Precautions

1) Before use, check the weight of the object to be lifted to ensure it is not overloaded. Check that the support points are secure and the chain is not twisted.

2) During operation, stand on the same plane as the manual chain and pull the chain at a uniform speed. Do not stand under heavily loaded objects. Lift and lower smoothly. If there are any abnormal noises or jamming, stop work immediately for inspection. Do not suspend the object in the air for extended periods.

3) After use, once the lifting is complete, remove the hook, wipe off any dust or oil, and store in a dry, well-ventilated, and cool place.

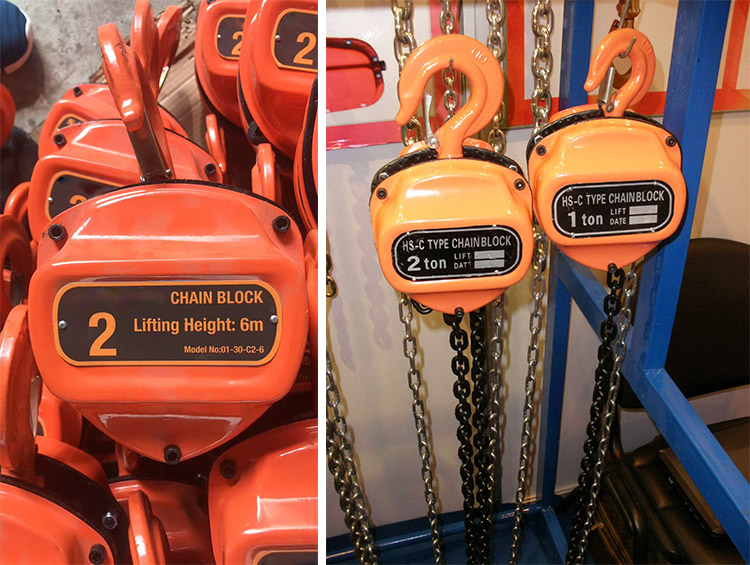

HSC 2-ton manual chain hoists

FAQ：

Q1: What should I do if the hoist automatically slides down uncontrollably during descent?

A1: Check for brake failure. Inspect the friction surfaces for oil stains/wear, and check the ratchet and springs for damage. Immediately stop use and inspect.

Q2: Can the lifting height be increased from 3 meters to 6 meters?

A2: Yes. Custom heights can be made after the holiday.

Q3: Can it be pulled at an angle?

A3: Not recommended. Angled pulling can easily lead to chain jamming, chain skipping, wear, and hook deformation.

Q4: What is the chain diameter of the HSC 2T hand chain hoist?

A4: Standard G80 chain diameter φ6 mm, double chain.
