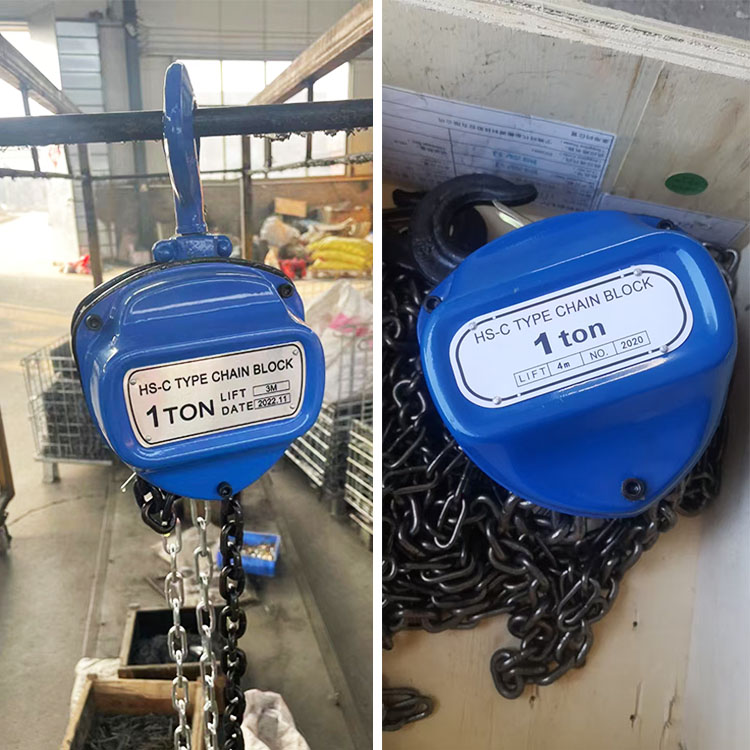

HSC 1-Ton Chain Hoist
The HSC 1-ton chain hoist manufactured by professional China supplier Hebei Baiyi is a manually operated light-duty lifting device. It is simple and effortless to operate. The entire machine is made of steel and has undergone coating treatment. It has a good cost-performance ratio and is the preferred product for customers.
The HSC 1-ton chain hoist is an important light-duty lifting device in the HSC hoist series manufactured by Hebei Baiyi Lifting Machinery Equipment Manufacturing Co., Ltd. Its main working principle is to vertically lift/lower loads up to 1 ton by manually driving a chain and gear transmission. Core components include a ratchet-type one-way brake and a double-guide wheel anti-jamming chain. It is the preferred lifting machinery for factories, warehouses, docks, power plants, and other applications requiring rapid handling of small heavy objects.
Specifications：
|
Item |
Value |
Remarks |
|
Rated Lifting Capacity |
1 Ton(1000kg) |
Single Chain Configuration |
|
Standard Lifting Height |
3m |
Customizable to 2.5m/3m |
|
Test Load |
1.5 Tons |
150% of Rated Load, Mandatory Factory Inspection |
|
Number of Load Chain Strands |
1 Strand |
Chain Diameter φ6mm, Grade G80 |
|
Hand Chain Pull at Full Load |
≤304N |
Easy Manual Operation, High Mechanical Efficiency |
|
Net Weight |
11kg |
Portable & Easy to Transport |
|
Overall Dimensions |
145x135x27~150x340mm |
Low Headroom, Suitable for Narrow Spaces |
|
Operating Temperature |
-10°C~60°C |
Standard Industrial Applications |
Main Components
|
Module |
Component |
Function & Features |
|
Lifting Mechanism |
Load Sprocket + Dual Guide Wheels |
Smooth guidance, anti-jamming, stable load |
|

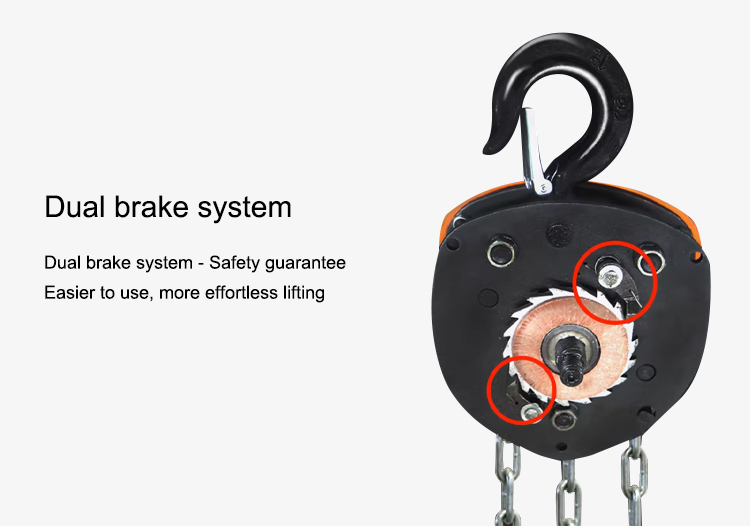

Brake System |
Double Pawls + Spring + Ratchet |
Load self-braking, anti-slippage, safety factor ≥2 |
|

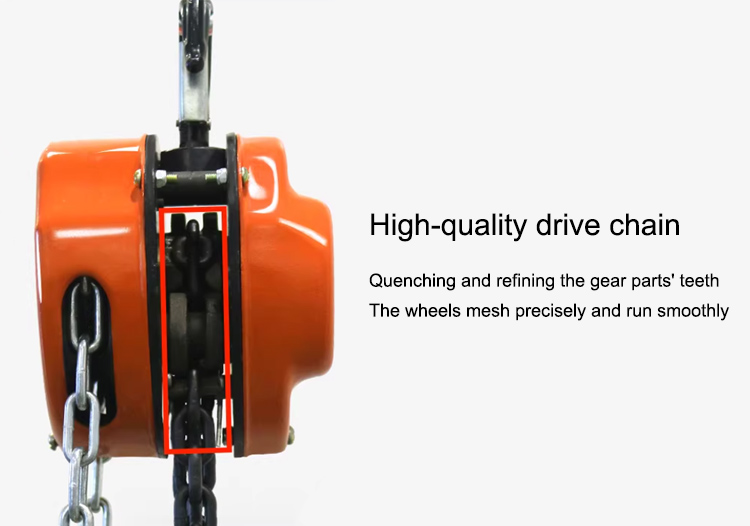

Transmission System |
2-Stage Gear Set + Synchronous Gears |
High efficiency, low hand pull, long service life |
|
Load-Bearing Part |
G80 Load Chain (φ6mm) |
800MPa high strength, quenched, rust-proof |
|
Hook Assembly |
Forged Alloy Steel Top/Bottom Hooks |
360°swivel, overload-resistant, safety latch |
|
Hoist Body |
Triangular Steel Housing + Spray Coating |
Impact/corrosion resistant, sturdy structure |
|
Operating Part |
Hand Chain Sprocket + Flanged Cover |
Smooth side pull, easy maintenance |
HSC 1T Chain Hoist vs VT 1-Ton Chain Hoist
|
ltem |
HSC 1T |
VT 1T |
HSC Advantage |
|
Structure |
Triangular steel + dual guidewheels |
Fiber body + integratedwheel |
More impact-resistant,flexible in narrow spaces |
|
Brake |
Double pawls + spring |
Single friction disc |
More stable braking, betteranti-slippage |
|
Gear |
2-stage synchronous |
Japanese symmetric |
Lower cost, same efficiency,easy maintenance |
|
Chain |
G80 φ6mm single |
Same grade |
Cost-effective for regularuse |
|
Weight |
11kg |
12~13kg |
Lighter, easier toinstall/transport |
|
Price |
Economy |
High-end |
Bulk purchase costadvantage, ideal for export |
|
Scenarios |
General industrial |
Heavy-duty/precision |
Balances cost &performance, wide exportapplicability |
Why choose our HSC1 ton chain hoist?
1.This HSC 1-Ton Chain Hoist is a manual-operated lightweight lifting equipment, which is easy to operate and very energy-efficient.
2. The core advantages are very prominent. It has a compact structure, is small in size, lightweight, and highly safe and reliable.
3. Rated load capacity is 1 ton, standard lifting height is 3 meters, which can fully meet the daily needs of light lifting operations.
4. The entire machine is made of triangular steel, which is sturdy and durable. The exterior of the machine has been fully coated with powder, making it moisture-proof and corrosion-resistant, and suitable for various environments.
5. The low clearance design is not only convenient for carrying and moving, but also takes durability into consideration. It offers exceptional value for money and is the preferred product of global importers.
FAQ:
Q1: Can the HSC 1-ton chain hoist be overloaded?
A1: Overloading is strictly prohibited. It can only lift items up to 1000mm high.
Q2: Can you provide product information in multiple languages (Chinese/English/Spanish)?
A2: Yes, we can provide parameter tables, operation manuals, and support for customer development and platform sales in different languages.
Q3: What are the warranty and delivery time for bulk purchases?
A3: In-stock items take 5-7 days to deliver; customized items take 15-30 days. One-year warranty, third-party testing supported.
