Heavy Duty Self Locking Hand Winch

Heavy duty self locking hand winch are available in four models: 0.5 tons, 1 ton, 2 tons, and 3 tons. They are available with wire ropes of 40 meters in length and diameters of 6.3mm, 8mm, 9mm, and 12.5mm. Custom wire rope lengths are also available upon request.

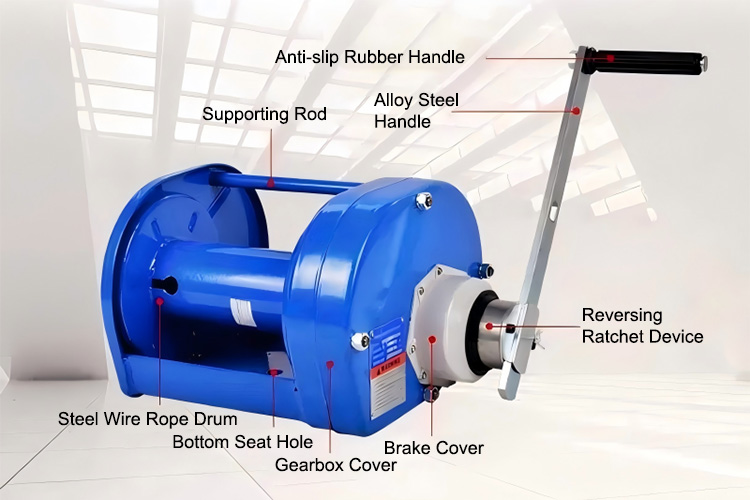

Product details

1. The main body of the Heavy Duty Self Locking Hand Winch is made of high-strength thickened steel plates, thereby enhancing the load-bearing capacity and traction force.

2. Equipped with a large-sized and widened rope storage drum, there is ample internal rope storage space, allowing for smooth storage of the longest 40-meter specification steel wire rope. The rope can be retracted and deployed neatly without tangling, meeting the needs of various long-distance traction operations.

3. Safety features include bidirectional self-locking function, automatic braking when releasing, effective control of the lifting speed, and ensuring stability during the lifting process without being affected by external control.

4. Combined with specially thick and high-quality steel wire ropes, the texture is firm and highly resilient, resistant to wear and deformation, and not prone to wear or cracking, with excellent tensile performance.

5. The thoughtful design of an extended hand grip handle enables operation through the principle of a force-saving lever, making the operation more convenient, with a smaller lifting amplitude, and a faster descent speed when unloading.

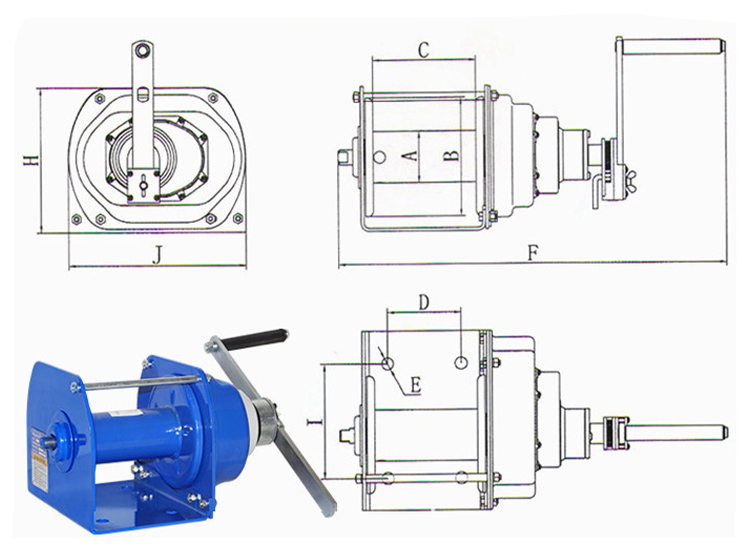

Product parameters

Safety Operating Instructions

1.Perform a routine inspection of the Heavy Duty Self Locking Hand Winch before using the heavy-duty self-locking hand winch. Do not use damaged tools to periodically apply lubricant to moving parts. During operation, keep other people away from the operating area.

2. Do not use the wire rope if it is worn or damaged. Do not exceed the working load. Do not use the handle extender to increase leverage.

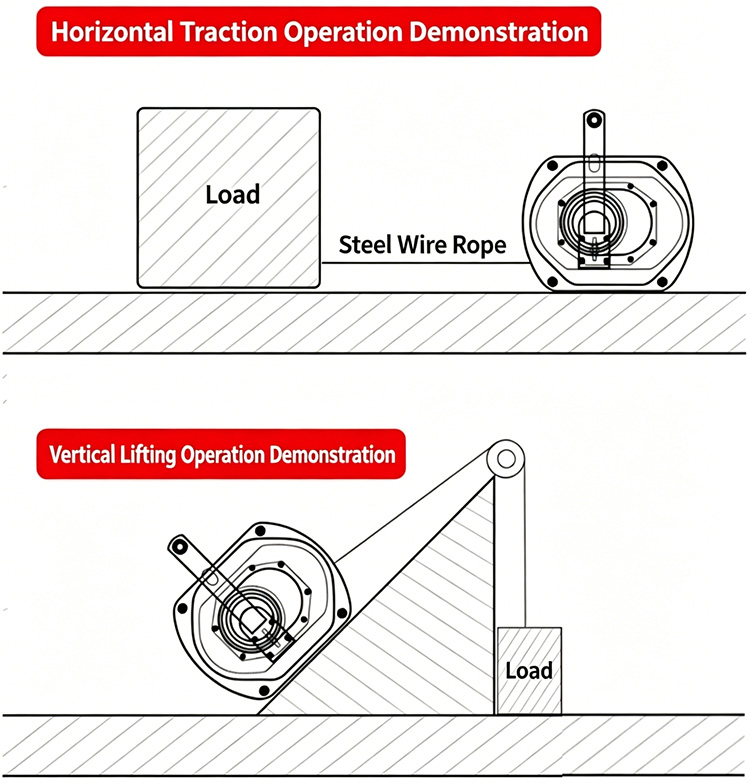

3. The load must be in a straight line, with hooks facing each other. Keep your hands and clothing away from all moving parts. Do not wrap the wire rope around an object or hook it onto yourself.

4. Do not allow the gears to spin freely. Use the original parts and do not modify them. Ensure the safety buckle on the hook is securely fastened.

5.Do not place the protruding part of the hook on the tip of the gear.

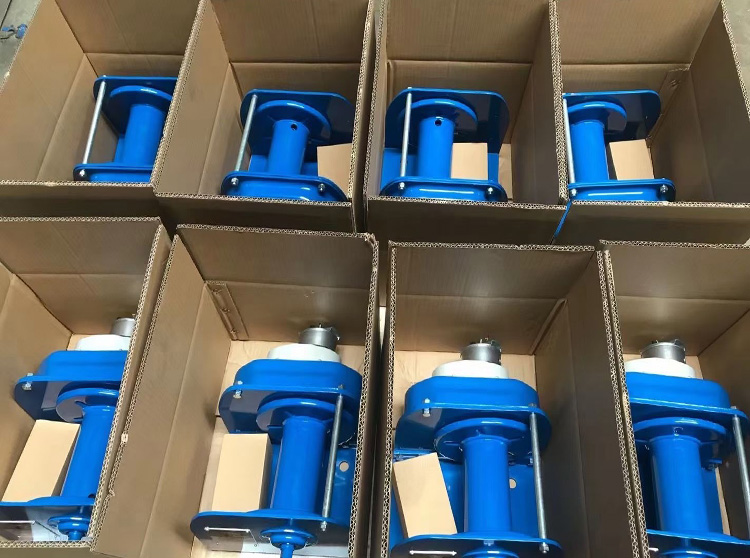

Our packaging

Hebei Shengyu specializes in producing heavy duty self locking hand winch. Their shells are sturdy and durable, wear-resistant, and have high load-bearing capacity, making them suitable for various environments. Hebei Shengyu Lifting supports customization. For inquiries, please call our hotline at 15133220087 (WeChat ID is the same), or email us at kate@syhoist.com. Welcome to contact us!
