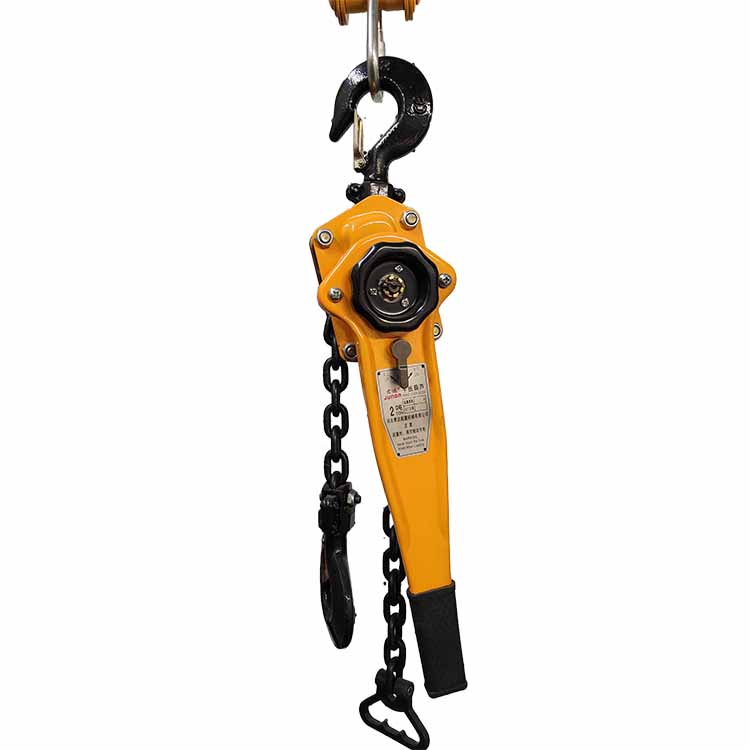

2Tons Lever Hoist

Hebei Baiyi factory produced HSH 2Tons lever hoist have good quality, it is Main Components: The outer shell for the main protective structure, the manually operated wrench, the core lifting components gears and chains, the hand-operated chain that drives the lifting chain and the core safety device braking mechanism, the upper and lower hooks, and a gear transmission system.As a super lifting equipment producer, Baiyi’s HSH 2Tons lever hoist already sell all the world due to it’s best quality and services.

Send Inquiry

Product Description

A 2-ton lever hoist, also known as a "2T chain lever hoist," is a lightweight and efficient manual lifting tool. It primarily uses manual reciprocating lever operation, lever and gear principles to drive the internal mechanical structure, thereby lifting, lowering, pulling, or calibrating objects up to 2 tons (approximately 2000 kg) with minimal force. Its core features are a compact internal structure, light weight, easy portability, and no need for electricity, making it widely used in equipment installation, cargo lifting, line tension, accident rescue, and operations in remote, power-free environments.

Main Technical Parameters

1. Rated Lifting Capacity: 2000 kg (2 tons).

2. Standard Lifting Height: 1.5 m, 3 m, 6 m 10m,20m, etc. (single chain length). Chain length can be customized.

3. Hand-operated Force: Approximately 34-45 kgf, approximately 333-441 N.

4. Chain Specifications:

Load Chain	Usually Φ7mm (T(8) grade) or Φ8mm high-strength alloy steel chain.
Hand Zipper Chain	Usually Φ4mm or Φ5mm.
Safety Factor	Strictly complies with national standards; minimum breaking strength is usually more than 4 times the rated load.

2Tons Lever Hoist

How to use?

1. Must check before use:

Inspect the chain hook for deformation, rust, cracks, and wear.

Check the brake: under no-load, quickly pull the handle; there should be a clear "click" sound, and it should brake instantly. It should be sensitive and reliable during lifting.

Confirm that all components are securely connected, the safety latch is intact, and the chain is smoothly lubricated.

2. Operating Procedures:

Suspension: Securely and stably fasten the upper hook to a sturdy support structure capable of bearing the load.

Hook: Hang the load on the lower hook, ensuring a stable center of gravity and locking the safety latch.

Lifting: Move the direction control lever on the handle to the "UP" position, then repeatedly pull the handle.

Lowering: Move the direction control lever to the "DOWN" position and slowly and smoothly repeat the pull of the handle.

Stop: Stop pulling the lever; the brake will automatically lock, and the load will remain at its current position.

Unloading and Storage: After operation, remove the hoist and store it in a dry place.

Comparison Table: 2-Ton lever hoist vs. 1-Ton HSH lever hoist Hoist

Comparison Dimension	Advantages of a 2-Ton Hand Chain Hoist	Advantages of a 1-Ton Hand Chain Hoist
1. Lifting Capacity	★ Decisive Advantage • Double the Rated Load: Can safely lift, pull, or tension loads in the 1 to 2-ton range. • Larger Safety Margin: When lifting loads close to 1 ton, it has a 100% safety margin, resulting in much lower equipment stress and risk, making it more reliable.	• Only suitable for tasks under 1 ton. Use for loads exceeding 1 ton is strictly prohibited.
2. Safety & Durability	★ Structural Advantage • Stronger Key Components: Core parts like the load chain (typically Φ8mm), hooks, gears, and housing are designed for a 2-ton load, using more robust materials and larger dimensions. • More Wear and Impact Resistant: When handling the same load (e.g., 1 ton), as it is "over-spec'd" for the job, component stress is far below its design limits. This leads to slower wear, longer fatigue life, and higher tolerance for accidental overload (within limits).	• Components (e.g., Φ6mm or Φ7mm chain) are designed precisely but are more susceptible to wear and deformation under full or excessive load.
3. Versatility & Job Scope	★ Broader Application Range • "One Tool for Multiple Uses": A single 2-ton hoist can cover the needs of most small to medium equipment installation, maintenance, and moving tasks, making it a more universal choice for workshops and sites. • Handles Uncertainty: It is a safer and more conservative choice when the load weight is estimated imprecisely or may vary.	• Has a clear and single application scenario, used only for known, confirmed loads not exceeding 1 ton.
4. Procurement & Ownership	• Serves as a standard workshop fixture, reducing the need to purchase multiple hoists of different capacities due to capability shortages.	★ Economic & Portability Advantage • Lower Price: Typically 20%-30% cheaper than an equivalent brand's 2-ton model. • Lighter Weight: More compact and easier to carry and maneuver. Offers significant advantages for overhead work, in confined spaces, or for frequent mobile use.

FAQ

Q1: What should I do if the handle won't move for the 2T lever hoist?

A1: Check if it's overloaded; then check if the chain is jammed; finally, check if the internal mechanisms are lacking lubrication, rusted, or damaged by impurities.

Q2: Can two people work on the handle together?

A2: Absolutely not. The handle force of a lever hoist is scientifically calculated. Two people operating it can easily lead to instantaneous overload, damaging the hoist's internal gears or brakes.

Q3: What should I do if the chain is pulled to its limit?

A3: Stop operating immediately. A 2-ton hoist has a limit position; if this limit is exceeded, a model with a greater lifting height should be selected.

Q4: Can a lever hoist be used for horizontal pulling?

A4: Yes, but the method is important. The hoist's load-bearing axis must be in a straight line, and the hoist body and the object being pulled must be securely fixed. Horizontal use may affect its rated load; please strictly follow the instruction manual or consult customer service.
