10T VT Hand Chain Hoist

The 10T VT hand chain hoist is a manual lifting device producing by China supplier baiyi factory with a rated lifting capacity of 10 tons. The entire machine features an alloy steel shell, a G80-grade lifting chain, and a double ratchet friction brake. The lifting and lowering of heavy objects is achieved by manually pulling the chain and using gear transmission. It has a compact structure, is lightweight, safe and reliable, is easy to carry, and does not require an external power source. It is suitable for use in factories, mines, construction sites, warehouses, and in narrow spaces without power supply, etc.

Send Inquiry

Product Description

The 10T VT hand chain hoist manufactured by Hebei Baiyi Lifting Machinery Equipment Manufacturing Co., Ltd. is an important type of purely manual medium-sized lifting equipment in the VT hoist series. It primarily relies on manual operation by pulling the hand chain, which transmits force through a gear set to the lifting chain, thereby raising and lowering the load. Because it requires no external force, it is ideal for lifting operations in scenarios without power supply.

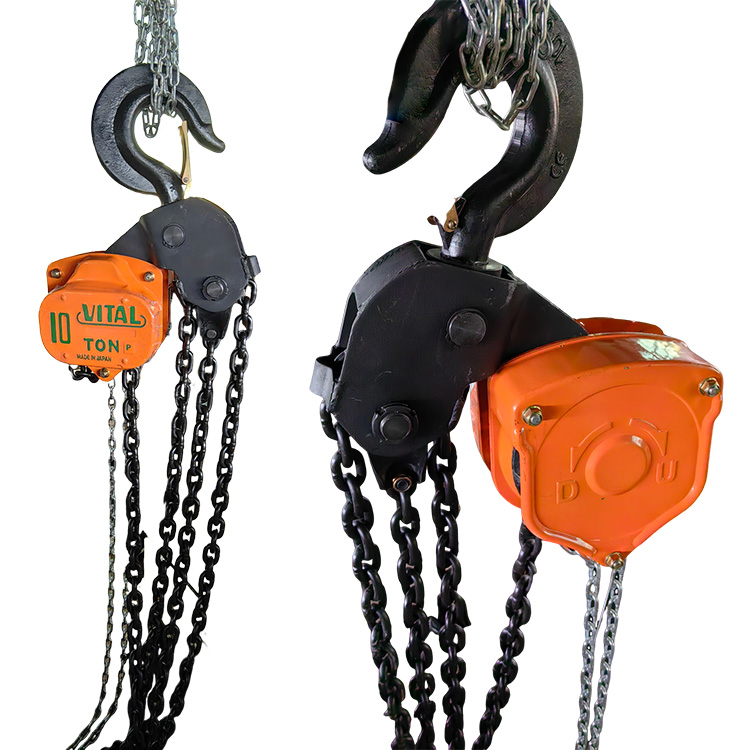

10T VT hand chain hoist

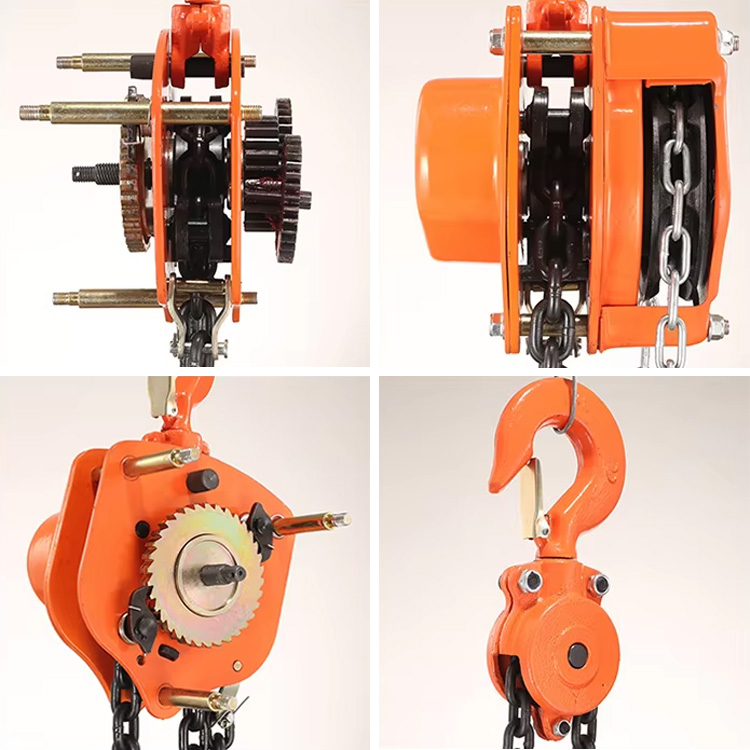

10T VT hand chain hoists

Specification

Parameter Item	Specifictions
Model	HAZ-VT10(VT 10T)
Rated Load Capacity	10T(10,000kg)
Standard Lifting Height	3m(customizable:2.5/4/5/6/9m)
Test Load	12.5T(1.25 times rated load)
Full-Load Hand Pull Force	≈410N
Number of Lifting Chain Rows	4 rows
Lifting Chain Specification	G80 high-strength alloy steel,φ10mm
Minimum Distance Between Hooks	700mm
Net Weight(3m standard)	≈72kg
Working Duty Class	M3 (light to medium duty, intermittent operation)
Ambient Temperature	-20°C~+60°C
Housing Material	Alloy steel, reinforced plastic coating
Braking Type	Ratchet friction disc type (load self-locking)

Safety Operating Procedures:

Before use, please ensure that the 10T VT hand chain hoist is marked with "10T" and the certificate is intact. Check the hook and chain to ensure there are no cracks, rust, bending, deformation, and the wear should not exceed 10%.

Test pulling the chain, the forward and backward rotation should be smooth without abnormal sounds, and the braking function should be normal. The support points must be vertical and firmly fixed. Do not perform inclined lifting or suspension operations.

When lifting, securely attach the upper hook to the support point, and accurately hook the lower hook onto the center position of the heavy object. When pulling the chain, maintain a uniform and steady speed, lift the heavy object clockwise and lower it counterclockwise.

No one is allowed to stand under the load.

The brake should automatically lock when the load is suspended, preventing slippage.

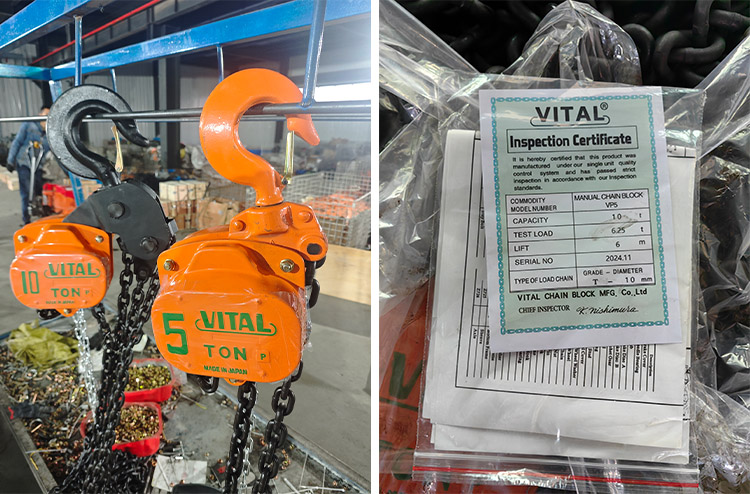

10T VT hand chain hoist

Advantages

Item	VT 10T Manual	10T Electric	Key Advantages of VT Manual
Power	Human-powered	380V motorized	No power needed
Size/Weight	Compact (-72kg)	Bulky (>150kg)	Lighter & portable
Speed	Slow (manual control)	Fast(automatic)	Precise positioning
Operation	Hand-pull	Button/remote	No electric shock risk
Cost	Low	High	Lower investment
Maintenance	Simple	Complex	Easier to maintain
Environment	All conditions	Needs protection	Better for harsh environments
