Stainless Steel Hand Winch

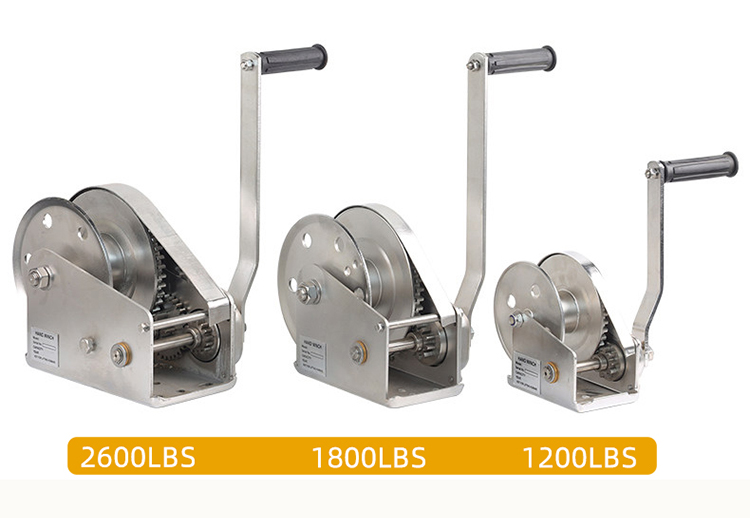

The stainless steel manual winch comes in three sizes: 1200LB, 1800LB, and 2600LB.

1200 lb model: Weight: 3.7 kg, Wire rope: φ4mm×30m, Transmission ratio: 4:1, Rated load: 150 kg

1800 lb model: Weight: 8.1 kg, Wire rope: φ5mm×30m, Transmission ratio: 5:1, Rated load: 300 kg

2600 lb model: Weight: 10.3 kg, Wire rope: φ6mm×30m, Transmission ratio: 10:1, Rated load: 500 kg

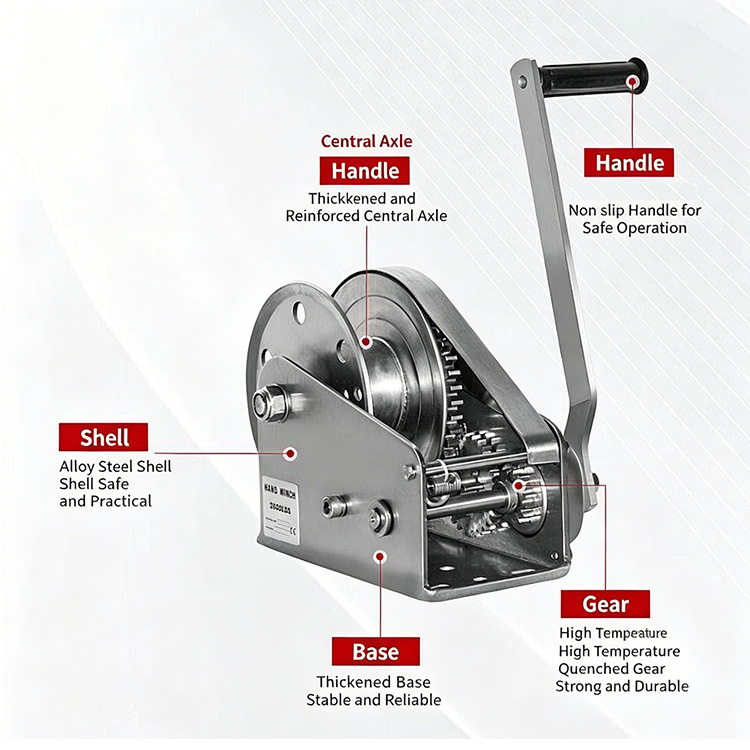

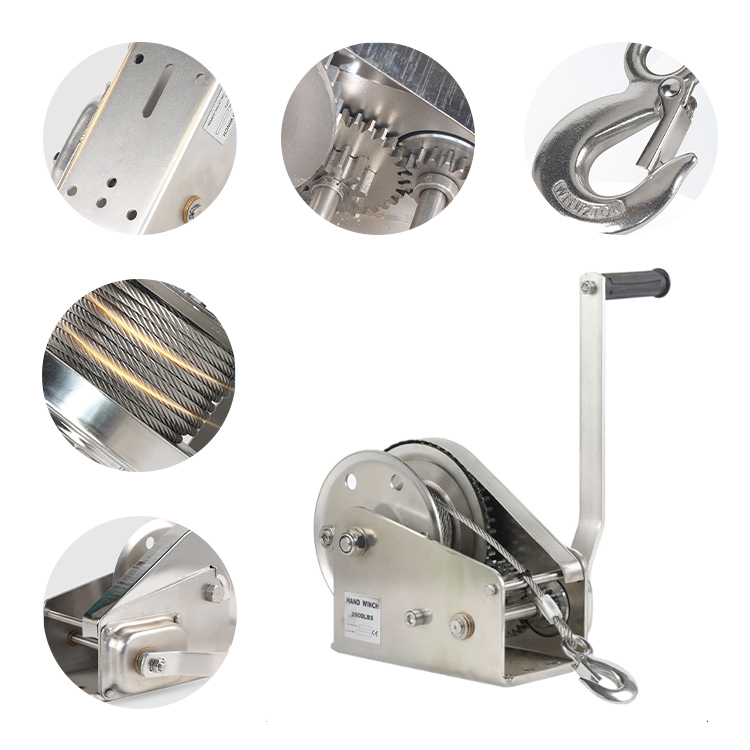

stainless steel hand winch Product Details

1. Bidirectional self-locking device, allowing for easy self-locking through manual operation, saving effort and ensuring safety.

2. Large-capacity drum, equipped with 304 stainless steel solid steel wire rope, featuring stronger load-bearing capacity and more reliable lifting performance.

3. Thickened base for flexible installation, sturdy and durable, with multiple holes for easy installation.

4. Quick lifting, using a precisely strengthened gear design to ensure smoother meshing, with powerful operation.

5. 304 stainless steel hook, equipped with self-locking anti-detachment tongue, safer to use and easier for lifting.

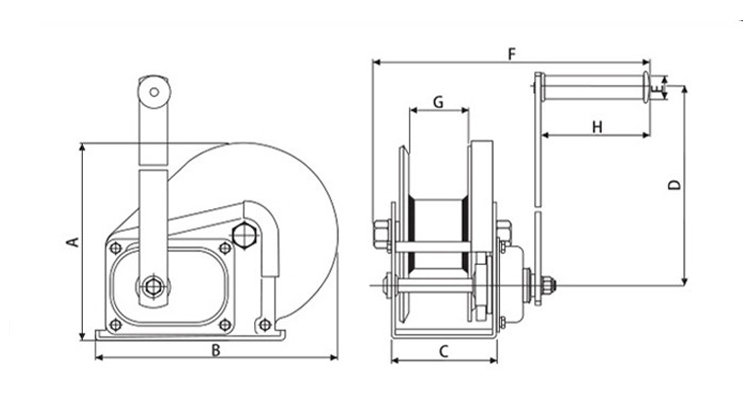

Product parameters

Precautions for using stainless steel hand winches

1. Overloading is strictly prohibited.

2. Do not use as a lifting device, especially for carrying personnel.

3. Do not use in environments with sudden recoil.

4. When the winch is in operation, do not touch the wire rope, drum, or gears. Cover the wire rope with a soft fabric during operation to prevent injury from the enormous recoil force in case of sudden breakage.

5. Ensure at least five turns of wire rope on the drum during operation to prevent slippage.

6. Keep the wire rope as perpendicular to the drum as possible during operation to prevent wear on the drum's edge.

7. When pulling heavy loads, it is recommended to use a movable pulley to reduce the hand cranking effort.

8.Before using a stainless steel hand winch, apply machine oil to the gears and drum bushings to reduce effort, increase wear resistance, and extend service life.

Hebei Shengyu Lifting's stainless steel hand winches are suitable for various environments and can be equipped with various supports for hoisting. The self-locking hand-cranked winch is simple to use and easy to carry. For inquiries, please call our hotline at 15133220087 (WeChat ID is the same), or email us at kate@syhoist.com. Welcome to contact us!
