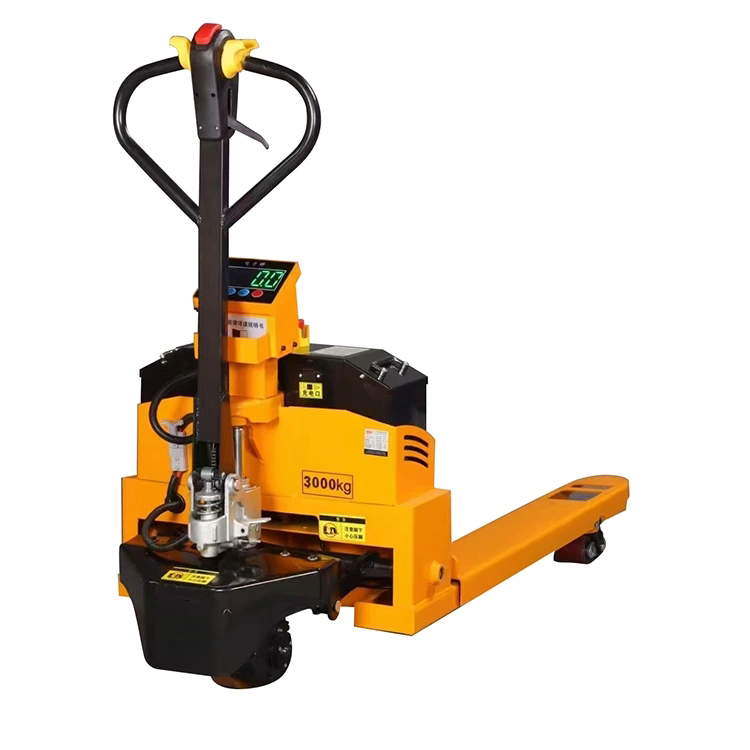

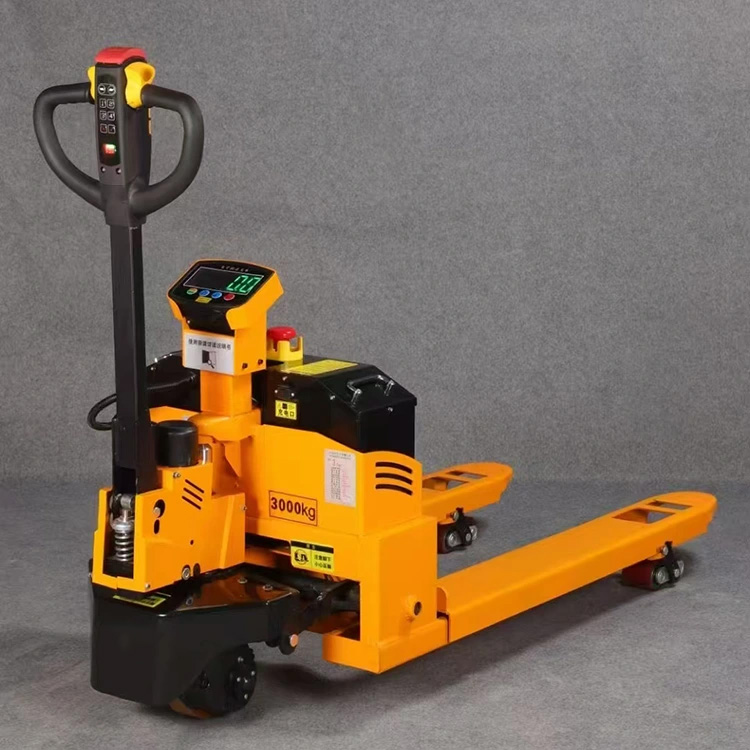

Manual Pallet Truck With Scale

Hebei BaiYi Hoisting Machinery Manufacturing Co., Ltd is a professional manufacturer for lifting and hoisting machines， Manual pallet truck with scale is our flagship product. It not only can lifting goods also can test goods weight in the same time. So it very convenient for supermarket, factory, warehouse and some other place. Manual Pallet Truck With Scale use advanced producing technology test with strict quality inspection system. It not only have competitive price also have best quality.

Send Inquiry

Product Description

BaiYi durable manual pallet truck with scale refers to a weighing system consisting of a high-precision load cell and an intelligent digital display instrument based on a small manual hydraulic lift truck. The electronic forklift scale is a hydraulic handling vehicle scale that integrates all the functions of a general pallet truck with cargo handling and metering and weighing functions. The data of each weighing can be automatically displayed. The unique mechanical structure of the manual pallet truck with scale has the characteristics of anti-overload, partial load and overturning. The minimum ground clearance (80mm) allows the manual pallet truck with scale buyer to use it like a normal forklift.

Load capacity	2000kg
Body width	550/685mm
Fork length	1200MM
Min height	85mm
Max height	200mm
Steering wheel size	180mm
Loading wheel size	80mm

Product Features：

Scale Truck

- The length of the fork arm can be selected, and the short fork arm can be selected;

- No recalibration is required when replacing instruments;

- Built-in 4 high-precision sensors, the error can be up to 0.1%.

- The bottom of the fork arm is sealed to protect the sensor and wiring from damage.

- Equipped with a cast oil pump with a yoke thickness of 4 mm.

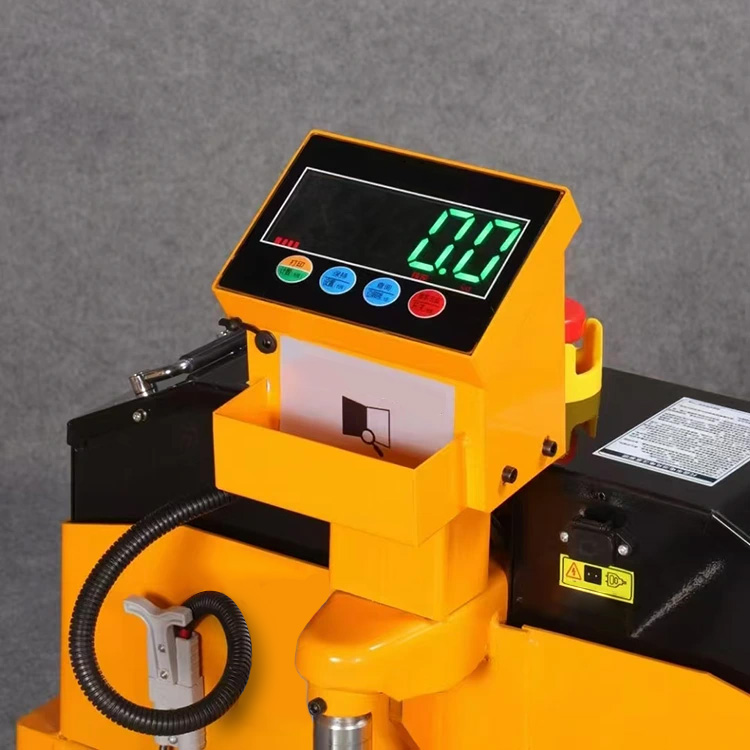

- The monitor is easy to install and remove.

- Shipping with screws and tools

- There are many colors to choose from.

- Stainless steel material selection

Applications:

Warehouses and Logistics Centers

Loading/Unloading: Unloading goods for shipment. Short-distance movement of goods between racks and different work areas.

Order Picking: Moving goods from storage locations to sorting or packaging areas.

Rack Compatibility: Working in conjunction with pallet racking for storage and retrieval operations.

Supermarkets and Retail Stores

Stock Replenishment: Transporting full pallets of beverages, food, groceries, and other goods from the backroom to the sales floor for stocking shelves and so on.
